Overview
The NLV74VHC04DTR2G, produced by onsemi, is an advanced high-speed CMOS inverter fabricated with silicon gate CMOS technology. It is designed to achieve high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the low power dissipation characteristic of CMOS devices. The internal circuit includes three stages, including a buffer output, which provides high noise immunity and stable output. This component is part of the VHC (High-Speed CMOS) logic family and is suitable for a wide range of applications requiring high speed and low power consumption.
Key Specifications
| Parameter | Value |
|---|---|
| Operating Voltage Range | 2V to 5.5V |
| Propagation Delay (t_PD) | 3.8ns (Typ) at V_CC = 5V |
| Power Dissipation (I_CC) | 2µA (Max) at T_A = 25°C |
| Noise Immunity (V_NIH, V_NIL) | 28% V_CC |
| Output Low Voltage (V_OLP) | 0.8V (Max) |
| ESD Performance | HBM > 2000V; Machine Model > 200V |
| Latchup Performance | Exceeds 300mA |

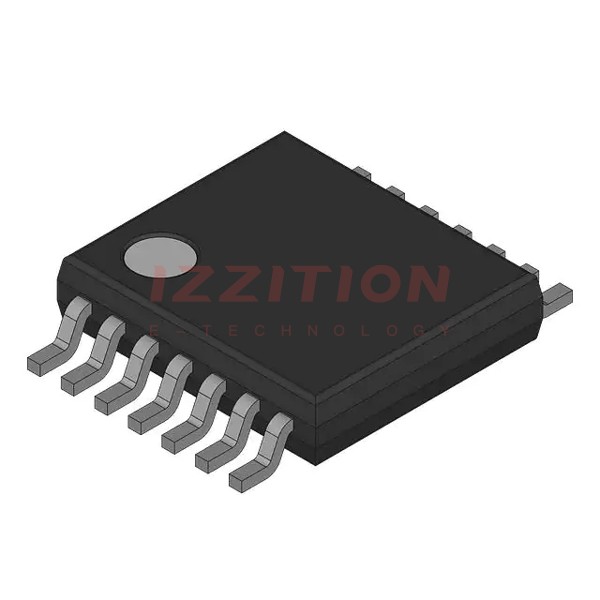

| Package Type | TSSOP-14 WB |
| Temperature Range | -40°C to 125°C |
Key Features
- High speed operation with propagation delay of 3.8ns (Typ) at V_CC = 5V
- Low power dissipation with I_CC of 2µA (Max) at T_A = 25°C
- High noise immunity with V_NIH and V_NIL of 28% V_CC
- Power down protection provided on inputs
- Balanced propagation delays
- Pin and function compatible with other standard logic families
- ESD performance: HBM > 2000V; Machine Model > 200V
- Latchup performance exceeds 300mA
- Available in Pb-free packages
Applications
The NLV74VHC04DTR2G is suitable for various applications across different industries, including automotive, communications, computing, consumer electronics, industrial, medical, and aerospace/defense. It is particularly useful in systems that require high-speed logic operations with low power consumption, such as in digital signal processing, data transmission, and control circuits.
Q & A
- What is the operating voltage range of the NLV74VHC04DTR2G?
The operating voltage range is from 2V to 5.5V. - What is the typical propagation delay of the NLV74VHC04DTR2G at V_CC = 5V?
The typical propagation delay is 3.8ns. - How much power does the NLV74VHC04DTR2G dissipate at 25°C?
The maximum power dissipation is 2µA at T_A = 25°C. - What is the noise immunity of the NLV74VHC04DTR2G?
The noise immunity is 28% V_CC. - Is the NLV74VHC04DTR2G available in Pb-free packages?
Yes, it is available in Pb-free packages. - What is the ESD performance of the NLV74VHC04DTR2G?
The ESD performance is HBM > 2000V; Machine Model > 200V. - What is the latchup performance of the NLV74VHC04DTR2G?
The latchup performance exceeds 300mA. - In what package type is the NLV74VHC04DTR2G available?
The NLV74VHC04DTR2G is available in TSSOP-14 WB package. - What are the typical applications of the NLV74VHC04DTR2G?
It is used in automotive, communications, computing, consumer electronics, industrial, medical, and aerospace/defense applications. - Does the NLV74VHC04DTR2G have power down protection on inputs?
Yes, it has power down protection provided on inputs.
