Overview

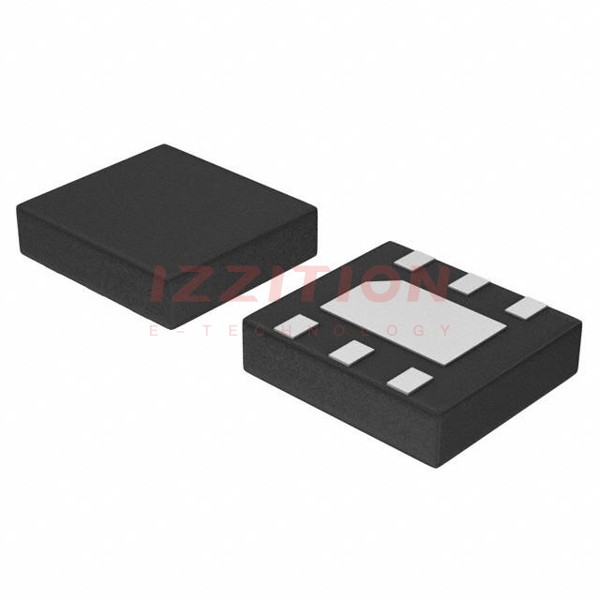

The NCV451AMNWTBG is a 3A ultra-small low RON and controlled load switch produced by onsemi. This component is designed to optimize battery life and enhance the autonomy of portable devices. It features a MOSFET controlled by an external logic pin, allowing for precise control over power distribution.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Continuous Current | 3 | A |
| On-Resistance (RON) | Typically 20 mΩ | mΩ |
| Input Logic Level | CMOS Compatible | - |
| Operating Voltage Range | 1.1 to 5.5 | V |
| Package Type | TSOP-6 | - |
| Operating Temperature Range | -40 to 125 | °C |
Key Features
- Low On-Resistance (RON): Typically 20 mΩ, minimizing power losses and heat generation.
- CMOS Compatible Input Logic: Easy integration with standard logic circuits.
- Ultra-Small Package: TSOP-6 package, ideal for space-constrained designs.
- Wide Operating Voltage Range: From 1.1V to 5.5V, making it versatile for various applications.
- High Continuous Current Capability: Up to 3A, suitable for powering demanding loads.
Applications
- Portable Electronics: Smartphones, tablets, and other battery-powered devices where low power consumption and high efficiency are crucial.
- Wearable Devices: Smartwatches, fitness trackers, and other wearables that require compact and efficient power management.
- IoT Devices: Internet of Things devices that need reliable and low-power switching solutions.
- Automotive Systems: For use in automotive electronics where robust and efficient power switching is required.
Q & A
- What is the maximum continuous current rating of the NCV451AMNWTBG?
The maximum continuous current rating is 3A.
- What is the typical on-resistance (RON) of the NCV451AMNWTBG?
The typical on-resistance is 20 mΩ.
- What is the operating voltage range of the NCV451AMNWTBG?
The operating voltage range is from 1.1V to 5.5V.
- What type of package does the NCV451AMNWTBG come in?
The NCV451AMNWTBG comes in a TSOP-6 package.
- Is the NCV451AMNWTBG suitable for high-temperature environments?
Yes, it operates over a temperature range of -40°C to 125°C.
- What type of logic input does the NCV451AMNWTBG support?
The NCV451AMNWTBG supports CMOS compatible input logic.
- Can the NCV451AMNWTBG be used in automotive applications?
Yes, it is suitable for use in automotive systems due to its robust and efficient power switching capabilities.
- How does the NCV451AMNWTBG optimize battery life in portable devices?
It optimizes battery life by minimizing power losses through its low on-resistance and controlled switching.
- Is the NCV451AMNWTBG available for immediate shipment?
Yes, it is available for immediate shipment from various suppliers like Digi-Key and Mouser Electronics.
- Where can I find detailed specifications for the NCV451AMNWTBG?
Detailed specifications can be found in the datasheet available on the onsemi website, Digi-Key, Mouser Electronics, and other authorized distributors.
