NCV4276DT33RKG
  • Share:

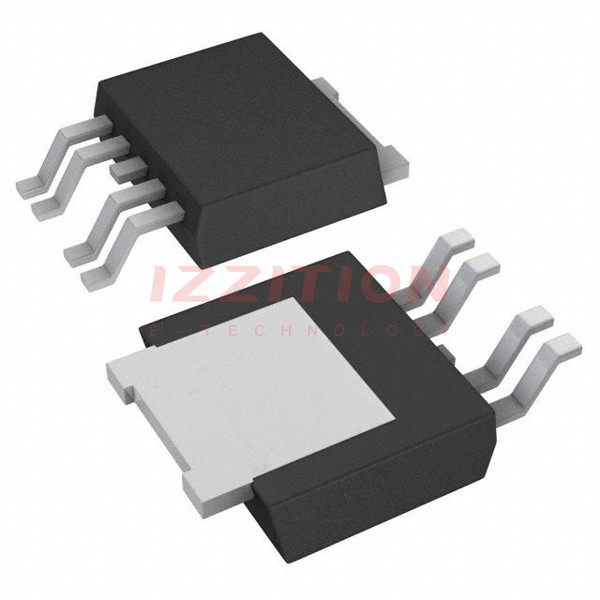

onsemi NCV4276DT33RKG

Manufacturer No:
NCV4276DT33RKG
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
IC REG LINEAR 3.3V 400MA DPAK-5
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The onsemi NCV4276DT33RKG is a linear voltage regulator integrated circuit (IC) designed to provide a stable and reliable voltage output in harsh environments, particularly in automotive applications. This device is part of the NCV4276 family, known for its low dropout voltage and high current capability. The NCV4276DT33RKG offers a fixed output voltage of 3.3V and can supply up to 400 mA of output current, making it suitable for a variety of power management needs.

Key Specifications

AttributeValueUnit
Input Voltage (Min)-42V
Input Voltage (Max)45V
Output Voltage (Fixed)3.3V
Dropout Voltage (Max)500 mV
Output Current (Max)400 mA
Operating Temperature Range-50°C to +150°C
Regulator TopologyFixed
Quiescent Current10 µA
Number of OutputsSingle
Load Regulation20 mV
Current Limit400 mA
Line Regulation15 mV
Package StyleTO-252-5 (DPAK5)
Mounting MethodSurface Mount

Key Features

  • Low Dropout Voltage: The NCV4276DT33RKG features a maximum dropout voltage of 500 mV, ensuring efficient power regulation.
  • High Output Current: Capable of supplying up to 400 mA of output current, making it suitable for various power-intensive applications.
  • Wide Operating Temperature Range: Operates within a temperature range of -50°C to +150°C, making it robust for harsh environments.
  • Current Limit and Thermal Shutdown Protection: Protected by current limit and thermal shutdown to prevent damage during overloads and extreme temperatures.
  • Bandgap Reference: Uses a bandgap reference for temperature-stable output voltage.

Applications

The NCV4276DT33RKG is primarily designed for use in automotive and industrial applications where reliable and stable voltage regulation is crucial. It is suitable for powering various electronic systems, including infotainment systems, sensors, and other automotive electronics that require a stable 3.3V supply.

Q & A

  1. What is the output voltage of the NCV4276DT33RKG?
    The output voltage is fixed at 3.3V.
  2. What is the maximum output current of the NCV4276DT33RKG?
    The maximum output current is 400 mA.
  3. What is the dropout voltage of the NCV4276DT33RKG?
    The maximum dropout voltage is 500 mV.
  4. What is the operating temperature range of the NCV4276DT33RKG?
    The operating temperature range is -50°C to +150°C.
  5. What type of protection does the NCV4276DT33RKG have?
    The device is protected by current limit and thermal shutdown.
  6. What is the package style of the NCV4276DT33RKG?
    The package style is TO-252-5 (DPAK5).
  7. How is the NCV4276DT33RKG mounted?
    The device is surface mounted.
  8. What is the quiescent current of the NCV4276DT33RKG?
    The quiescent current is 10 µA.
  9. Is the NCV4276DT33RKG suitable for automotive applications?
    Yes, it is designed for use in harsh automotive environments.
  10. What type of reference does the NCV4276DT33RKG use?
    The device uses a bandgap reference for temperature-stable output voltage.

Product Attributes

Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):45V
Voltage - Output (Min/Fixed):3.3V
Voltage - Output (Max):-
Voltage Dropout (Max):1.332V @ 250mA
Current - Output:400mA
Current - Quiescent (Iq):220 µA
Current - Supply (Max):35 mA
PSRR:60dB (100Hz)
Control Features:-
Protection Features:Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature:-40°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package:DPAK-5
0 Remaining View Similar

In Stock

-
68

Please send RFQ , we will respond immediately.

Same Series
NCV4276DSADJR4G
NCV4276DSADJR4G
IC REG LIN POS ADJ 400MA D2PAK-5
NCV4276ADSADJG
NCV4276ADSADJG
IC REG LIN POS ADJ 400MA D2PAK-5
NCV4276ADTADJRKG
NCV4276ADTADJRKG
IC REG LIN POS ADJ 400MA DPAK-5
NCV4276DS18
NCV4276DS18
IC REG LINEAR 1.8V 400MA D2PAK-5
NCV4276DS18R4
NCV4276DS18R4
IC REG LINEAR 1.8V 400MA D2PAK-5
NCV4276DS25
NCV4276DS25
IC REG LINEAR 2.5V 400MA D2PAK-5
NCV4276DS33
NCV4276DS33
IC REG LINEAR 3.3V 400MA D2PAK-5
NCV4276DT50RK
NCV4276DT50RK
IC REG LINEAR 5V 400MA DPAK-5
NCV4276DS50G
NCV4276DS50G
IC REG LINEAR 5V 400MA D2PAK-5
NCV4276ADT33RKG
NCV4276ADT33RKG
IC REG LINEAR 3.3V 400MA DPAK-5
NCV4276DS33R4G
NCV4276DS33R4G
IC REG LINEAR 3.3V 400MA D2PAK-5
NCV4276DT50RKG
NCV4276DT50RKG
IC REG LINEAR 5V 400MA DPAK-5

Similar Products

Part Number NCV4276DT33RKG NCV4274DT33RKG NCV4276ADT33RKG NCV4276BDT33RKG NCV4276CDT33RKG NCV4276DT33RK
Manufacturer onsemi onsemi onsemi onsemi onsemi onsemi
Product Status Obsolete Obsolete Obsolete Not For New Designs Active Obsolete
Output Configuration Positive Positive Positive Positive Positive Positive
Output Type Fixed Fixed Fixed Fixed Fixed Fixed
Number of Regulators 1 1 1 1 1 1
Voltage - Input (Max) 45V 40V 45V 45V 45V 45V
Voltage - Output (Min/Fixed) 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V
Voltage - Output (Max) - - - - - -
Voltage Dropout (Max) 1.332V @ 250mA 1.33V @ 250mA - - - 1.332V @ 250mA
Current - Output 400mA 400mA 400mA 400mA 400mA 400mA
Current - Quiescent (Iq) 220 µA 250 µA 200 µA 200 µA 200 µA 220 µA
Current - Supply (Max) 35 mA 45 mA 35 mA 35 mA 35 mA 35 mA
PSRR 60dB (100Hz) 60dB (100Hz) 70dB (100Hz) 70dB (100Hz) 70dB (100Hz) 60dB (100Hz)
Control Features - - - Enable - -
Protection Features Over Temperature, Reverse Polarity, Short Circuit Over Temperature, Reverse Polarity, Short Circuit Over Temperature, Reverse Polarity, Short Circuit Over Temperature, Reverse Polarity, Short Circuit Over Temperature, Reverse Polarity, Short Circuit Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature -40°C ~ 150°C -40°C ~ 150°C (TJ) -40°C ~ 150°C -40°C ~ 150°C -40°C ~ 150°C -40°C ~ 150°C
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case TO-252-5, DPak (4 Leads + Tab), TO-252AD TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-5, DPak (4 Leads + Tab), TO-252AD TO-252-5, DPak (4 Leads + Tab), TO-252AD TO-252-5, DPak (4 Leads + Tab), TO-252AD TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package DPAK-5 DPAK DPAK-5 DPAK-5 DPAK-5 DPAK-5
