NCS2632DTBR2G
  • Share:

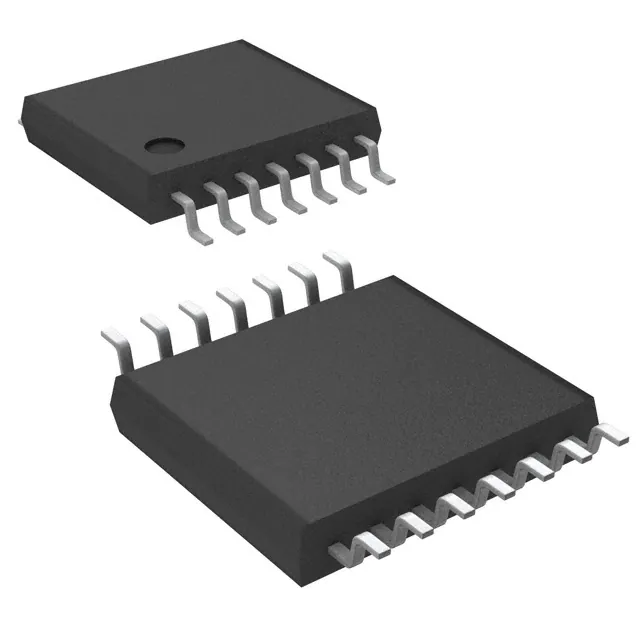

onsemi NCS2632DTBR2G

Manufacturer No:
NCS2632DTBR2G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
IC AMP CLASS AB STEREO 14TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NCS2632DTBR2G is a pop-free stereo line driver produced by onsemi. This component utilizes ON Semiconductor's patented NOCAP technology, which eliminates the need for external DC-blocking capacitors, thereby reducing component count and improving overall system reliability. The NCS2632 is designed to deliver high-fidelity audio with minimal distortion and noise.

Key Specifications

Parameter Value
Package Type TSSOP-14 (Pb-Free)
Supply Voltage 2.7V to 5.5V
Output Voltage (Vrms) 3 Vrms
Signal-to-Noise Ratio (SNR) 105 dB
Power Supply Rejection Ratio (PSRR) Typically 90 dB
Operating Temperature Range -40°C to 85°C
Packaging 2500 / Tape & Reel

Key Features

  • NOCAP Technology: Eliminates the need for external DC-blocking capacitors, reducing component count and improving system reliability.
  • Pop-Free Operation: Ensures that there are no audible transients during power-up or power-down.
  • High Fidelity Audio: Offers a high signal-to-noise ratio of 105 dB, providing clear and distortion-free audio.
  • High PSRR: Typical power supply rejection ratio of 90 dB, minimizing noise from the power supply.
  • Compact Packaging: Available in TSSOP-14 package, suitable for space-constrained applications.

Applications

  • Portable Audio Devices: Ideal for use in portable audio equipment such as MP3 players, smartphones, and tablets.
  • Consumer Electronics: Suitable for home audio systems, car audio systems, and other consumer electronic devices.
  • Industrial Audio Systems: Can be used in industrial audio applications where high-quality audio and reliability are crucial.

Q & A

  1. What is the primary function of the NCS2632DTBR2G?

    The NCS2632DTBR2G is a pop-free stereo line driver designed to deliver high-fidelity audio signals.

  2. What is NOCAP technology, and how does it benefit the NCS2632DTBR2G?

    NOCAP technology eliminates the need for external DC-blocking capacitors, reducing component count and improving system reliability.

  3. What is the signal-to-noise ratio (SNR) of the NCS2632DTBR2G?

    The SNR of the NCS2632DTBR2G is 105 dB, offering high fidelity audio sound.

  4. What is the typical power supply rejection ratio (PSRR) of the NCS2632DTBR2G?

    The typical PSRR is 90 dB, which minimizes noise from the power supply.

  5. What is the operating temperature range of the NCS2632DTBR2G?

    The operating temperature range is -40°C to 85°C.

  6. In what package is the NCS2632DTBR2G available?

    The NCS2632DTBR2G is available in a TSSOP-14 package.

  7. What are some common applications for the NCS2632DTBR2G?

    Common applications include portable audio devices, consumer electronics, and industrial audio systems.

  8. Is the NCS2632DTBR2G lead-free?
  9. How many units are typically supplied per reel?

    2500 units are typically supplied per reel.

  10. Where can I find detailed specifications for the NCS2632DTBR2G?

    Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Digi-Key and Mouser Electronics.

Product Attributes

Type:Class AB
Output Type:2-Channel (Stereo)
Max Output Power x Channels @ Load:-
Voltage - Supply:2.2V ~ 5.5V
Features:Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
Mounting Type:Surface Mount
Operating Temperature:-40°C ~ 85°C (TA)
Supplier Device Package:14-TSSOP
Package / Case:14-TSSOP (0.173", 4.40mm Width)
0 Remaining View Similar

In Stock

$0.99
646

Please send RFQ , we will respond immediately.
