Overview

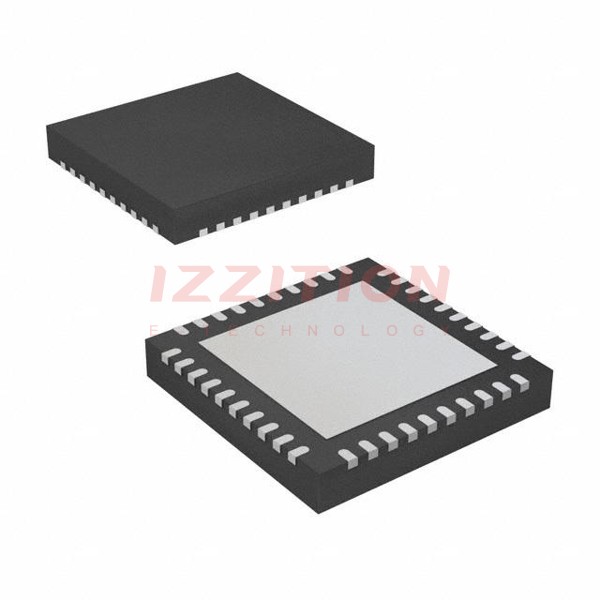

The NCN5130MNTWG, produced by onsemi, is a receiver-transmitter IC designed for use in KNX twisted pair networks (KNX TP1-256). This IC integrates both the Physical (PHY) and Media Access Control (MAC) layers, enabling it to handle the transmission and reception of data on the bus. It generates stabilized voltages from the unregulated bus voltage to power both its own operations and external devices, such as microcontrollers and other components in a building network.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| KNX Transmitter Output Voltage (VTXO) | -0.3 | 45 | V | |
| KNX Transmitter Output Current (ITXO) | 250 | mA | ||
| Bus Voltage (VBUS1) | 20 | 33 | V | |
| Digital and Analog Supply Voltage (VDDD, VDDA) | 3.13 | 3.47 | V | |
| Input Voltage DC-DC Converter 1 and 2 (VIN) | 33 | V | ||
| Ambient Temperature (TA) | -40 | 105 | °C | |
| Junction Temperature (TJ) | -40 | 125 | °C | |
| Bus Current Consumption (IBUS1) | 2.00 - 4.40 | mA |
Key Features
- 9600 baud KNX communication speed
- Supervision of KNX bus voltage and current
- Supports bus current consumption up to 40 mA
- High-efficient DC-DC converters:
- 3.3 V fixed
- 1.2 V to 21 V selectable
- Control and monitoring of power regulators
- Linear 20 V regulator
- Buffering of sent data frames (extended frames supported)
- Selectable UART or SPI interface to host controller
- Selectable UART and SPI baud rate to host controller
- Optional CRC on UART to the host
- Optional received frame-end with MARKER service
- Optional direct analog signaling to host
- Operates with industry-standard low-cost 16 MHz quartz
- Generates clock of 8 or 16 MHz for external devices
- Auto acknowledge (optional)
- Auto polling (optional)
- Temperature monitoring
- Extended operating temperature range: -40°C to +105°C
- Pb-free and RoHS compliant
Applications
The NCN5130MNTWG is designed for use in various building automation and control systems, including but not limited to:
- KNX twisted pair networks (KNX TP1-256)
- Connection of actuators, sensors, microcontrollers, and switches
- Building network systems requiring reliable data transmission and reception
- Automation and control systems in residential, commercial, and industrial settings
Q & A
- What is the primary function of the NCN5130MNTWG IC?
The NCN5130MNTWG is a receiver-transmitter IC designed for use in KNX twisted pair networks, handling data transmission and reception on the bus.
- What are the supported communication speeds for the NCN5130MNTWG?
The NCN5130MNTWG supports a 9600 baud KNX communication speed.
- What types of interfaces does the NCN5130MNTWG support for communication with the host controller?
The NCN5130MNTWG supports both UART and SPI interfaces to the host controller, with selectable baud rates.
- What is the operating temperature range of the NCN5130MNTWG?
The NCN5130MNTWG operates within an extended temperature range of -40°C to +105°C.
- Is the NCN5130MNTWG Pb-free and RoHS compliant?
Yes, the NCN5130MNTWG is Pb-free and RoHS compliant.
- What types of power regulators does the NCN5130MNTWG support?
The NCN5130MNTWG supports high-efficient DC-DC converters, including a 3.3 V fixed output and a 1.2 V to 21 V selectable output.
- Can the NCN5130MNTWG generate clocks for external devices?
Yes, the NCN5130MNTWG can generate clocks of 8 or 16 MHz for external devices.
- Does the NCN5130MNTWG support auto acknowledge and auto polling features?
Yes, the NCN5130MNTWG supports optional auto acknowledge and auto polling features.
- What is the maximum bus current consumption supported by the NCN5130MNTWG?
The NCN5130MNTWG supports bus current consumption up to 40 mA.
- How does the NCN5130MNTWG handle bus voltage supervision?
The NCN5130MNTWG supervises the KNX bus voltage and current, ensuring safe coupling to and decoupling from the bus.
- Can the NCN5130MNTWG buffer sent data frames?
Yes, the NCN5130MNTWG can buffer sent data frames, including extended frames.
