Overview

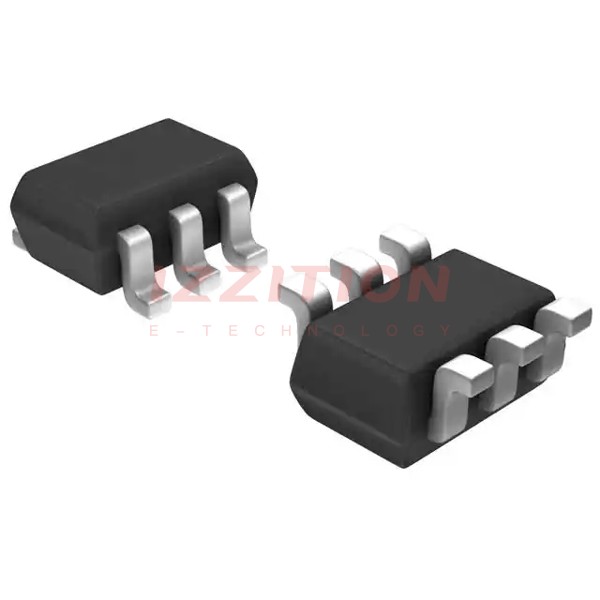

The NC7WZU04P6X, produced by onsemi, is a dual unbuffered inverter from the Ultra High Speed Series of TinyLogic. This component is packaged in a space-saving SC−88 6−lead package, making it ideal for applications where size is a critical factor. The device is designed using advanced CMOS technology, ensuring ultra-high speed with high output drive and low static power dissipation over a broad VCC operating range of 1.65 V to 5.5 V.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage (VCC) | 1.65 | 5.5 | V | |
| Input Voltage (VIN) | 0 | 5.5 | V | |
| Output Voltage (VOUT) | 0 | VCC + 0.5 | V | |
| Propagation Delay (tPLH, tPHL) at 5 V VCC, CL = 15 pF | 9.8 | 11.0 | ns | |
| High-Level Input Voltage (VIH) at 3.0 to 5.5 V VCC | 0.8 VCC | V | ||
| Low-Level Input Voltage (VIL) at 3.0 to 5.5 V VCC | 0.2 VCC | V | ||
| High-Level Output Voltage (VOH) at IOH = −100 μA | 0.08 VCC | V | ||
| Quiescent Supply Current (ICC) at 5 V VCC, TA = 25°C | 1.0 μA | μA | ||
| Operating Temperature (TA) | −40 | +85 | °C |
Key Features
- Space-saving SC−88 6−lead package and ultra-small MicroPak™ leadless packages.
- Unbuffered for crystal oscillator and analog applications.
- Balanced output drive: ±32 mA at 4.5 V VCC.
- Broad VCC operating range: 1.65 V to 5.5 V.
- Low quiescent power: ICC < 1 μA at 5 V VCC, TA = 25°C.
- Pb-free, halogen-free/BFR-free, and RoHS compliant.
Applications
The NC7WZU04P6X is particularly suited for applications requiring high speed and low power consumption, such as:
- Crystal oscillators.
- Analog circuits.
- High-speed digital logic circuits.
- Portable and battery-powered devices.
- General-purpose logic applications where space is limited.
Q & A
- What is the operating voltage range of the NC7WZU04P6X?
The NC7WZU04P6X operates over a voltage range of 1.65 V to 5.5 V. - What is the typical propagation delay of the NC7WZU04P6X at 5 V VCC and 15 pF load?
The typical propagation delay is around 9.8 to 11.0 ns. - What are the input voltage limits for the NC7WZU04P6X?
The input voltage can tolerate up to 5.5 V independent of the VCC operating voltage. - What is the maximum output current of the NC7WZU04P6X?
The maximum output current is ±50 mA. - Is the NC7WZU04P6X RoHS compliant?
Yes, the NC7WZU04P6X is Pb-free, halogen-free/BFR-free, and RoHS compliant. - What is the thermal resistance of the SC−88 package?
The thermal resistance (JA) for the SC−88 package is approximately 377 °C/W. - What are the recommended operating temperatures for the NC7WZU04P6X?
The device operates over a temperature range of −40°C to +85°C. - How much quiescent supply current does the NC7WZU04P6X consume at 5 V VCC and 25°C?
The quiescent supply current is less than 1 μA. - What types of packages are available for the NC7WZU04?
The device is available in SC−88 and MicroPak™ leadless packages. - What are the key applications for the NC7WZU04P6X?
The key applications include crystal oscillators, analog circuits, high-speed digital logic circuits, and portable devices.
