Overview
The NC7WV07P6X is a dual buffer integrated circuit from ON Semiconductor's Ultra Low Power-A (ULP-A) series of TinyLogic®. This device is designed for low-power applications and features open-drain outputs. It operates within a voltage range of 0.9 V to 3.6 V, making it versatile for various electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Buffers | 2 |
| Output Type | Open-Drain |
| Operating Voltage (VCC) | 0.9 V to 3.6 V |
| Propagation Delay (tPD) at 3.3 V | 1.6 ns (Typ) |
| Input/Output Over-Voltage Tolerance | Up to 3.6 V |

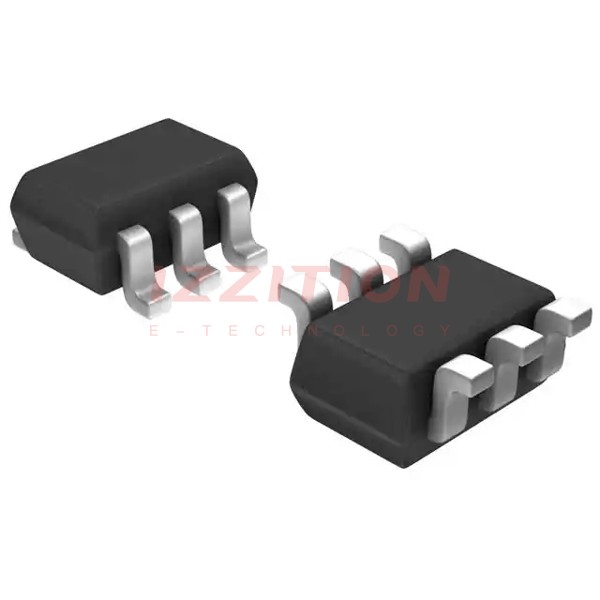

| Package Type | SC70-6 (SMD) |
Key Features
- Ultra-low power consumption, ideal for battery-powered devices.
- Wide operating voltage range of 0.9 V to 3.6 V.
- Fast propagation delay of 1.6 ns at 3.3 V.
- Inputs and outputs are over-voltage tolerant up to 3.6 V.
- Compact SC70-6 package for space-efficient designs.
Applications
- Battery-powered devices and portable electronics.
- Low-power consumer electronics.
- Automotive systems requiring low power consumption.
- Industrial control systems where power efficiency is crucial.
- Wireless communication devices and IoT applications.
Q & A
- What is the operating voltage range of the NC7WV07P6X? The operating voltage range is from 0.9 V to 3.6 V.
- How many buffers does the NC7WV07P6X contain? The NC7WV07P6X contains 2 buffers.
- What is the propagation delay at 3.3 V for the NC7WV07P6X? The propagation delay at 3.3 V is 1.6 ns (Typ).
- Is the NC7WV07P6X over-voltage tolerant? Yes, inputs and outputs are over-voltage tolerant up to 3.6 V.
- What package type does the NC7WV07P6X come in? The NC7WV07P6X comes in an SC70-6 (SMD) package.
- What are some typical applications for the NC7WV07P6X? Typical applications include battery-powered devices, low-power consumer electronics, automotive systems, industrial control systems, and wireless communication devices.
- Why is the NC7WV07P6X suitable for battery-powered devices? It is suitable due to its ultra-low power consumption.
- Can the NC7WV07P6X be used in automotive systems? Yes, it can be used in automotive systems due to its low power consumption and over-voltage tolerance.
- What is the significance of the open-drain output in the NC7WV07P6X? The open-drain output allows for wired-OR configurations and can be used with external pull-up resistors.
- Where can I find detailed specifications for the NC7WV07P6X? Detailed specifications can be found in the datasheet available on ON Semiconductor's website and other authorized distributors like Digi-Key and Mouser.
