Overview

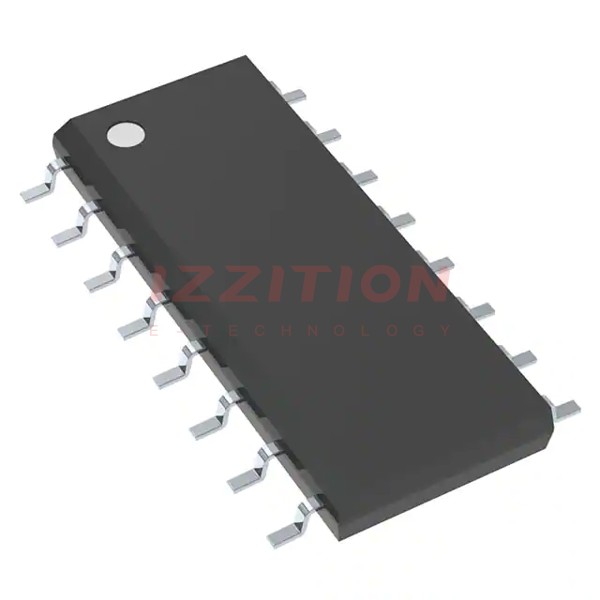

The MC74LCX157DR2G, produced by onsemi, is a high-performance, low-voltage CMOS quad 2-input multiplexer. This component is designed to operate over a wide voltage range of 1.65 to 5.5V, making it versatile for various applications. It features high impedance TTL compatible inputs, which enhance its compatibility with different logic systems. The MC74LCX157DR2G is packaged in a SOIC-16 package, making it suitable for a range of electronic designs requiring multiplexing functions.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Supply Range | 1.65 to 5.5V |
| Input Type | High Impedance TTL Compatible |
| Number of Inputs per MUX | 2 |
| Number of MUX Channels | 4 (Quad) |
| Package Type | SOIC-16 |
| Operating Temperature Range | -40°C to 125°C |
Key Features
- High performance, low-voltage CMOS technology
- Wide operating voltage range: 1.65 to 5.5V
- High impedance TTL compatible inputs
- Quad 2-input multiplexer configuration
- 5V tolerant inputs
- Low power consumption
Applications
The MC74LCX157DR2G is suitable for a variety of applications, including but not limited to:
- Digital signal processing and routing
- Communication systems
- Embedded systems and microcontrollers
- Automotive and industrial control systems
- Consumer electronics requiring multiplexing functions
