Overview

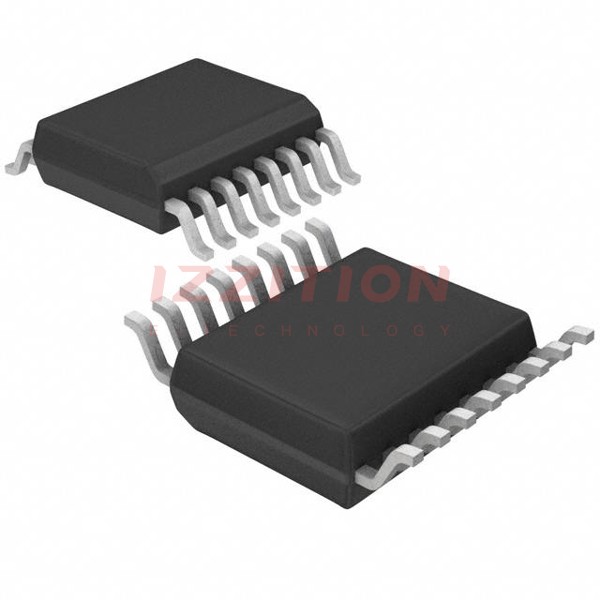

The MC74HC365ADTR2G, produced by onsemi, is a high-performance hex 3-state noninverting buffer with common enables. This device is part of the MC74HC365A series and is identical in pinout to the LS365. It features high-speed operation and compatibility with standard CMOS outputs, as well as LSTTL outputs when used with pullup resistors. The device includes two common active-low Output Enables, which place the buffer outputs into high-impedance states when either enable is high. This makes it suitable for a variety of digital logic applications requiring buffer functionality.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| DC Supply Voltage (VCC) | 2.0 to 6.0 | V |
| DC Input Voltage (Vin) | –0.5 to VCC + 0.5 | V |
| DC Output Voltage (Vout) | –0.5 to VCC + 0.5 | V |
| Maximum Input Leakage Current (Iin) | ±6.0 | μA |
| Maximum Three-State Leakage Current (IOZ) | ±10 | μA |
| Maximum Propagation Delay (tPLH, tPHL) | 20 to 120 | ns |
| Maximum Output Transition Time (tTLH, tTHL) | 10 to 90 | ns |
| Operating Free-Air Temperature (TA) | –55 to +125 | °C |
| Storage Temperature (Tstg) | –65 to +150 | °C |
| Lead Temperature (TL) | 260 | °C |
Key Features
- High-speed hex buffer with 3-state outputs and two common active-low Output Enables.
- Inputs compatible with standard CMOS outputs; with pullup resistors, compatible with LSTTL outputs.
- Output Drive Capability: 15 LSTTL Loads.
- Outputs directly interface to CMOS, NMOS, and TTL.
- Operating Voltage Range: 2.0 to 6.0 V.
- Low Input Current: 1.0 μA.
- High noise immunity characteristic of CMOS devices.
- In compliance with the requirements defined by JEDEC Standard No. 7A.
- Pb-Free, Halogen Free/BFR Free and RoHS compliant.
- AEC-Q100 Qualified and PPAP Capable for automotive and other applications requiring unique site and control change requirements.
Applications
The MC74HC365ADTR2G is suitable for various digital logic applications, including:
- Buffering and driving signals in digital circuits.
- Interface between different logic families (CMOS, NMOS, TTL).
- Automotive and industrial control systems due to its AEC-Q100 qualification.
- General-purpose logic circuits requiring high-speed and low power consumption.
Q & A
- What is the operating voltage range of the MC74HC365ADTR2G?
The operating voltage range is from 2.0 to 6.0 V.
- What type of outputs does the MC74HC365ADTR2G have?
The device has 3-state noninverting outputs.
- How many Output Enables does the MC74HC365ADTR2G have?
The device has two common active-low Output Enables.
- What is the maximum propagation delay of the MC74HC365ADTR2G?
The maximum propagation delay ranges from 20 to 120 ns depending on the VCC voltage.
- Is the MC74HC365ADTR2G compatible with LSTTL outputs?
Yes, with pullup resistors, the inputs are compatible with LSTTL outputs.
- What is the maximum output transition time of the MC74HC365ADTR2G?
The maximum output transition time ranges from 10 to 90 ns depending on the VCC voltage.
- Is the MC74HC365ADTR2G RoHS compliant?
Yes, the device is Pb-Free, Halogen Free/BFR Free and RoHS compliant.
- What are the packaging options for the MC74HC365ADTR2G?
The device is available in SOIC-16 and TSSOP-16 packages.
- Is the MC74HC365ADTR2G suitable for automotive applications?
Yes, it is AEC-Q100 Qualified and PPAP Capable for automotive and other applications requiring unique site and control change requirements.
- What is the storage temperature range for the MC74HC365ADTR2G?
The storage temperature range is from –65 to +150°C.
