Overview

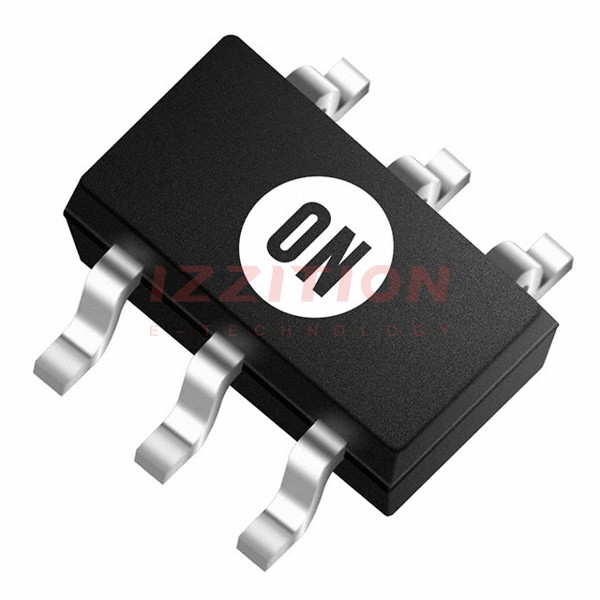

The onsemi MBD54DWT1G is a dual Schottky diode designed for high-speed switching applications, circuit protection, and voltage clamping. This component is part of onsemi's portfolio of Schottky diodes known for their high gain ESD protection, high power handling, low distortion, and a broad range of package options. The MBD54DWT1G is particularly suited for applications requiring low voltage, high-frequency rectification, freewheeling, and polarity protection in compact surface mount designs.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V) | 30V |
| Current Rating (DC) | 200mA |
| Package Type | SC-70-6 (SOT-363), 6-TSSOP, SC-88 |
| Number of Diodes | 2 Independent Diodes |
| Forward Voltage Drop | Approx. 1V @ 100mA |
| RoHS Compliance | Yes |
Key Features
- High-speed switching capabilities
- High gain ESD protection
- Low distortion
- Compact surface mount package (SC-70-6/SOT-363)
- Suitable for low voltage, high-frequency rectification
- Freewheeling and polarity protection diode
- Rohs compliant
Applications
The onsemi MBD54DWT1G is ideal for various applications including:
- High-speed switching circuits
- Circuit protection and voltage clamping
- Low voltage, high-frequency rectification
- Freewheeling diode applications
- Polarity protection in surface mount designs
Q & A
- What is the voltage rating of the MBD54DWT1G?
The voltage rating of the MBD54DWT1G is 30V. - What is the current rating of the MBD54DWT1G?
The current rating of the MBD54DWT1G is 200mA (DC). - What package types are available for the MBD54DWT1G?
The MBD54DWT1G is available in SC-70-6 (SOT-363), 6-TSSOP, and SC-88 packages. - How many diodes are in the MBD54DWT1G?
The MBD54DWT1G contains 2 independent diodes. - What is the forward voltage drop of the MBD54DWT1G?
The forward voltage drop of the MBD54DWT1G is approximately 1V @ 100mA. - Is the MBD54DWT1G RoHS compliant?
Yes, the MBD54DWT1G is RoHS compliant. - What are some typical applications of the MBD54DWT1G?
The MBD54DWT1G is typically used in high-speed switching circuits, circuit protection, low voltage high-frequency rectification, freewheeling, and polarity protection. - Why is the MBD54DWT1G suitable for high-frequency applications?
The MBD54DWT1G is suitable for high-frequency applications due to its low distortion and high-speed switching capabilities. - What are the benefits of using the MBD54DWT1G in surface mount designs?
The MBD54DWT1G offers compact size and weight, making it ideal for surface mount designs where space is limited. - Where can I find detailed specifications for the MBD54DWT1G?
Detailed specifications for the MBD54DWT1G can be found in the datasheet available on official onsemi websites and distributor sites like Mouser, Digi-Key, and RS Components.
