Overview
The FSAL200MTCX is a Wide Bandwidth Quad 2:1 Analog Multiplexer / De-multiplexer Switch produced by onsemi (formerly Fairchild Semiconductor). This integrated circuit is designed to provide high-performance switching for analog signals, making it suitable for various applications requiring precise signal routing.
Key Specifications
| Parameter | Value |
|---|---|
| Series | FSAL200 |

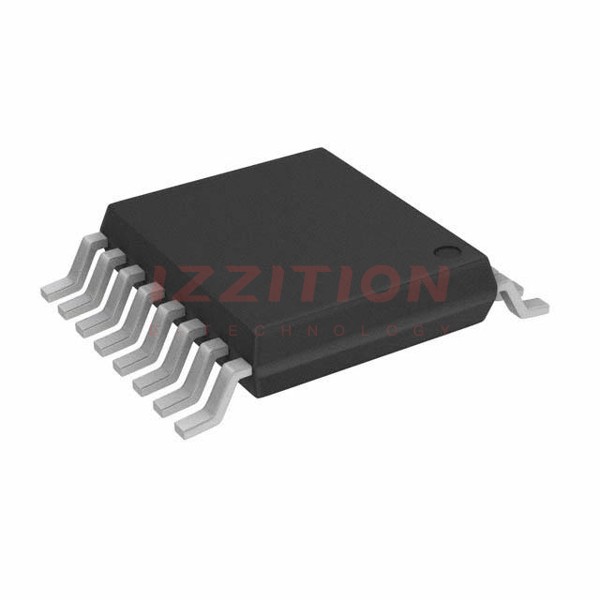

| Package / Case | TSSOP-16 |
| Mounting Style | SMD/SMT |
| Number of Channels | 8 |
| Channel Configuration | 4 x 2:1 |
| Bandwidth | Wide Bandwidth |
Key Features
- Quad 2:1 analog multiplexer / de-multiplexer configuration, allowing for flexible signal routing.
- Wide bandwidth, enabling the handling of high-frequency signals.
- Low on-resistance and high off-isolation, ensuring minimal signal distortion.
- Compact TSSOP-16 package, suitable for space-constrained designs.
Applications
The FSAL200MTCX is versatile and can be used in a variety of applications, including:
- Audio and video signal routing.
- Medical equipment for signal switching.
- Industrial control systems requiring precise analog signal management.
- Telecommunication systems for signal multiplexing.
Q & A
- What is the package type of the FSAL200MTCX? The FSAL200MTCX comes in a TSSOP-16 package.
- How many channels does the FSAL200MTCX have? The FSAL200MTCX has 8 channels, configured as 4 x 2:1.
- What is the bandwidth of the FSAL200MTCX? The FSAL200MTCX has a wide bandwidth, suitable for high-frequency signal handling.
- Is the FSAL200MTCX still in production? No, the FSAL200MTCX is no longer manufactured and will not be restocked once current inventory is depleted.
- What are some common applications of the FSAL200MTCX? Common applications include audio and video signal routing, medical equipment, industrial control systems, and telecommunication systems.
- What is the mounting style of the FSAL200MTCX? The FSAL200MTCX has an SMD/SMT mounting style.
- Where can I find detailed specifications for the FSAL200MTCX? Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and Digi-Key.
- What are the key features of the FSAL200MTCX? Key features include quad 2:1 analog multiplexer / de-multiplexer configuration, wide bandwidth, low on-resistance, and high off-isolation.
- Can I use the FSAL200MTCX in high-frequency applications? Yes, the FSAL200MTCX is suitable for high-frequency applications due to its wide bandwidth.
- What is the typical use case for the FSAL200MTCX in medical equipment? In medical equipment, the FSAL200MTCX can be used for precise signal switching and routing.
