Overview
The SPC5643LK0MLQ1 is a 32-bit microcontroller (MCU) from NXP Semiconductors, built on the Power Architecture technology. This MCU is part of the MPC564xL family, known for its ultra-reliability and is specifically designed for automotive and industrial control applications. It integrates key functional safety features, reducing design complexity and component count. The SPC5643LK0MLQ1 is compliant with various environmental and safety standards, including EU RoHS, ELV, and China RoHS directives.
Key Specifications
| Specification | Details |
|---|---|
| Architecture | Power Architecture |
| Core Type | 32-bit e200z4d core |

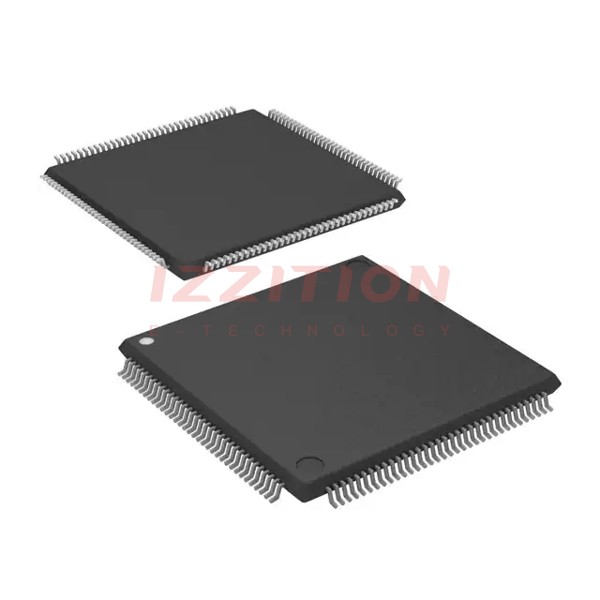

| Package Type | LQFP144 (SOT486-2) |
| Operating Temperature | -40°C to 125°C |
| Flash Memory | Up to 3 MB |
| SRAM | Up to 192 KB |
| Peripheral Interfaces | Multiple CAN, LIN, SPI, UART, I2C, and Ethernet interfaces |
| Compliance | EU RoHS, ELV, China RoHS compliant |
Key Features
- Functional Safety: Integrated safety features to meet stringent automotive and industrial safety standards.
- High Performance: 32-bit e200z4d core providing high processing power.
- Memory and Storage: Up to 3 MB of flash memory and up to 192 KB of SRAM.
- Peripheral Interfaces: Multiple communication interfaces including CAN, LIN, SPI, UART, I2C, and Ethernet.
- Environmental Compliance: Compliant with EU RoHS, ELV, and China RoHS directives.
Applications
- Automotive Systems: Engine control, transmission control, and advanced driver-assistance systems (ADAS).
- Industrial Control: Industrial automation, motor control, and industrial Ethernet applications.
- Safety-Critical Systems: Systems requiring high reliability and functional safety such as in automotive and industrial environments.
Q & A
- What is the architecture of the SPC5643LK0MLQ1 MCU?
The SPC5643LK0MLQ1 MCU is based on the Power Architecture technology.
- What is the core type of the SPC5643LK0MLQ1?
The core type is a 32-bit e200z4d core.
- What is the package type of the SPC5643LK0MLQ1?
The package type is LQFP144 (SOT486-2).
- What is the operating temperature range of the SPC5643LK0MLQ1?
The operating temperature range is -40°C to 125°C.
- How much flash memory does the SPC5643LK0MLQ1 have?
The SPC5643LK0MLQ1 has up to 3 MB of flash memory.
- What are the key peripheral interfaces available on the SPC5643LK0MLQ1?
The MCU includes multiple CAN, LIN, SPI, UART, I2C, and Ethernet interfaces.
- Is the SPC5643LK0MLQ1 compliant with environmental regulations?
Yes, it is compliant with EU RoHS, ELV, and China RoHS directives.
- What are the primary applications of the SPC5643LK0MLQ1?
The primary applications include automotive systems, industrial control, and safety-critical systems.
- How does the SPC5643LK0MLQ1 support functional safety?
The MCU integrates key functional safety features to meet stringent automotive and industrial safety standards.
- Where can I find detailed specifications and datasheets for the SPC5643LK0MLQ1?
Detailed specifications and datasheets can be found on the NXP Semiconductors website and other authorized distributors like Ariat-Tech.
