Overview
The SPC5604EEF2MLH is a 32-bit microcontroller (MCU) from NXP Semiconductors, part of the MPC560x family. This MCU is designed for advanced driver assistance systems (ADAS), surround-view camera systems, and various industrial applications. It is known for its reliability and performance in demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Core Architecture | Power Architecture |
| Flash Memory | 512 KB |
| SRAM | 96 KB |
| Operating Frequency | Up to 64 MHz |
| Operating Voltage | 3V to 3.6V |

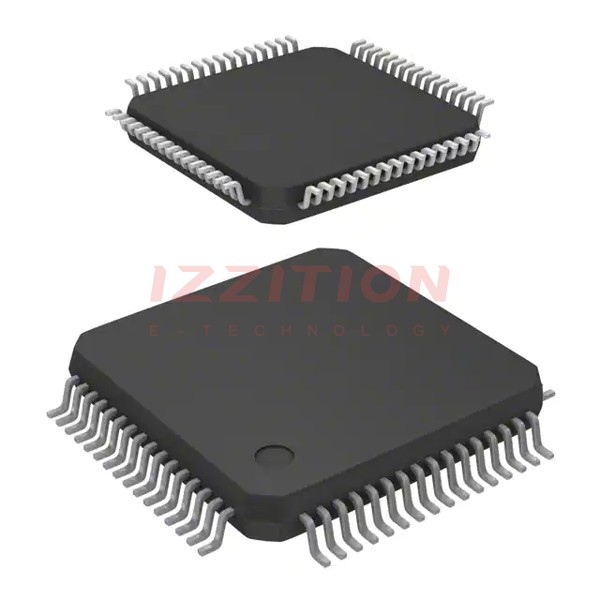

| Package Type | LQFP-64 (10x10 mm) |
| Temperature Range | -40°C to +125°C |
Key Features
- 32-bit Power Architecture core
- High-performance processing up to 64 MHz
- 512 KB of Flash memory and 96 KB of SRAM
- Low power consumption and efficient power management
- Robust peripheral set including timers, UARTs, SPI, and CAN interfaces
- Enhanced reliability features suitable for automotive and industrial applications
Applications
- Advanced Driver Assistance Systems (ADAS)
- Surround-view camera systems
- Industrial control and automation
- Automotive engine management and powertrain control
- Industrial Ethernet applications
Q & A
- What is the core architecture of the SPC5604EEF2MLH MCU?
The core architecture is based on the Power Architecture. - How much Flash and SRAM does the SPC5604EEF2MLH have?
It has 512 KB of Flash memory and 96 KB of SRAM. - What is the maximum operating frequency of the SPC5604EEF2MLH?
The maximum operating frequency is up to 64 MHz. - What is the operating voltage range of the SPC5604EEF2MLH?
The operating voltage range is 3V to 3.6V. - What package type is the SPC5604EEF2MLH available in?
It is available in an LQFP-64 (10x10 mm) package. - What is the temperature range for the SPC5604EEF2MLH?
The temperature range is -40°C to +125°C. - What are some common applications for the SPC5604EEF2MLH?
Common applications include ADAS, surround-view camera systems, industrial control, and automotive engine management. - Does the SPC5604EEF2MLH support industrial Ethernet?
Yes, it supports industrial Ethernet applications. - What kind of peripherals does the SPC5604EEF2MLH have?
It includes timers, UARTs, SPI, and CAN interfaces among others. - Is the SPC5604EEF2MLH suitable for high-reliability applications?
Yes, it is designed with enhanced reliability features suitable for automotive and industrial applications.
