Overview
The NXP MPC5534, specifically the SPC5534MVM80, is a 32-bit microcontroller designed for automotive powertrain applications. It is part of the MPC5500 family of microcontrollers, which are built on the Power Architecture embedded technology. This MCU offers an ultra-low cost solution for low-end engine management, combining high performance with significant cost reduction per feature compared to its predecessors in the MPC500 family.
Key Specifications
| Characteristic | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Core Supply Voltage | VDD | -0.3 | 1.7 | V |
| Flash Program/Erase Voltage | VPP | -0.3 | 6.5 | V |
| Flash Read Voltage | VFLASH | -0.3 | 4.6 | V |
| SRAM Standby Voltage | VSTBY | -0.3 | 1.7 | V |
| Clock Synthesizer Voltage | VDDSYN | -0.3 | 4.6 | V |
| 3.3 V I/O Buffer Voltage | VDD33 | -0.3 | 4.6 | V |
| Analog Supply Voltage | VDDA | -0.3 | 5.5 | V |
| Operating Frequency | fMAX | 80 | 82 | MHz |
| Operating Temperature | T | -40°C | 125°C | °C |

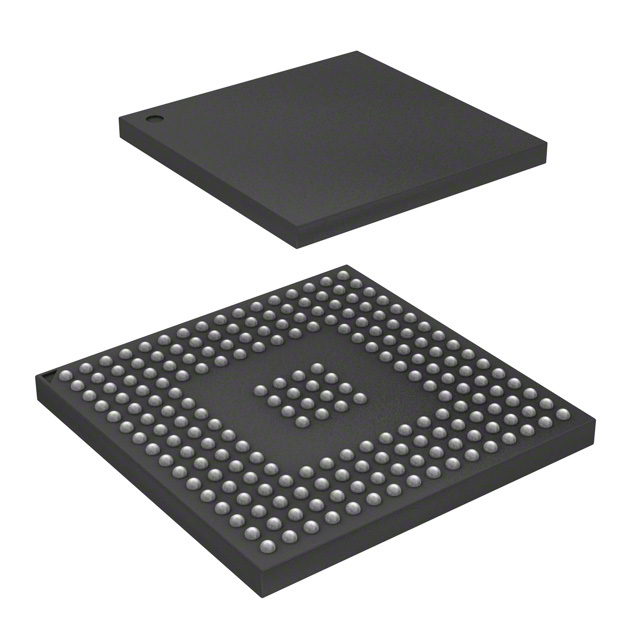

| Package Type | 208MAPBGA |
Key Features
- Power Architecture Embedded Technology: The MPC5534 MCU is based on the Power Architecture embedded category, ensuring 100% user-mode compatibility with the original PowerPC instruction set, including floating-point library support.
- Digital Signal Processing (DSP) Instructions: The core includes additional DSP instructions beyond the original PowerPC instruction set, enhancing performance in embedded applications.
- High Performance and Cost Efficiency: The MCU offers significant performance improvements and cost reduction per feature compared to the MPC500 family.
- Multiple Operating Frequencies: Available in various operating frequencies, including 40 MHz, 66 MHz, and 80 MHz, with frequency modulation (FM) capabilities.
- Lead-Free and Leaded Packages: Available in both lead-free (PbFree) and leaded (SnPb) packages to cater to different application requirements).
Applications
The NXP MPC5534, specifically the SPC5534MVM80, is primarily designed for automotive powertrain applications. It is suitable for low-end engine management systems, where high performance and cost efficiency are critical. Additionally, its robust features make it a viable option for industrial applications requiring similar performance and reliability).
Q & A
- What is the primary application of the MPC5534 MCU?
The primary application of the MPC5534 MCU is for automotive powertrain applications, particularly for low-end engine management systems).
- What architecture does the MPC5534 MCU use?
The MPC5534 MCU is based on the Power Architecture embedded technology).
- What are the available operating frequencies for the MPC5534 MCU?
The MPC5534 MCU is available in operating frequencies of 40 MHz, 66 MHz, and 80 MHz, with frequency modulation (FM) capabilities).
- What types of packages are available for the MPC5534 MCU?
The MPC5534 MCU is available in both lead-free (PbFree) and leaded (SnPb) packages).
- What is the operating temperature range of the MPC5534 MCU?
The operating temperature range of the MPC5534 MCU is from -40°C to 125°C).
- Does the MPC5534 MCU support DSP instructions?
Yes, the MPC5534 MCU includes additional DSP instructions beyond the original PowerPC instruction set).
- What is the core supply voltage range for the MPC5534 MCU?
The core supply voltage range for the MPC5534 MCU is from -0.3 V to 1.7 V).
- Is the MPC5534 MCU compatible with the original PowerPC instruction set?
Yes, the MPC5534 MCU is 100% user-mode compatible with the original PowerPC instruction set, including floating-point library support).
- What package type is used for the SPC5534MVM80?
The SPC5534MVM80 uses a 208MAPBGA package type).
- Are there any design files available for the MPC5534 MCU?
Yes, design files, including eCad files and OrCAD symbols, are available for the MPC5534 MCU).
