Overview
The SAF7741HV/N135518, produced by NXP USA Inc., is a sophisticated combined Intermediate-Frequency (IF) car radio and audio Digital Signal Processor (DSP). This integrated circuit is designed to enhance the performance of car radio systems by combining analog IF input, digital radio and audio processing, sample-rate converters, and digital and analog audio output. It is optimized to improve listening clarity, suppress noise, and reduce multipath channel effects. The device is compatible with the TEF7000 and TEF6730 integrated tuners for both analog and digital AM/FM decoding and sound processing.
Key Specifications
| Parameter | Description |
|---|---|

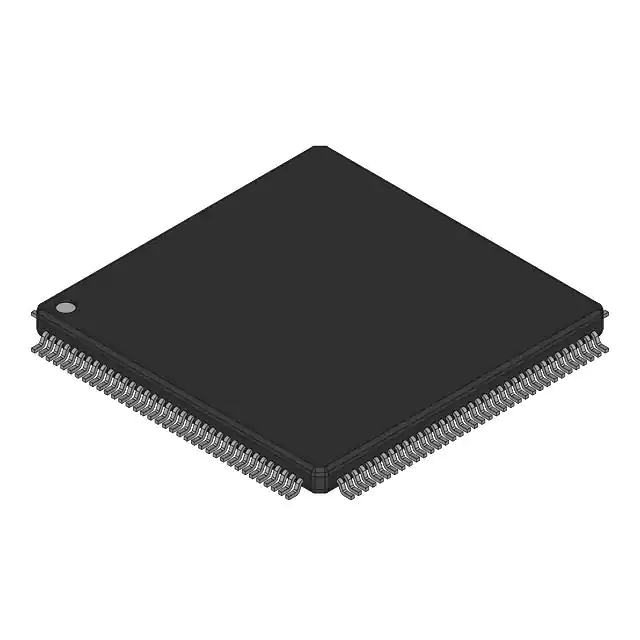

| Package Type | HLQFP144 |
| Supply Voltage | 3.3 V (maximum) |
| Digital Core Supply Voltage | 1.8 V |
| Temperature Range | AEC-Q100 qualified |
| Compliance | PbFree, EU RoHS, Halogen Free, REACH SVHC compliant |
| Interfaces | RDS, FM/AM demodulation, digital stereo decoder, baseband audio processing |
Key Features
- Integrated IF and audio processing for enhanced radio and audio performance.
- Support for both analog and digital AM/FM decoding.
- Improved FM weak-signal processing and integrated 19 kHz Multiplexed (MPX) filter and de-emphasis.
- Electronic adjustment of FM/AM level and FM channel separation.
- Variable IF bandwidth controlled by DSP software.
- Digital Automatic Frequency Control (AFC) and RDS demodulation.
- Advanced digital Interference Absorption Circuit (IAC) for FM and AM.
- Baseband audio processing including treble, bass, and balance adjustments.
Applications
The SAF7741HV/N135518 is primarily used in car radio systems to enhance the quality of radio and audio signals. It is suitable for both analog and digital radio systems, including HD radio, and is compatible with various tuner modules like the TEF7000 and TEF6730. This component is ideal for automotive infotainment systems where high-quality audio and reliable signal processing are critical.
Q & A
- What is the primary function of the SAF7741HV/N135518?
The primary function is to act as a combined Intermediate-Frequency (IF) car radio and audio Digital Signal Processor (DSP) to enhance radio and audio performance in car radio systems. - What type of package does the SAF7741HV/N135518 come in?
The component comes in a HLQFP144 package. - What is the maximum supply voltage for the SAF7741HV/N135518?
The maximum supply voltage is 3.3 volts. - Is the SAF7741HV/N135518 compliant with environmental regulations?
Yes, it is PbFree, EU RoHS, Halogen Free, and REACH SVHC compliant. - What tuners is the SAF7741HV/N135518 compatible with?
It is compatible with the TEF7000 and TEF6730 integrated tuners. - What are some of the key features of the SAF7741HV/N135518?
Key features include improved FM weak-signal processing, integrated 19 kHz MPX filter and de-emphasis, electronic adjustment of FM/AM levels, and advanced digital Interference Absorption Circuit (IAC). - Can the SAF7741HV/N135518 be used in both analog and digital radio systems?
Yes, it supports both analog and digital AM/FM decoding. - How does the SAF7741HV/N135518 enhance audio quality?
It enhances audio quality through baseband audio processing, including treble, bass, and balance adjustments, and by reducing multipath channel effects. - Is the SAF7741HV/N135518 qualified for automotive use?
Yes, it is qualified in accordance with AEC-Q100 standards. - What is the status of the SAF7741HV/N135518 in terms of manufacturing?
The component is no longer manufactured but may still be available from various distributors.
