Overview
The S9S12VR32F0VLC is a microcontroller from NXP Semiconductors, designed to provide an efficient and scalable solution for relay-driven DC motor control. This device is particularly suited for industrial and automotive applications, such as window lift systems, due to its compact size and robust performance.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | NXP Semiconductors |
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |

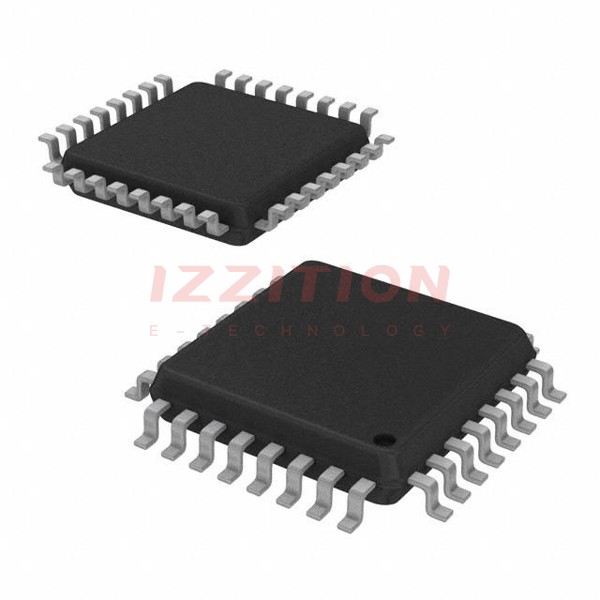

| Package | 32-LQFP |
| Architecture | 16-Bit S12 and S12X MCUs |
| Flash Memory | 32 KB |
| RAM | 2 KB |
| Clock Speed | Up to 25 MHz |
| Operating Temperature | -40°C to 125°C |
Key Features
- Compact 32-LQFP package, making it ideal for space-constrained applications.
- 16-bit S12 and S12X MCU architecture, providing a balance between performance and power efficiency.
- Integrated relay-driven DC motor control capabilities, suitable for various industrial and automotive uses.
- On-chip flash memory of 32 KB and RAM of 2 KB, ensuring sufficient storage and processing capabilities.
- Operates at clock speeds up to 25 MHz, supporting high-speed applications.
- Wide operating temperature range of -40°C to 125°C, enhancing reliability in harsh environments.
Applications
The S9S12VR32F0VLC microcontroller is primarily used in industrial and automotive applications. Some specific use cases include:
- Window lift systems in vehicles.
- Other DC motor control applications in industrial settings.
- Automotive body control modules.
- Industrial automation and control systems.
Q & A
- What is the S9S12VR32F0VLC microcontroller used for?
The S9S12VR32F0VLC is used for relay-driven DC motor control in industrial and automotive applications. - What is the package type of the S9S12VR32F0VLC?
The package type is 32-LQFP. - What is the architecture of the S9S12VR32F0VLC?
The architecture is 16-Bit S12 and S12X MCUs. - How much flash memory does the S9S12VR32F0VLC have?
The S9S12VR32F0VLC has 32 KB of flash memory. - What is the maximum clock speed of the S9S12VR32F0VLC?
The maximum clock speed is up to 25 MHz. - What is the operating temperature range of the S9S12VR32F0VLC?
The operating temperature range is -40°C to 125°C. - Who is the manufacturer of the S9S12VR32F0VLC?
The manufacturer is NXP Semiconductors. - What are some common applications of the S9S12VR32F0VLC?
Common applications include window lift systems, industrial automation, and automotive body control modules. - How much RAM does the S9S12VR32F0VLC have?
The S9S12VR32F0VLC has 2 KB of RAM. - Is the S9S12VR32F0VLC suitable for harsh environments?
Yes, it is suitable for harsh environments due to its wide operating temperature range.
