Overview
The S912ZVMBA4F0VLF557 is a 16-bit microcontroller from NXP USA Inc., part of the S12 MagniV family. This microcontroller is designed for a wide range of applications, including automotive, industrial, healthcare, and consumer electronics. It features a robust set of on-board peripherals and interfaces, making it an excellent choice for both low-cost and complex embedded tasks. The S912ZVMBA4F0VLF557 is known for its low power consumption and high flexibility, making it suitable for battery-powered and energy-efficient embedded systems.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | S912ZVMBA4F0VLF557 |
| Core Processor | S12Z (HCS12) |
| Core Size | 16-Bit |
| Speed | Up to 48 MHz |
| Program Memory Size | 48 KB (48K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |

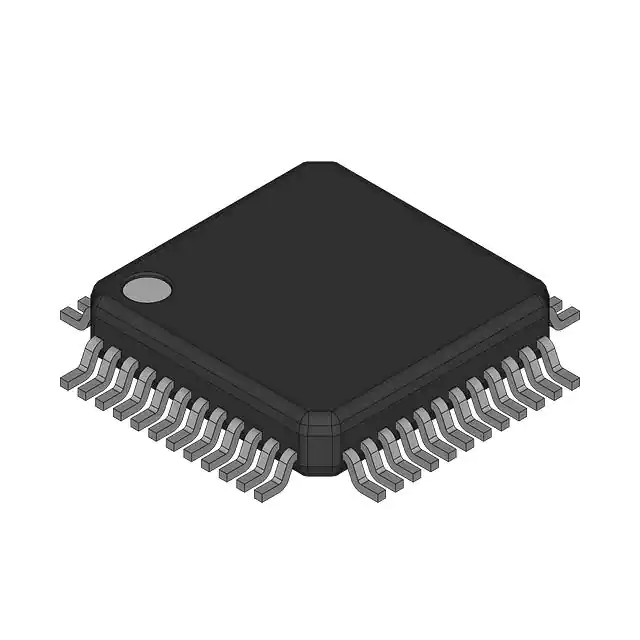

| Package / Case | 48-LQFP (7x7) |
| Connectivity | CANbus, I²C, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT, ADC (10x12b), DAC (1x8b) |
| Oscillator Type | Internal |
| Number of I/O | 28 |
Key Features
- Low power consumption with various sleep and wake-on-interrupt modes to reduce power usage.
- Extensive range of on-board peripherals, including ADC, DAC, PWM, UART, SPI, and I²C.
- Highly integrated and flexible design suitable for a variety of applications.
- Robust embedded core with a maximum frequency of up to 48 MHz.
- Support for real-time applications with fast response times for critical tasks.
- Wide operating voltage range from 1.65 V to 5.5 V, making it suitable for battery-powered devices.
Applications
- Automotive systems, including navigation and control systems.
- Industrial applications, such as temperature-sensing and control systems, and power management systems.
- Healthcare devices requiring low power and high reliability.
- Consumer electronics, including smart home devices and IoT applications.
- Embedded systems requiring real-time processing and low power consumption.
Q & A
- What is the core processor of the S912ZVMBA4F0VLF557 microcontroller?
The core processor is the S12Z (HCS12). - What is the maximum operating frequency of the S912ZVMBA4F0VLF557?
The maximum operating frequency is up to 48 MHz. - What is the program memory size of the S912ZVMBA4F0VLF557?
The program memory size is 48 KB (48K x 8). - What are the supported communication interfaces of the S912ZVMBA4F0VLF557?
The supported interfaces include CANbus, I²C, SCI, and SPI. - What is the operating voltage range of the S912ZVMBA4F0VLF557?
The operating voltage range is from 1.65 V to 5.5 V. - What are some of the key peripherals included in the S912ZVMBA4F0VLF557?
The key peripherals include DMA, POR, PWM, WDT, ADC (10x12b), and DAC (1x8b). - What is the package type of the S912ZVMBA4F0VLF557?
The package type is 48-LQFP (7x7). - What are the typical applications of the S912ZVMBA4F0VLF557?
The typical applications include automotive, industrial, healthcare, and consumer electronics. - How does the S912ZVMBA4F0VLF557 manage power consumption?
The microcontroller features various sleep and wake-on-interrupt modes to reduce power consumption. - What is the operating temperature range of the S912ZVMBA4F0VLF557?
The operating temperature range is -40°C ~ 125°C (TA).
