Overview
The S912XHZ512F1VAG is a microcontroller (MCU) produced by NXP USA Inc., specifically designed for automotive applications. It is notable for being the industry's first instrumentation cluster MCU with an on-chip TFT display driver, enhancing graphic display capabilities in low-end automotive dashboards. This MCU features an HCS12X core processor, making it a robust solution for various automotive instrumentation needs.
Key Specifications
| Specification | Details |
|---|---|
| Core Processor | HCS12X core |
| Core Size | 16-bit |
| Operating Frequency | 80 MHz |

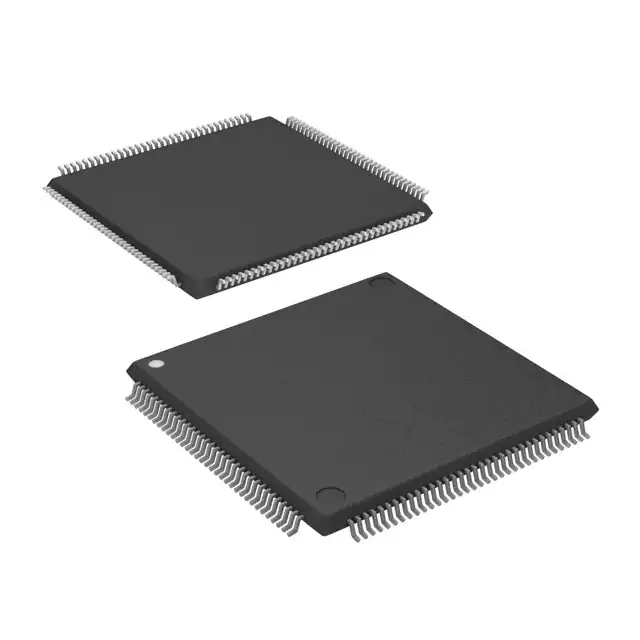

| Package Type | LQFP-144 (20x20 mm) |
| Display Driver | On-chip TFT display driver |
| Compliance | ROHS compliant |
Key Features
- Integrated TFT display driver for enhanced graphic display capabilities
- 16-bit HCS12X core processor for robust processing
- Operating frequency of 80 MHz for high-performance applications
- LQFP-144 package for compact and efficient design
- ROHS compliance for environmental sustainability
Applications
The S912XHZ512F1VAG MCU is primarily designed for automotive instrumentation cluster applications, including low-end automotive dashboards. It is suitable for various automotive display and control systems where high-performance graphic display capabilities are required.
Q & A
- What is the core processor of the S912XHZ512F1VAG MCU? The core processor is the HCS12X core.
- What is the operating frequency of the S912XHZ512F1VAG MCU? The operating frequency is 80 MHz.
- What type of display driver is integrated into the S912XHZ512F1VAG MCU? It has an on-chip TFT display driver.
- What is the package type of the S912XHZ512F1VAG MCU? The package type is LQFP-144 (20x20 mm).
- Is the S912XHZ512F1VAG MCU ROHS compliant? Yes, it is ROHS compliant.
- What are the primary applications of the S912XHZ512F1VAG MCU? It is primarily used in automotive instrumentation cluster applications, including low-end automotive dashboards.
- What is the significance of the S912XHZ512F1VAG MCU in the automotive industry? It is the industry's first instrumentation cluster MCU with an on-chip TFT display driver, enhancing graphic display capabilities.
- Where can I find detailed specifications of the S912XHZ512F1VAG MCU? Detailed specifications can be found on NXP's official website, DigiKey, and other electronic component distributors.
- What is the core size of the S912XHZ512F1VAG MCU? The core size is 16-bit.
- Is the S912XHZ512F1VAG MCU available for purchase? Yes, it is available for purchase from various electronic component distributors.
