Overview
The PXAG49KBA/00,512 is a 16-bit microcontroller from NXP USA Inc., part of the XA microcontroller family. This device is no longer in production but was widely used in various embedded systems due to its robust features and performance. The microcontroller boasts a 64KB FLASH memory and 2KB of RAM, making it suitable for a range of applications requiring moderate computational power and memory.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller Type | 16-bit |
| Program Memory Type | FLASH |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 2KB |
| Maximum Clock Frequency | 30MHz |
| Supply Voltage Range | 4.5 V to 5.5 V |

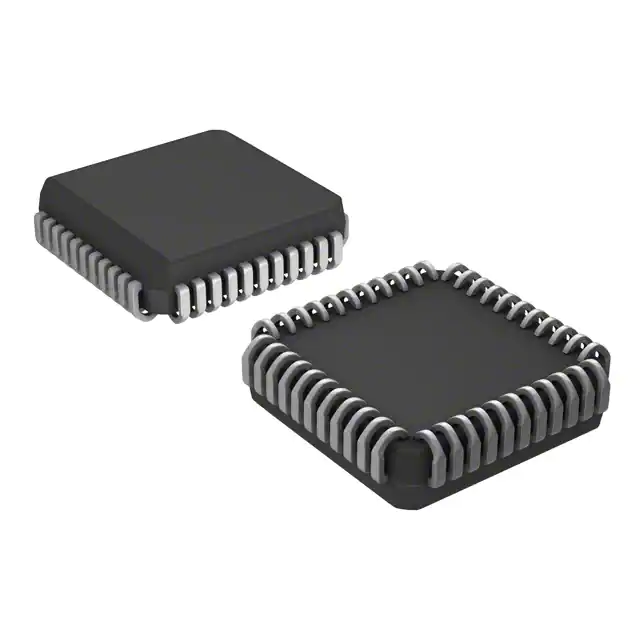

| Package Type | 44-PLCC (J-Lead) |
| Package Dimensions | 16.59x16.59 mm |
| RoHS Compliance | Yes |
Key Features
- XA 16-bit microcontroller family
- 64KB FLASH memory and 2KB RAM
- Watchdog timer for system reliability
- Two UARTs (Universal Asynchronous Receiver-Transmitters) for serial communication
- Operating voltage range of 4.5 V to 5.5 V
Applications
The PXAG49KBA/00,512 microcontroller is suitable for various embedded system applications, including industrial control systems, automotive electronics, consumer electronics, and medical devices. Its moderate memory and computational capabilities make it a versatile choice for systems requiring reliable and efficient performance.
Q & A
- What is the microcontroller type of the PXAG49KBA/00,512?
The PXAG49KBA/00,512 is a 16-bit microcontroller. - What is the program memory size of the PXAG49KBA/00,512?
The program memory size is 64KB (64K x 8). - How much RAM does the PXAG49KBA/00,512 have?
The PXAG49KBA/00,512 has 2KB of RAM. - What is the maximum clock frequency of the PXAG49KBA/00,512?
The maximum clock frequency is 30MHz. - What is the supply voltage range for the PXAG49KBA/00,512?
The supply voltage range is 4.5 V to 5.5 V. - What type of package does the PXAG49KBA/00,512 use?
The package type is 44-PLCC (J-Lead). - Is the PXAG49KBA/00,512 RoHS compliant?
Yes, the PXAG49KBA/00,512 is RoHS compliant. - Does the PXAG49KBA/00,512 have a watchdog timer?
Yes, it includes a watchdog timer for system reliability. - How many UARTs does the PXAG49KBA/00,512 have?
The PXAG49KBA/00,512 has two UARTs. - Is the PXAG49KBA/00,512 still in production?
No, the PXAG49KBA/00,512 is no longer manufactured.
