Overview

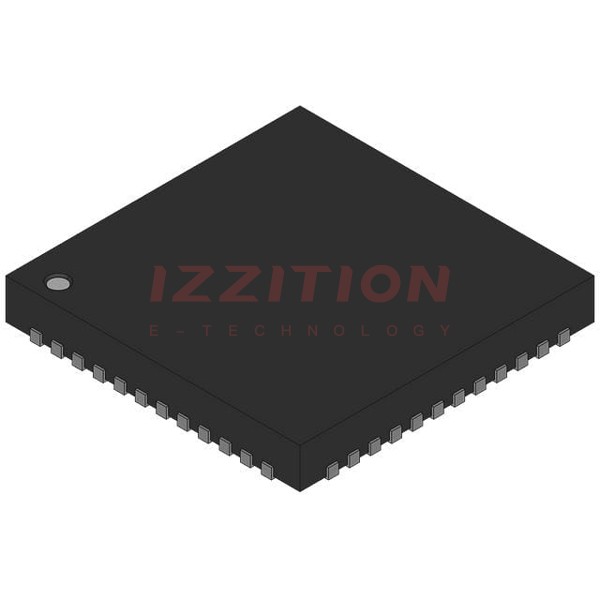

The PTN3360BBS518/BKN is an HDMI/DVI level shifter integrated circuit (IC) manufactured by NXP USA Inc. This component is designed to facilitate the transmission of high-definition video signals between different voltage levels, ensuring compatibility and signal integrity in various digital video interfaces.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | PTN3360BBS518/BKN |
| Manufacturer | NXP USA Inc. |
| Function | HDMI/DVI Level Shifter |
| Package Type | 48-HVQFN |
| RoHS Status | RoHS Compliant |
| Packaging Options | Digi-ReelR Alternate Packaging |
Key Features
- Level shifting for HDMI and DVI signals to ensure compatibility between different voltage levels.
- High-definition video signal transmission support.
- Compact 48-HVQFN package for efficient board space utilization.
- RoHS compliant, ensuring environmental sustainability.
- Available in various packaging options, including Digi-ReelR for flexible inventory management.
Applications
- High-definition display systems, including TVs, monitors, and projectors.
- Consumer electronics such as set-top boxes, gaming consoles, and Blu-ray players.
- Professional audio-visual equipment.
- Automotive infotainment systems.
- Industrial and medical display solutions.
Q & A
- What is the primary function of the PTN3360BBS518/BKN IC?
The primary function is to act as an HDMI/DVI level shifter, ensuring signal integrity and compatibility between different voltage levels. - Who is the manufacturer of the PTN3360BBS518/BKN?
The manufacturer is NXP USA Inc. - What is the package type of the PTN3360BBS518/BKN?
The package type is 48-HVQFN. - Is the PTN3360BBS518/BKN RoHS compliant?
Yes, it is RoHS compliant. - What are some common applications of the PTN3360BBS518/BKN?
Common applications include high-definition display systems, consumer electronics, professional audio-visual equipment, automotive infotainment systems, and industrial/medical display solutions. - What packaging options are available for the PTN3360BBS518/BKN?
Available packaging options include Digi-ReelR alternate packaging. - Why is level shifting important in HDMI/DVI signals?
Level shifting is crucial to ensure signal integrity and compatibility when transmitting high-definition video signals between different voltage levels. - Can the PTN3360BBS518/BKN be used in automotive systems?
Yes, it can be used in automotive infotainment systems. - Is the PTN3360BBS518/BKN suitable for industrial applications?
Yes, it is suitable for industrial display solutions. - What is the significance of RoHS compliance for the PTN3360BBS518/BKN?
Rohs compliance ensures that the component meets environmental sustainability standards by being free from hazardous substances.
