Overview

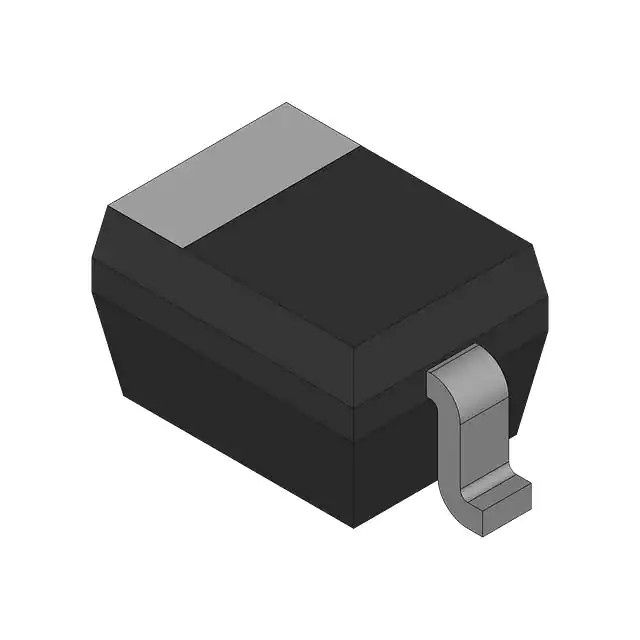

The PDZ12B/ZL115 is a low-power general purpose Zener diode manufactured by Nexperia (previously part of NXP USA Inc.). This diode is designed to operate in a wide voltage range and is packaged in a small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package, making it suitable for various electronic applications.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | PDZ12B |
| Orderable Part Number | PDZ12B,115 |
| Package | SOD323 (SC-76) |
| Voltage Range | 2.4V to 36V |
| Power Dissipation | Low-power |
Key Features
- Low-power consumption
- Wide operating voltage range (2.4V to 36V)
- Compact SOD323 (SC-76) SMD package
- Suitable for overvoltage protection, general regulation, and voltage reference functions
Applications
The PDZ12B/ZL115 Zener diode is used in various applications including overvoltage protection, general voltage regulation, and voltage reference functions. It is particularly useful in circuits where a stable voltage is required, such as in power supplies, audio equipment, and other electronic devices.
Q & A
- What is the PDZ12B/ZL115 used for? The PDZ12B/ZL115 is used for overvoltage protection, general voltage regulation, and voltage reference functions.
- What is the voltage range of the PDZ12B/ZL115? The voltage range is from 2.4V to 36V.
- What package type does the PDZ12B/ZL115 come in? It comes in a SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package.
- Who manufactures the PDZ12B/ZL115? The PDZ12B/ZL115 is manufactured by Nexperia (previously part of NXP USA Inc.).
- What are the key features of the PDZ12B/ZL115? Key features include low-power consumption, a wide operating voltage range, and a compact SMD package.
- Where can I purchase the PDZ12B/ZL115? You can purchase the PDZ12B/ZL115 from various distributors such as Digi-Key, Mouser, and Avnet.
- What is the typical application of the PDZ12B/ZL115 in power supplies? It is typically used for voltage regulation and overvoltage protection in power supplies.
- Is the PDZ12B/ZL115 RoHS compliant? Yes, the PDZ12B/ZL115 is RoHS compliant.
- What is the standard lead time for the PDZ12B/ZL115? The standard lead time is 8 weeks.
- Where can I find the datasheet for the PDZ12B/ZL115? You can find the datasheet on the official Nexperia website or through distributors like Digi-Key and Mouser.
