Overview

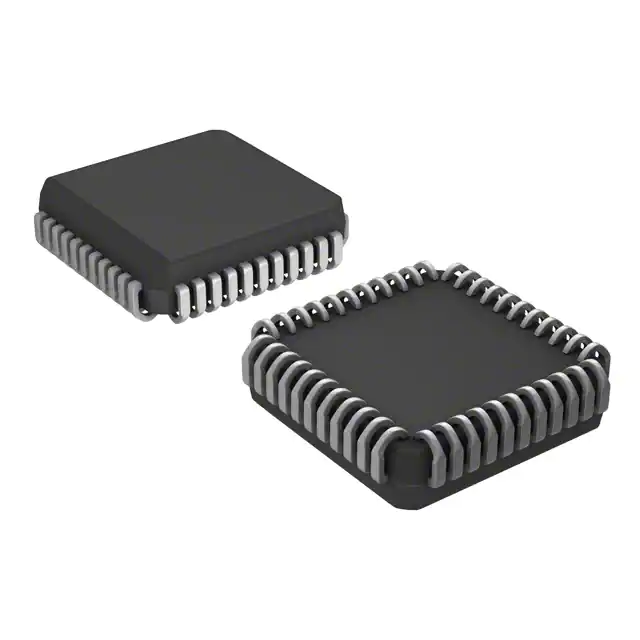

The P89V51RC2FA,512 is a low-power 8-bit microcontroller from NXP USA Inc., based on the 80C51 architecture. This microcontroller is part of the P89V51RB2/RC2/RD2 family and is known for its high performance and low power consumption. It features 32 kB of flash memory and 1024 bytes of data RAM, making it suitable for a variety of embedded system applications.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller Type | 8-bit 80C51 |
| Flash Memory | 32 kB |
| Data RAM | 1024 B |
| Operating Voltage | 5 V |
| Operating Frequency | Up to 40 MHz (X2 mode) |
| Package Type | Varying packages (e.g., PLCC44, TQFP44) |
| Temperature Range | -40°C to +85°C |
Key Features
- Low Power Consumption: Designed for low power applications, reducing energy consumption.
- X2 Mode Option: Allows the microcontroller to operate at twice the clock frequency, enhancing performance.
- High-Speed Architecture: Supports up to 40 MHz clock frequency in X2 mode.
- On-Chip Flash and RAM: 32 kB of flash memory and 1024 bytes of data RAM for efficient program and data storage.
- Peripheral Support: Includes various peripherals such as timers, counters, and serial communication interfaces.
Applications
The P89V51RC2FA,512 microcontroller is versatile and can be used in a wide range of applications, including:
- Industrial Control Systems: For controlling and monitoring industrial processes.
- Consumer Electronics: In devices such as remote controls, appliances, and other consumer products.
- Automotive Systems: For various automotive applications requiring low power and high reliability.
- Medical Devices: In medical equipment that requires precise control and low power consumption.
Q & A
- What is the P89V51RC2FA,512 microcontroller based on?
The P89V51RC2FA,512 is based on the 80C51 microcontroller architecture. - How much flash memory does the P89V51RC2FA,512 have?
The P89V51RC2FA,512 has 32 kB of flash memory. - What is the maximum operating frequency of the P89V51RC2FA,512 in X2 mode?
The maximum operating frequency in X2 mode is up to 40 MHz. - How much data RAM does the P89V51RC2FA,512 have?
The P89V51RC2FA,512 has 1024 bytes of data RAM. - What is the operating voltage of the P89V51RC2FA,512?
The operating voltage is 5 V. - What are some common applications of the P89V51RC2FA,512?
Common applications include industrial control systems, consumer electronics, automotive systems, and medical devices. - Does the P89V51RC2FA,512 support low power consumption?
Yes, the P89V51RC2FA,512 is designed for low power consumption. - What is the temperature range for the P89V51RC2FA,512?
The temperature range is -40°C to +85°C. - What peripherals are supported by the P89V51RC2FA,512?
The microcontroller supports various peripherals such as timers, counters, and serial communication interfaces. - Where can I find detailed specifications for the P89V51RC2FA,512?
Detailed specifications can be found on the NXP official website, Digi-Key, and other electronic component distributors.
