Overview
The P89V51RB2FA,529 is an 8-bit microcontroller from NXP USA Inc., based on the 8051 architecture. This microcontroller is part of the 89V series and is known for its robust features and versatility. It operates at a clock speed of up to 40 MHz and is designed for a wide range of applications requiring high performance and low power consumption.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Family | 8051 |
| CPU Speed | Up to 40 MHz |
| Flash Memory | 16 KB (16K x 8) |
| RAM | 1 KB |
| Operating Voltage | 5 V |

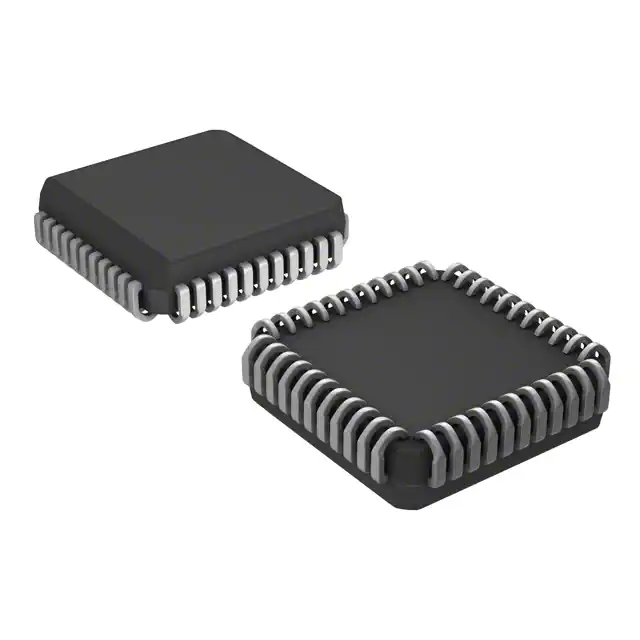

| Package Type | 44-PLCC (16.59x16.59) |
| Clock Mode | 12-clock (default) or 6-clock mode |
| Programming | Parallel and In-System Programming (ISP), In-Application Programming (IAP) |
| Timers/Counters | Three 16-bit timers/counters |
| Interrupt Sources | Eight interrupt sources with four priority levels |
Key Features
- 80C51 CPU Core: Provides compatibility with the 8051 instruction set.
- X2 Mode Option: Allows the microcontroller to run at twice the throughput at the same clock frequency or reduce the clock frequency by half to lower EMI.
- Flash Program Memory: Supports parallel programming and ISP/IAP for easy firmware updates.
- Peripheral Interface Controllers (PCA): Includes PWM and capture/compare functions.
- I/O Ports: Four 8-bit I/O ports with three high-current port 1 pins (16 mA each).
- Watchdog Timer: Programmable watchdog timer for system reliability.
- Low Power Modes: Power-down mode with external interrupt wake-up and idle mode.
- Brownout Detection: Protects the system from voltage drops.
Applications
The P89V51RB2FA,529 microcontroller is suitable for a variety of applications, including:
- Industrial Control Systems: Due to its robust features and low power consumption, it is ideal for industrial automation and control systems.
- Consumer Electronics: Used in various consumer electronic devices that require high performance and reliability.
- Automotive Systems: Suitable for automotive applications where reliability and low power consumption are critical.
- Medical Devices: Can be used in medical devices that require precise control and low power consumption.
Q & A
- What is the CPU core of the P89V51RB2FA,529 microcontroller?
The CPU core is based on the 80C51 architecture. - What is the maximum clock speed of the P89V51RB2FA,529?
The maximum clock speed is up to 40 MHz. - How much flash memory does the P89V51RB2FA,529 have?
The microcontroller has 16 KB (16K x 8) of flash memory. - What are the programming options available for the P89V51RB2FA,529?
The microcontroller supports parallel programming, In-System Programming (ISP), and In-Application Programming (IAP). - Does the P89V51RB2FA,529 have any low power modes?
Yes, it has power-down mode with external interrupt wake-up and idle mode. - What is the X2 mode option in the P89V51RB2FA,529?
The X2 mode option allows the microcontroller to run at twice the throughput at the same clock frequency or reduce the clock frequency by half to lower EMI. - How many interrupt sources does the P89V51RB2FA,529 have?
The microcontroller has eight interrupt sources with four priority levels. - What is the package type of the P89V51RB2FA,529?
The package type is 44-PLCC (16.59x16.59). - Does the P89V51RB2FA,529 have brownout detection?
Yes, it has brownout detection to protect the system from voltage drops. - What are some common applications of the P89V51RB2FA,529?
Common applications include industrial control systems, consumer electronics, automotive systems, and medical devices.
