Overview
The P87LPC764BDH,518 is an 8-bit microcontroller from NXP USA Inc., designed for a variety of embedded system applications. This microcontroller is part of the LPC700 series, known for its low power consumption, high performance, and robust feature set. It is particularly suited for applications requiring a balance between processing power and energy efficiency.
Key Specifications
| Specification | Value |
|---|---|
| Part Number | P87LPC764BDH,518 |
| Manufacturer | NXP USA Inc. |
| Microcontroller Type | 8-bit |
| Program Memory | 4 KB OTP (One-Time Programmable) |

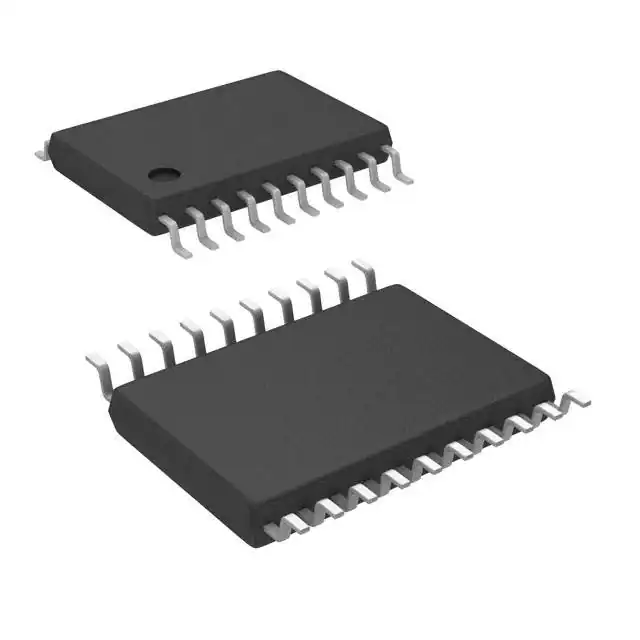

| Package / Case | 20-TSSOP (Thin Shrink Small Outline Package) |
| Operating Voltage | 2.4 V to 3.6 V |
| Operating Temperature | -40°C to 85°C |
| Clock Speed | Up to 7.3728 MHz |
| RAM | 256 bytes |
| I/O Pins | 18 |
| Timers | 2 x 16-bit, 1 x watchdog timer |
Key Features
- Low power consumption with a typical current of 1.5 mA at 3.3V and 3.6 MHz.
- High-speed 8-bit 80C51 CPU with 7.3728 MHz clock speed.
- 4 KB of OTP program memory and 256 bytes of RAM.
- 18 I/O pins with programmable pull-up resistors.
- Two 16-bit timers and one watchdog timer.
- Serial communication capabilities including UART and SPI.
- On-chip oscillator with internal RC oscillator option.
Applications
The P87LPC764BDH,518 microcontroller is versatile and can be used in a wide range of applications, including:
- Industrial control systems.
- Consumer electronics such as remote controls and appliances.
- Automotive systems for dashboard controls and sensors.
- Medical devices requiring low power and high reliability.
- IoT devices and smart home automation.
Q & A
- What is the part number of this microcontroller?
The part number is P87LPC764BDH,518. - Who is the manufacturer of this microcontroller?
The manufacturer is NXP USA Inc. - What is the program memory size of this microcontroller?
The program memory size is 4 KB OTP. - What is the package type of this microcontroller?
The package type is 20-TSSOP. - What is the operating voltage range of this microcontroller?
The operating voltage range is 2.4 V to 3.6 V. - What is the maximum clock speed of this microcontroller?
The maximum clock speed is up to 7.3728 MHz. - How much RAM does this microcontroller have?
This microcontroller has 256 bytes of RAM. - How many I/O pins does this microcontroller have?
This microcontroller has 18 I/O pins. - What types of timers are available on this microcontroller?
This microcontroller has two 16-bit timers and one watchdog timer. - What are some common applications for this microcontroller?
Common applications include industrial control systems, consumer electronics, automotive systems, medical devices, and IoT devices.
