Overview
The P80C552EFA/08,518 is a single-chip 8-bit microcontroller manufactured by NXP USA Inc. This microcontroller is part of the 80C552 series and is known for its advanced CMOS process, which enhances its performance and power efficiency. It is designed to integrate various functionalities into a single chip, making it a versatile component for a wide range of applications.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | 8-bit |
| CPU | 8051 CPU |
| Operating Frequency | 16 MHz |
| ADC Resolution | 10-bit |
| Timer | Capture/Compare Timer |
| Output Capabilities | High-speed outputs, PWM |

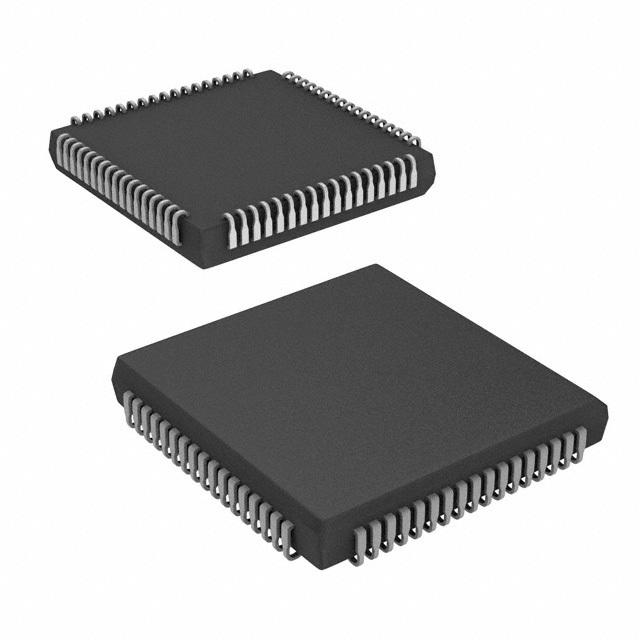

| Package Type | PLCC68 (Plastic Leaded Chip Carrier with 68 leads) |
| Voltage Range | 5V |
Key Features
- Advanced CMOS process for low power consumption and high performance.
- 10-bit Analog-to-Digital Converter (ADC) for precise analog signal processing.
- Capture/Compare Timer for flexible timing and control applications.
- High-speed outputs and Pulse Width Modulation (PWM) capabilities for efficient control of external devices.
- 8051 CPU core for compatibility with a wide range of software and development tools.
Applications
The P80C552EFA/08,518 microcontroller is suitable for various applications, including:
- Industrial control systems: For controlling and monitoring industrial processes.
- Automotive systems: For engine control, safety systems, and other automotive applications.
- Consumer electronics: For appliances, remote controls, and other consumer devices.
- Medical devices: For monitoring and control in medical equipment.
- Embedded systems: For general-purpose embedded system development.
Q & A
- What is the CPU type of the P80C552EFA/08,518 microcontroller?
The P80C552EFA/08,518 microcontroller uses an 8051 CPU core. - What is the operating frequency of the P80C552EFA/08,518?
The operating frequency is 16 MHz. - What type of ADC does the P80C552EFA/08,518 have?
The microcontroller features a 10-bit Analog-to-Digital Converter (ADC). - What package type is the P80C552EFA/08,518 available in?
The microcontroller is available in a PLCC68 package. - Does the P80C552EFA/08,518 support PWM?
Yes, it supports Pulse Width Modulation (PWM). - What is the voltage range for the P80C552EFA/08,518?
The voltage range is 5V. - What advanced features does the P80C552EFA/08,518 have?
It includes capture/compare timer, high-speed outputs, and PWM capabilities. - Is the P80C552EFA/08,518 suitable for industrial applications?
Yes, it is suitable for industrial control systems and other industrial applications. - Can the P80C552EFA/08,518 be used in automotive systems?
Yes, it can be used in various automotive applications. - What is the significance of the CMOS process in the P80C552EFA/08,518?
The CMOS process enhances the microcontroller's performance and reduces power consumption.
