MKV46F256VLH16
  • Share:

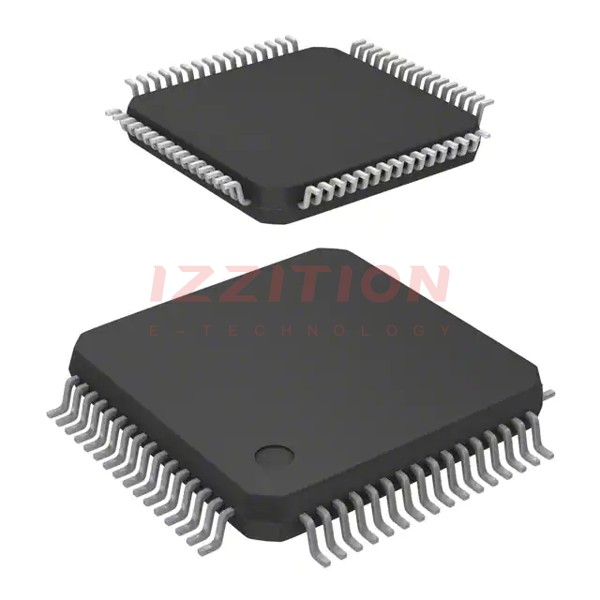

NXP USA Inc. MKV46F256VLH16

Manufacturer No:
MKV46F256VLH16
Manufacturer:
NXP USA Inc.
Package:
Tray
Description:
IC MCU 32BIT 256KB FLASH 64LQFP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MKV46F256VLH16 is a 32-bit microcontroller from NXP USA Inc., built on the Arm Cortex-M4 core. It operates at a frequency of 168 MHz and includes a floating-point unit (FPU) and a digital signal processing (DSP) unit. This microcontroller is part of the Kinetis KV series, known for its high-speed and high-accuracy peripherals, making it suitable for a variety of applications requiring advanced processing capabilities.

Key Specifications

Parameter Value
Core Arm Cortex-M4
Frequency 168 MHz
Flash Memory 256 KB
Package 64-LQFP (10x10 mm)
Floating-Point Unit (FPU) Yes
Digital Signal Processing (DSP) Unit Yes
RoHS Compliance Yes

Key Features

  • High-performance Arm Cortex-M4 core with FPU and DSP capabilities.
  • Advanced high-speed and high-accuracy peripherals.
  • 256 KB of flash memory.
  • 64-pin LQFP package.
  • RoHS compliant, ensuring environmental sustainability.

Applications

The MKV46F256VLH16 is versatile and can be used in various applications, including:

  • Industrial automation and control systems.
  • Medical devices requiring high precision and speed.
  • Automotive systems, particularly those needing advanced processing and peripheral capabilities.
  • Consumer electronics that demand high performance and low power consumption.
  • IoT devices requiring robust processing and efficient energy use.

Q & A

  1. What is the core architecture of the MKV46F256VLH16?

    The MKV46F256VLH16 is based on the Arm Cortex-M4 core.

  2. What is the operating frequency of the MKV46F256VLH16?

    The operating frequency is 168 MHz.

  3. How much flash memory does the MKV46F256VLH16 have?

    The microcontroller has 256 KB of flash memory.

  4. What package type is the MKV46F256VLH16 available in?

    The microcontroller is available in a 64-LQFP package.

  5. Does the MKV46F256VLH16 include a floating-point unit (FPU)?

    Yes, it includes an FPU.

  6. Is the MKV46F256VLH16 RoHS compliant?

    Yes, it is RoHS compliant.

  7. What are some typical applications for the MKV46F256VLH16?

    Typical applications include industrial automation, medical devices, automotive systems, consumer electronics, and IoT devices.

  8. What is the significance of the DSP unit in the MKV46F256VLH16?

    The DSP unit enhances the microcontroller's ability to handle complex signal processing tasks efficiently.

  9. How does the high-speed and high-accuracy peripheral set benefit users?

    The advanced peripherals provide users with high-speed data transfer and precise control over various interfaces, making it suitable for demanding applications.

  10. Where can I find detailed specifications and datasheets for the MKV46F256VLH16?

    Detailed specifications and datasheets can be found on NXP's official website, as well as on distributor websites like Digi-Key and Mouser.

Product Attributes

Core Processor:ARM® Cortex®-M4
Core Size:32-Bit Single-Core
Speed:168MHz
Connectivity:CANbus, I²C, SPI, UART/USART
Peripherals:DMA, LVD, POR, PWM, WDT
Number of I/O:48
Program Memory Size:256KB (256K x 8)
Program Memory Type:Flash
EEPROM Size:-
RAM Size:32K x 8
Voltage - Supply (Vcc/Vdd):1.71V ~ 3.6V
Data Converters:A/D 29x12b; D/A 1x12b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 105°C (TA)
Mounting Type:Surface Mount
Package / Case:64-LQFP
Supplier Device Package:64-LQFP (10x10)
0 Remaining View Similar

In Stock

$14.93
66

Please send RFQ , we will respond immediately.

Same Series
MKV44F128VLL16
MKV44F128VLL16
KINETIS KV44 - 168MHZ CORTEX-M4
MKV46F128VLH16
MKV46F128VLH16
IC MCU 32BIT 128KB FLASH 64LQFP
MKV46F256VLL16
MKV46F256VLL16
IC MCU 32BIT 256KB FLASH 100LQFP
MKV46F256VLH16
MKV46F256VLH16
IC MCU 32BIT 256KB FLASH 64LQFP
MKV42F128VLH16
MKV42F128VLH16
IC MCU 32BIT 128KB FLASH 64LQFP
MKV42F256VLL16
MKV42F256VLL16
IC MCU 32BIT 256KB FLASH 100LQFP
MKV44F256VLH16
MKV44F256VLH16
IC MCU 32BIT 256KB FLASH 64LQFP
MKV42F64VLH16
MKV42F64VLH16
IC MCU 32BIT 64KB FLASH 64LQFP
MKV44F64VLH16
MKV44F64VLH16
IC MCU 32BIT 64KB FLASH 64LQFP
MKV42F128VLL16
MKV42F128VLL16
IC MCU 32BIT 128KB FLASH 100LQFP
MKV44F128VLH16
MKV44F128VLH16
IC MCU 32BIT 128KB FLASH 64LQFP
MKV46F128VLL16
MKV46F128VLL16
IC MCU 32BIT 128KB FLASH 100LQFP

Similar Products

Part Number MKV46F256VLH16 MKV46F256VLL16 MKV46F256VLH16R MKV42F256VLH16 MKV44F256VLH16
Manufacturer NXP USA Inc. NXP USA Inc. NXP USA Inc. NXP USA Inc. Freescale Semiconductor
Product Status Active Active Active Active Active
Core Processor ARM® Cortex®-M4 ARM® Cortex®-M4 ARM® Cortex®-M4 ARM® Cortex®-M4 ARM® Cortex®-M4
Core Size 32-Bit Single-Core 32-Bit Single-Core 32-Bit Single-Core 32-Bit Single-Core 32-Bit Single-Core
Speed 168MHz 168MHz 168MHz 168MHz 168MHz
Connectivity CANbus, I²C, SPI, UART/USART CANbus, I²C, SPI, UART/USART CANbus, I²C, SPI, UART/USART CANbus, I²C, SPI, UART/USART CANbus, I²C, SPI, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT DMA, LVD, POR, PWM, WDT DMA, LVD, POR, PWM, WDT DMA, LVD, POR, PWM, WDT DMA, LVD, POR, PWM, WDT
Number of I/O 48 74 48 48 48
Program Memory Size 256KB (256K x 8) 256KB (256K x 8) 256KB (256K x 8) 256KB (256K x 8) 256KB (256K x 8)
Program Memory Type Flash Flash Flash Flash Flash
EEPROM Size - - - - -
RAM Size 32K x 8 32K x 8 32K x 8 32K x 8 32K x 8
Voltage - Supply (Vcc/Vdd) 1.71V ~ 3.6V 1.71V ~ 3.6V 1.71V ~ 3.6V 1.71V ~ 3.6V 1.71V ~ 3.6V
Data Converters A/D 29x12b; D/A 1x12b A/D 38x12b; D/A 1x12b A/D 29x12b; D/A 1x12b A/D 29x12b A/D 29x12b; D/A 1x12b
Oscillator Type Internal Internal Internal Internal Internal
Operating Temperature -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 64-LQFP 100-LQFP 64-LQFP 64-LQFP 64-LQFP
Supplier Device Package 64-LQFP (10x10) 100-LQFP (14x14) 64-LQFP (10x10) 64-LQFP (10x10) 64-LQFP (10x10)
