Overview
The MKV10Z64VFM7P is a 32-bit microcontroller from NXP Semiconductors, part of the Kinetis KV series. It is built on the Arm Cortex-M0+ core, operating at a maximum clock frequency of 75 MHz. This microcontroller is designed to deliver high performance and efficiency, particularly in applications requiring advanced mathematical operations due to its hardware square root and divide capabilities. The MKV10Z64VFM7P is suitable for a wide range of applications, including industrial control, consumer electronics, and IoT devices.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | Arm Cortex-M0+ |
| Maximum Clock Frequency | 75 MHz |
| Program Memory Size | 64KB (64K x 8) FLASH |
| RAM Size | 16KB |
| ADC Resolution | 16 bit |
| DAC Resolution | 12 bit |
| Number of I/Os | 28 |
| Supply Voltage | 1.71 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 105°C (TA) |

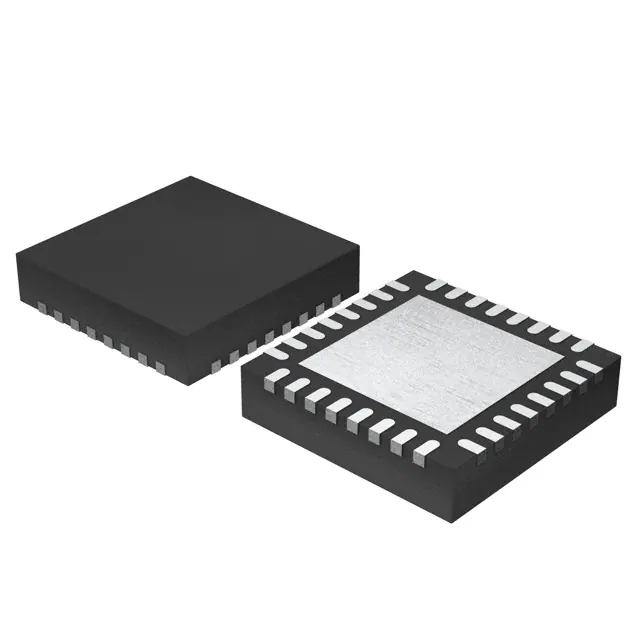

| Package / Case | 32-VFQFN Exposed Pad |
| Peripherals | DMA, LVD, POR, WDT |
| Connectivity | I²C, SPI, UART/USART |
Key Features
- High-Performance Core: The Arm Cortex-M0+ core provides a 27% increase in performance in mathematical operations compared to previous generations.
- Advanced Math Capabilities: Hardware square root and divide capabilities enhance the microcontroller's mathematical processing efficiency.
- Low Power Consumption: Optimized for low power usage, making it suitable for battery-powered and energy-efficient applications.
- Robust Peripherals: Includes DMA, LVD, POR, and WDT for comprehensive system management.
- Flexible Connectivity: Supports I²C, SPI, and UART/USART for various communication needs.
- High Resolution ADC and DAC: 16-bit ADC and 12-bit DAC for precise analog-to-digital and digital-to-analog conversions.
Applications
- Industrial Control Systems: Suitable for control and monitoring in industrial environments due to its robust peripherals and high performance.
- Consumer Electronics: Ideal for smart home devices, wearables, and other consumer electronics requiring efficient processing and low power consumption.
- IoT Devices: Perfect for Internet of Things applications that need reliable, efficient, and feature-rich microcontrollers.
- Automotive Systems: Can be used in various automotive applications such as infotainment systems, driver assistance systems, and more.
Q & A
- What is the core processor of the MKV10Z64VFM7P?
The core processor is the Arm Cortex-M0+.
- What is the maximum clock frequency of the MKV10Z64VFM7P?
The maximum clock frequency is 75 MHz.
- How much program memory does the MKV10Z64VFM7P have?
The program memory size is 64KB (64K x 8) FLASH.
- What is the RAM size of the MKV10Z64VFM7P?
The RAM size is 16KB.
- What are the supply voltage ranges for the MKV10Z64VFM7P?
The supply voltage ranges from 1.71 V to 3.6 V.
- What are the operating temperature ranges for the MKV10Z64VFM7P?
The operating temperature ranges from -40°C to 105°C (TA).
- What peripherals does the MKV10Z64VFM7P support?
The peripherals include DMA, LVD, POR, and WDT.
- What connectivity options are available on the MKV10Z64VFM7P?
The microcontroller supports I²C, SPI, and UART/USART.
- What is the package type of the MKV10Z64VFM7P?
The package type is 32-VFQFN Exposed Pad.
- What are some typical applications of the MKV10Z64VFM7P?
Typical applications include industrial control systems, consumer electronics, IoT devices, and automotive systems.
