Overview
The MKV10Z64VFM7 is a 32-bit microcontroller from NXP Semiconductors, part of the Kinetis V Series. It is built on the Arm Cortex-M0+ core, operating at a frequency of 75 MHz. This microcontroller is designed to deliver high performance and efficiency, making it suitable for a variety of applications that require robust processing capabilities. The MKV10Z64VFM7 features 64 KB of flash memory and 16 KB of RAM, along with a range of peripherals and interfaces that enhance its functionality.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Part Number | MKV10Z64VFM7 |
| Core Processor | ARM® Cortex®-M0+ |
| Operating Frequency | 75 MHz |
| Program Memory Type | FLASH |
| Program Memory Size | 64 KB (64K x 8) |
| RAM Size | 16 KB (16K x 8) |

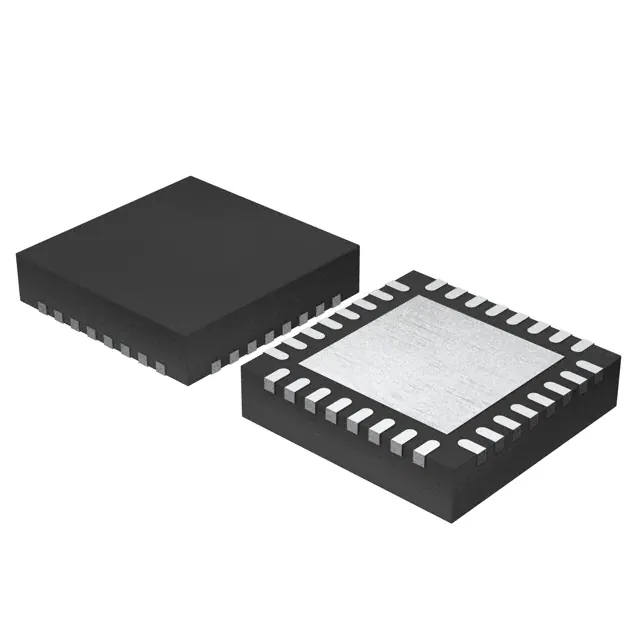

| Package / Case | 32-VFQFN Exposed Pad |
| Voltage - Supply (Vcc/Vdd) | 1.71 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Number of I/O | 28 |
| Peripherals | DMA, LVD, POR, WDT |
| Data Converters | A/D 2x16b, D/A 1x12b |
| Connectivity | I²C, SPI, UART/USART |
Key Features
- High-Performance Core: Built on the Arm Cortex-M0+ core, providing a 27% increase in performance in math-intensive applications.
- Memory and Storage: 64 KB of flash memory and 16 KB of RAM.
- Peripheral Set: Includes DMA, LVD, POR, and WDT for enhanced system control and reliability.
- Analog and Digital Converters: Features 2x16-bit ADC and 1x12-bit DAC.
- Communication Interfaces: Supports I²C, SPI, and UART/USART for versatile communication options.
- Power Efficiency: Operates within a voltage range of 1.71 V to 3.6 V, making it suitable for battery-powered devices.
Applications
- Industrial Automation: Suitable for control systems, motor control, and other industrial automation tasks.
- Consumer Electronics: Can be used in various consumer devices requiring efficient processing and low power consumption.
- Medical Devices: Applicable in medical devices that require precise control and reliable operation.
- Automotive Systems: Can be integrated into automotive systems for control and monitoring functions.
- IoT Devices: Ideal for Internet of Things (IoT) applications due to its low power consumption and robust processing capabilities.
Q & A
- What is the core processor of the MKV10Z64VFM7? The core processor is the ARM® Cortex®-M0+.
- What is the operating frequency of the MKV10Z64VFM7? The operating frequency is 75 MHz.
- How much flash memory does the MKV10Z64VFM7 have? It has 64 KB of flash memory.
- What is the RAM size of the MKV10Z64VFM7? The RAM size is 16 KB.
- What are the communication interfaces supported by the MKV10Z64VFM7? It supports I²C, SPI, and UART/USART.
- What is the operating temperature range of the MKV10Z64VFM7? The operating temperature range is -40°C to 105°C (TA).
- How many I/O pins does the MKV10Z64VFM7 have? It has 28 I/O pins.
- What are the peripherals included in the MKV10Z64VFM7? The peripherals include DMA, LVD, POR, and WDT.
- Does the MKV10Z64VFM7 have any analog and digital converters? Yes, it features 2x16-bit ADC and 1x12-bit DAC.
- What is the package type of the MKV10Z64VFM7? The package type is 32-VFQFN Exposed Pad.
