Overview

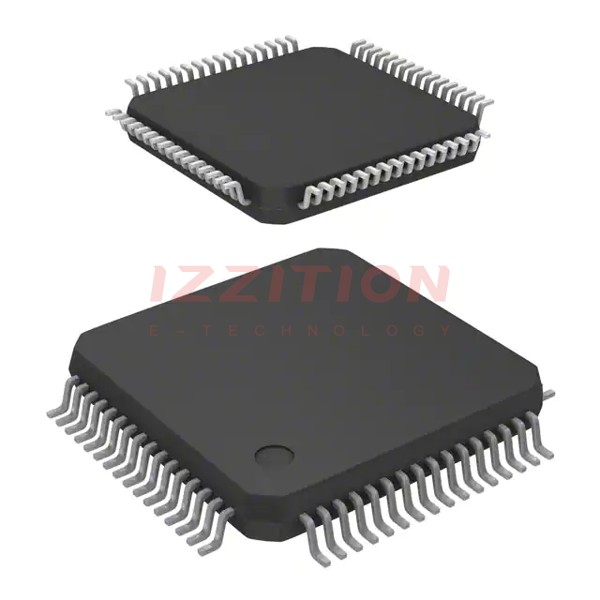

The MKS22FN256VLH12 is a 32-bit microcontroller (MCU) produced by NXP USA Inc., part of their K Series based on the ARM Cortex-M4 core. This MCU operates at a frequency of 120 MHz and includes a floating-point unit (FPU). It is designed to offer a robust set of features, including full-speed USB 2.0 OTG and dual CAN interfaces, making it suitable for a variety of applications that require high performance and connectivity.
Key Specifications
| Parameter | Value |
|---|---|
| Processor Core | ARM Cortex-M4 with FPU |
| Operating Frequency | 120 MHz |
| Flash Memory | 256 KB |
| Package Type | 64-pin LQFP |
| Number of ADC Channels | 2 Channel |
| Number of Timers/Counters | 3 Timer |
| USB Interface | Full-speed USB 2.0 OTG |
| CAN Interface | Dual CAN |
Key Features
- High-Performance Core: ARM Cortex-M4 core with a floating-point unit (FPU) operating at 120 MHz.
- USB Connectivity: Full-speed USB 2.0 OTG for versatile connectivity options.
- CAN Interface: Dual CAN interfaces for robust communication in automotive and industrial applications.
- ADC Channels: 2-channel ADC for analog-to-digital conversion.
- Timers/Counters: 3 timers/counters for precise timing and control.
Applications
- Automotive Systems: Suitable for various automotive applications due to its robust CAN interface and high-performance core.
- Industrial Control: Ideal for industrial control systems requiring high-speed processing and reliable communication interfaces.
- Consumer Electronics: Can be used in consumer electronics that require advanced USB connectivity and processing capabilities.
- Medical Devices: Applicable in medical devices that need precise timing, high-performance processing, and reliable communication.
Q & A
- What is the processor core of the MKS22FN256VLH12?
The processor core is the ARM Cortex-M4 with a floating-point unit (FPU).
- What is the operating frequency of the MKS22FN256VLH12?
The operating frequency is 120 MHz.
- How much flash memory does the MKS22FN256VLH12 have?
The MKS22FN256VLH12 has 256 KB of flash memory.
- What type of package does the MKS22FN256VLH12 come in?
The package type is a 64-pin LQFP.
- Does the MKS22FN256VLH12 support USB?
Yes, it supports full-speed USB 2.0 OTG.
- How many CAN interfaces does the MKS22FN256VLH12 have?
The MKS22FN256VLH12 has dual CAN interfaces.
- What are the primary applications of the MKS22FN256VLH12?
The primary applications include automotive systems, industrial control, consumer electronics, and medical devices.
- How many ADC channels does the MKS22FN256VLH12 have?
The MKS22FN256VLH12 has 2 ADC channels.
- How many timers/counters does the MKS22FN256VLH12 have?
The MKS22FN256VLH12 has 3 timers/counters.
- Who is the manufacturer of the MKS22FN256VLH12?
The manufacturer is NXP USA Inc.
