Overview
The MKL33Z256VMP4 is a microcontroller from NXP USA Inc., part of the Kinetis KL3x family. This device is optimized for cost-sensitive and battery-powered applications, particularly those requiring low-power segment LCD capabilities. It features an ARM® Cortex®-M0+ core operating at up to 48 MHz, making it suitable for a wide range of consumer and industrial applications. The microcontroller is designed to provide ultra-low power performance along with a rich suite of analog, communication, timing, and control peripherals.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | Up to 48 MHz |
| Program Memory Size | 256 KB (256K x 8) FLASH |
| RAM Size | 32 KB (32K x 8) |
| ROM Size | 16 KB with built-in bootloader |
| Voltage - Supply (Vcc/Vdd) | 1.71 V to 3.6 V |
| Operating Temperature | -40°C to 105°C |

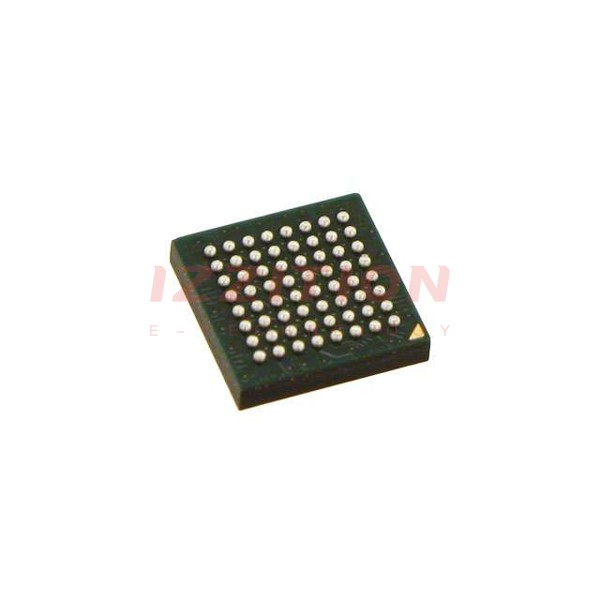

| Package / Case | 64-MAPBGA (5x5 mm) |
| Number of I/O | Up to 54 general-purpose input/output pins (GPIO) |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | DMA, I²S, LCD, LVD, POR, PWM, WDT |
| Data Converters | A/D 20x16b; D/A 1x12b |
Key Features
- Ultra-low power performance with down to 54uA/MHz in very low power run mode and 1.96uA in deep sleep mode (RAM + RTC retained).
- Low power segment LCD support up to 28x8 or 32x4 segments.
- Embedded ROM with a built-in bootloader for flexible program upgrades.
- High accuracy internal voltage and clock reference.
- FlexIO to support any standard and customized serial peripheral emulation.
- Multiple communication interfaces including UART, I²C, SPI, and I²S.
- Advanced flash security and an 80-bit unique identification number per chip.
- High-speed analog comparator and a 12-bit DAC.
- Multiple timer and PWM modules, including a real-time clock).
Applications
The MKL33Z256VMP4 is well-suited for various applications, including:
- Battery-powered devices due to its ultra-low power consumption.
- Consumer electronics requiring low-power segment LCD displays).
- Industrial control systems that need robust communication and timing peripherals).
- IoT devices that require efficient power management and multiple communication interfaces.
- Automotive and medical devices where low power and high reliability are critical).
Q & A
- What is the core processor of the MKL33Z256VMP4?
The core processor is an ARM® Cortex®-M0+ operating at up to 48 MHz.
- How much program memory does the MKL33Z256VMP4 have?
The device has 256 KB of program flash memory.
- What is the voltage supply range for the MKL33Z256VMP4?
The voltage supply range is from 1.71 V to 3.6 V.
- What types of communication interfaces does the MKL33Z256VMP4 support?
The device supports I²C, SPI, UART/USART, and I²S interfaces.
- What is the operating temperature range for the MKL33Z256VMP4?
The operating temperature range is from -40°C to 105°C.
- How many GPIO pins does the MKL33Z256VMP4 have?
The device has up to 54 general-purpose input/output pins (GPIO).
- What is the package type of the MKL33Z256VMP4?
The package type is 64-MAPBGA (5x5 mm).
- Does the MKL33Z256VMP4 support low-power modes?
Yes, it supports very low power run mode and deep sleep mode with RAM and RTC retained).
- What kind of LCD support does the MKL33Z256VMP4 offer?
The device supports low-power segment LCD up to 28x8 or 32x4 segments).
- Is the MKL33Z256VMP4 RoHS compliant?
Yes, the MKL33Z256VMP4 is RoHS compliant).
