Overview
The MK66FN2M0VLQ18R,528 is a high-performance microcontroller from NXP USA Inc., part of the Kinetis K66 series. This microcontroller is based on the Arm Cortex-M4 core and is designed for a wide range of applications requiring advanced processing capabilities, low power consumption, and extensive peripheral support.
It is particularly suited for applications in the industrial, automotive, and consumer electronics sectors, where reliability, performance, and power efficiency are critical. The device is part of NXP's Kinetis family, known for its robust feature set and versatility.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Core | Arm Cortex-M4 |
| Operating Frequency | Up to 180 MHz |
| Flash Memory | 1 MB |
| SRAM | 256 KB |

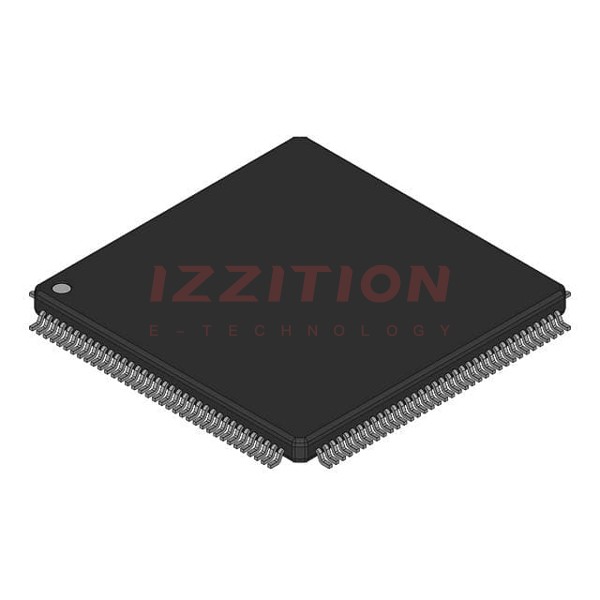

| Package Type | LQFP144 (SOT486) |
| Supply Voltage | 1.71 V to 3.6 V |
| Temperature Range | -40°C to 105°C |
| Compliance | EU RoHS Compliant, Lead-Free, Halogen-Free |
Key Features
- High-Performance Processing: The Arm Cortex-M4 core provides high processing power and efficiency.
- Extensive Peripherals: Includes USB, Ethernet, CAN, SPI, I2C, UART, and other communication interfaces.
- Low Power Consumption: Optimized for low power modes to extend battery life in portable applications.
- Security Features: Includes hardware encryption and secure boot mechanisms for enhanced security.
- Robust Memory Options: 1 MB of flash memory and 256 KB of SRAM for ample storage and execution space.
Applications
- Industrial Automation: Suitable for control systems, motor control, and industrial networking.
- Automotive Systems: Used in automotive infotainment, driver assistance systems, and vehicle networking.
- Consumer Electronics: Ideal for smart home devices, wearables, and other consumer electronics requiring advanced processing.
- Medical Devices: Can be used in medical devices that require high reliability and performance.
Q & A
- What is the core type of the MK66FN2M0VLQ18R,528 microcontroller?
The core type is Arm Cortex-M4.
- What is the maximum operating frequency of this microcontroller?
The maximum operating frequency is up to 180 MHz.
- How much flash memory does the MK66FN2M0VLQ18R,528 have?
The device has 1 MB of flash memory.
- What is the package type of the MK66FN2M0VLQ18R,528?
The package type is LQFP144 (SOT486).
- Is the MK66FN2M0VLQ18R,528 compliant with EU RoHS directives?
Yes, it is EU RoHS Compliant, Lead-Free, and Halogen-Free.
- What are some of the key peripherals available on this microcontroller?
Key peripherals include USB, Ethernet, CAN, SPI, I2C, and UART.
- What is the temperature range for the MK66FN2M0VLQ18R,528?
The temperature range is -40°C to 105°C.
- Does the MK66FN2M0VLQ18R,528 support low power modes?
Yes, it is optimized for low power modes to extend battery life.
- What security features are available on this microcontroller?
It includes hardware encryption and secure boot mechanisms.
- Where can I find detailed chemical content information for the MK66FN2M0VLQ18R,528?
Detailed chemical content information can be found on NXP's official website under the product's compliance documentation.
