Overview

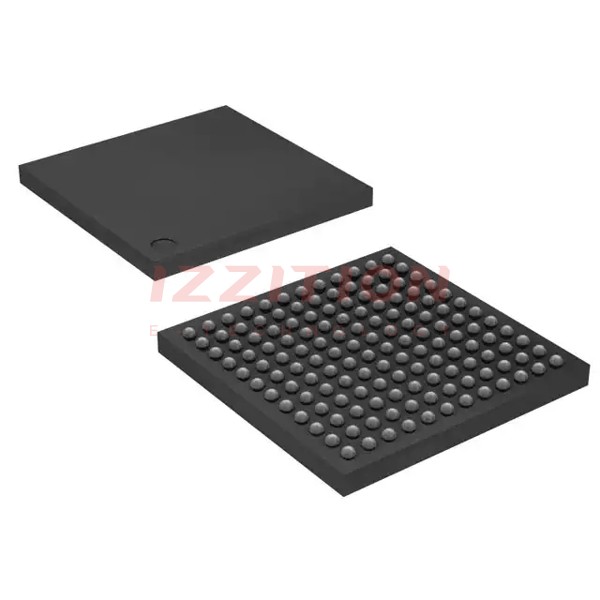

The MK63FN1M0VMD12 is a high-performance microcontroller chip from NXP Semiconductors, part of the Kinetis K63 family. It features an ARM Cortex-M4 core operating at up to 120 MHz, along with a rich set of peripherals and memory options. This microcontroller is well-suited for a wide range of industrial and consumer applications, including IoT devices, automotive systems, and more.
Key Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Manufacturer | NXP Semiconductors | Series | K63_120 |
| Mounting Style | SMD/SMT | Core | ARM Cortex M4 |
| Program Memory Size | 1 MB | Data Bus Width | 32 bit |
| ADC Resolution | 16 bit | Maximum Clock Frequency | 120 MHz |
| Number of I/Os | 95 I/O | Data RAM Size | 256 kB |
| Supply Voltage - Min | 1.71 V | Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | -40°C | Maximum Operating Temperature | +105°C |
| Packaging | Tray | Analog Supply Voltage | 1.71 V to 3.6 V |
| Brand | NXP Semiconductors | DAC Resolution | 12 bit |
| Data RAM Type | SRAM | Interface Type | CAN, I2C, I2S, SPI, UART, USB |
| Moisture Sensitive | Yes | Product | MCU+DSP+FPU |
| Program Memory Type | Flash | Factory Pack Quantity | 800 |
| Tradename | Kinetis | Watchdog Timers | Watchdog Timer |
Key Features
- ARM Cortex-M4 core operating at up to 120 MHz
- 1 MB of flash memory and 256 kB of SRAM
- 16-bit ADC and 12-bit DAC
- Multiple interfaces: CAN, I2C, I2S, SPI, UART, USB
- Low power consumption with various low-power modes
- Advanced security features
- Operating temperature range: -40°C to +105°C
- Rich set of peripherals including DMA, PWM, WDT, and more
- High-speed data processing capabilities
- Enhanced peripheral access and robust timing and control functions
Applications
- Automotive electronics and vehicle tracking systems
- Industrial control systems
- Consumer electronics
- Internet of Things (IoT) devices
- Building management systems and asset tracking technology
- Communication devices and Ethernet-based applications
Q & A
- Q: What is the core architecture of the MK63FN1M0VMD12 microcontroller?
A: The MK63FN1M0VMD12 features an ARM Cortex-M4 core.
- Q: What is the maximum operating frequency of the MK63FN1M0VMD12?
A: The maximum operating frequency is up to 120 MHz.
- Q: How much flash memory and SRAM does the MK63FN1M0VMD12 have?
A: It has 1 MB of flash memory and 256 kB of SRAM.
- Q: What are the supply voltage ranges for the MK63FN1M0VMD12?
A: The supply voltage ranges from 1.71 V to 3.6 V.
- Q: What are the operating temperature ranges for the MK63FN1M0VMD12?
A: The operating temperature range is from -40°C to +105°C.
- Q: What types of interfaces does the MK63FN1M0VMD12 support?
A: It supports CAN, I2C, I2S, SPI, UART, and USB interfaces.
- Q: What is the packaging type for the MK63FN1M0VMD12?
A: It comes in a 144-MAPBGA package.
- Q: How many I/O pins does the MK63FN1M0VMD12 have?
A: It has 95 I/O pins.
- Q: What are some typical applications for the MK63FN1M0VMD12?
A: Typical applications include automotive electronics, industrial control systems, consumer electronics, IoT devices, and more.
- Q: How does one ensure the authenticity of the MK63FN1M0VMD12 from NXP Semiconductors?
A: Ensure authenticity by purchasing from authorized distributors and verifying the credentials of the suppliers.
- Q: Where can I find detailed information about the MK63FN1M0VMD12, such as application notes and factory information?
A: Detailed information can be found on NXP Semiconductors' official website, as well as through authorized distributors like Ovaga and Future Electronics.
