Overview
The MK61FN1M0VMJ12 is a 32-bit microcontroller from NXP USA Inc., part of the Kinetis K60 series. It is based on the ARM Cortex-M4 RISC architecture core, which operates at a maximum frequency of 120 MHz. This microcontroller is designed to provide high computational power, making it suitable for various applications including control algorithms, sensor data processing, and audio processing.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Speed | 120 MHz |
| Program Memory Size | 1 MB (1M x 8) FLASH |
| RAM Size | 128 KB |
| Voltage - Supply (Vcc/Vdd) | 1.71 V ~ 3.6 V |
| Operating Temperature Range | -40°C to +105°C |

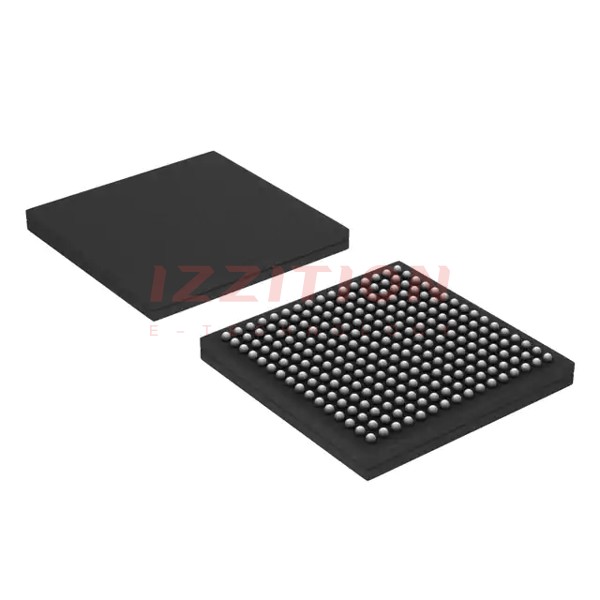

| Package / Case | 256-LBGA (17x17 mm) |
| Number of I/O | 128 |
| Connectivity | CAN, EBI/EMI, Ethernet, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT, ADC, Comparator, CRC, DAC |
| Data Converters | 4x 16-bit SAR ADCs, 2x 12-bit DACs |
| Oscillator Type | Internal, External |
Key Features
- High-performance ARM Cortex-M4 core with DSP instructions, delivering 1.25 Dhrystone MIPS per MHz.
- Up to 1 MB of program flash memory and 128 KB of RAM.
- Multiple communication interfaces including Ethernet, USB, CAN, SPI, I²C, and UART/USART.
- Advanced analog modules: four 16-bit SAR ADCs, two 12-bit DACs, and four analog comparators.
- Security and integrity modules: hardware CRC, tamper detect, secure storage, and hardware encryption supporting DES, 3DES, AES, MD5, SHA-1, and SHA-256 algorithms.
- Low-power modes and power optimization features.
- 32-channel DMA controller and external watchdog monitor.
- Low-power hardware touch sensor interface (TSI) and general-purpose input/output.
Applications
- Industrial control systems and automation.
- Sensor data processing and IoT devices.
- Audio processing and multimedia applications.
- Medical devices requiring high computational power and low power consumption.
- Automotive systems, including infotainment and driver assistance systems.
- Consumer electronics such as smart home devices and wearables.
Q & A
- What is the core processor of the MK61FN1M0VMJ12?
The core processor is the ARM Cortex-M4.
- What is the maximum operating frequency of the MK61FN1M0VMJ12?
The maximum operating frequency is 120 MHz.
- How much program flash memory does the MK61FN1M0VMJ12 have?
The MK61FN1M0VMJ12 has 1 MB (1M x 8) of program flash memory.
- What is the voltage supply range for the MK61FN1M0VMJ12?
The voltage supply range is 1.71 V to 3.6 V.
- What are the key peripherals of the MK61FN1M0VMJ12?
The key peripherals include DMA, I²S, LVD, POR, PWM, WDT, ADC, Comparator, CRC, and DAC.
- Does the MK61FN1M0VMJ12 support Ethernet and USB interfaces?
- What are the operating temperature ranges for the MK61FN1M0VMJ12?
The operating temperature range is -40°C to +105°C.
- What is the package type of the MK61FN1M0VMJ12?
The package type is 256-LBGA (17x17 mm).
- Does the MK61FN1M0VMJ12 have security features?
- What are some typical applications of the MK61FN1M0VMJ12?
Typical applications include industrial control systems, sensor data processing, audio processing, medical devices, automotive systems, and consumer electronics.
