Overview

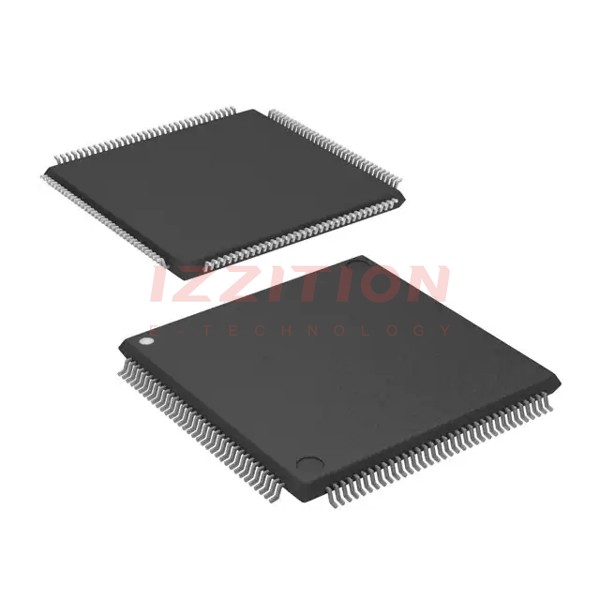

The MK60DN512VLQ10 is a 32-bit microcontroller from NXP USA Inc., part of the Kinetis K60 series. It is based on the Arm Cortex-M4 core and is designed for a wide range of applications requiring high performance, low power consumption, and advanced peripheral capabilities.
Key Specifications
| Specification | Value |
|---|---|
| Core Type | Arm Cortex-M4 |
| Operating Frequency [Max] (MHz) | 100 |
| SRAM (kB) | 128 |
| Flash (kB) | 512 |
| UART | 6 |
| SPI | 3 |
| I2C | 2 |
| USB Controllers | Present |
| Voltage Range (V) | 1.71 to 3.6 |
Key Features
- Ultra-Low-Power Modes: The microcontroller features 10 low-power modes with power and clock gating for optimal peripheral activity and recovery times.
- Advanced Peripherals: Includes multiple UART, SPI, I2C, and USB controllers, providing versatile communication options.
- High Performance: Operates at a maximum frequency of 100 MHz, ensuring high processing capabilities.
- Memory and Storage: Equipped with 512 kB of flash memory and 128 kB of SRAM, providing ample space for code and data storage.
Applications
The MK60DN512VLQ10 is suitable for a variety of applications, including industrial control systems, medical devices, consumer electronics, and automotive systems. Its low power consumption and high performance make it an ideal choice for battery-powered devices and real-time systems.
Q & A
- What is the core type of the MK60DN512VLQ10 microcontroller?
The core type is Arm Cortex-M4. - What is the maximum operating frequency of the MK60DN512VLQ10?
The maximum operating frequency is 100 MHz. - How much SRAM and flash memory does the MK60DN512VLQ10 have?
The microcontroller has 128 kB of SRAM and 512 kB of flash memory. - What are the communication peripherals available on the MK60DN512VLQ10?
The microcontroller includes 6 UARTs, 3 SPIs, 2 I2Cs, and USB controllers. - What is the voltage range of the MK60DN512VLQ10?
The voltage range is from 1.71 to 3.6 V. - Does the MK60DN512VLQ10 support low-power modes?
Yes, it supports 10 low-power modes with power and clock gating. - What are some typical applications for the MK60DN512VLQ10?
Typical applications include industrial control systems, medical devices, consumer electronics, and automotive systems. - Where can I find design files and resources for the MK60DN512VLQ10?
Design files and resources are available on the NXP website, including eCad files and symbols, footprints, and models. - Is the MK60DN512VLQ10 suitable for battery-powered devices?
Yes, due to its low power consumption, it is suitable for battery-powered devices. - Can the MK60DN512VLQ10 be used in real-time systems?
Yes, its high performance and real-time capabilities make it an ideal choice for real-time systems.
