Overview
The MK60DX256VMD10 is a microcontroller from NXP USA Inc., part of the Kinetis K60 family. It is built on the Arm® Cortex®-M4 core, operating at up to 100 MHz and featuring advanced analog integration and serial communication capabilities. This microcontroller is designed to provide high performance and power efficiency, making it suitable for a wide range of applications.
Key Specifications
| Parameter | Description | Value |
|---|---|---|
| Core | Arm® Cortex®-M4 | Up to 100 MHz |
| Flash Memory | Program flash memory | 256 KB |
| RAM | SRAM | Up to 128 KB |
| Supply Voltage | Voltage range | 1.71 to 3.6 V |
| Temperature Range | Ambient temperature range | -40 to 105°C |

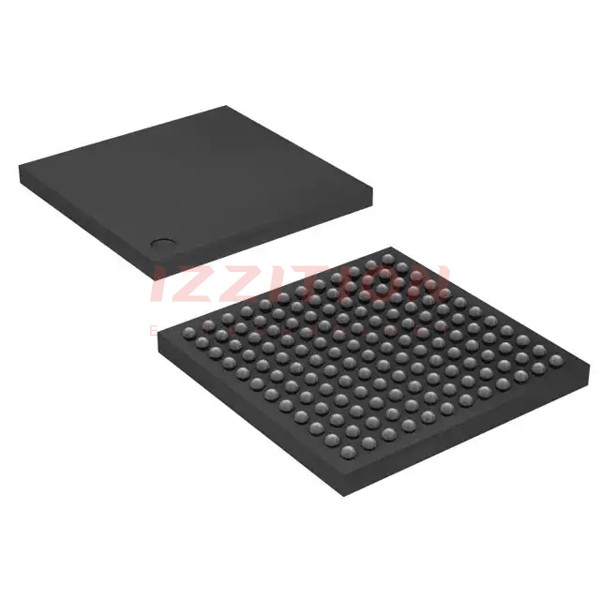

| Package | Package type | 144-MAPBGA |
| Clocks | Crystal oscillator range | 3 to 32 MHz, 32 kHz |
| Analog Modules | ADCs, DACs, etc. | Two 16-bit SAR ADCs, two 12-bit DACs, etc. |
Key Features
- High-Performance Core: Up to 100 MHz Arm® Cortex®-M4 core with DSP instructions, delivering 1.25 Dhrystone MIPS per MHz.
- Advanced Analog Integration: Includes two 16-bit SAR ADCs, two 12-bit DACs, programmable gain amplifiers (PGAs), transimpedance amplifiers, and analog comparators.
- Security and Integrity Modules: Hardware CRC module, hardware random-number generator, and hardware encryption supporting DES, 3DES, AES, MD5, SHA-1, and SHA-256 algorithms.
- Low-Power Modes: Multiple low-power modes to optimize power consumption based on application requirements.
- System Peripherals: 16-channel DMA controller, external watchdog monitor, software watchdog, and low-leakage wakeup unit.
- Human-Machine Interface: Low-power hardware touch sensor interface (TSI) and general-purpose input/output.
Applications
- Industrial Automation: Suitable for control systems, motor control, and industrial networking due to its advanced analog integration and communication capabilities.
- Medical Devices: Can be used in medical devices requiring high precision and reliability, such as diagnostic equipment and patient monitoring systems.
- Consumer Electronics: Applicable in various consumer electronics products that require high performance and low power consumption, such as smart home devices and wearables.
- Automotive Systems: Used in automotive applications requiring robust performance and reliability, such as infotainment systems and driver assistance systems.
Q & A
- What is the core architecture of the MK60DX256VMD10 microcontroller?
The MK60DX256VMD10 is based on the Arm® Cortex®-M4 core.
- What is the maximum operating frequency of the MK60DX256VMD10?
The maximum operating frequency is up to 100 MHz.
- How much flash memory does the MK60DX256VMD10 have?
The MK60DX256VMD10 has 256 KB of program flash memory.
- What is the supply voltage range for the MK60DX256VMD10?
The supply voltage range is from 1.71 to 3.6 V.
- What types of analog modules are included in the MK60DX256VMD10?
The microcontroller includes two 16-bit SAR ADCs, two 12-bit DACs, programmable gain amplifiers (PGAs), transimpedance amplifiers, and analog comparators.
- Does the MK60DX256VMD10 support any security features?
Yes, it includes hardware CRC module, hardware random-number generator, and hardware encryption supporting various algorithms.
- What are the low-power modes available in the MK60DX256VMD10?
The microcontroller has multiple low-power modes to optimize power consumption based on application requirements.
- What is the package type of the MK60DX256VMD10?
The package type is 144-MAPBGA.
- What are some typical applications of the MK60DX256VMD10?
It is suitable for industrial automation, medical devices, consumer electronics, and automotive systems.
- Does the MK60DX256VMD10 support any human-machine interface features?
Yes, it includes a low-power hardware touch sensor interface (TSI) and general-purpose input/output.
