Overview

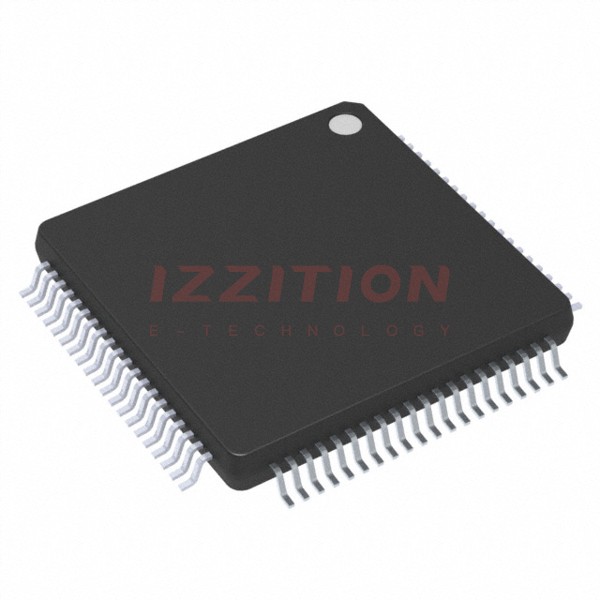

The MK10DN512VLK10R is a 32-bit microcontroller from NXP USA Inc., part of the Kinetis K10 series. It features an ARM Cortex-M4 core, high-precision analog integration, and advanced serial communication capabilities. This microcontroller is designed for a variety of applications, including embedded systems, industrial control, automotive electronics, and more.
Key Specifications
| Parameter | Value |
|---|---|
| Core | ARM Cortex-M4 |
| Maximum CPU Frequency | 100 MHz |
| Program Flash Memory | 512 KB |
| RAM | Up to 128 KB |
| Supply Voltage | 1.71 to 3.6 V |
| Temperature Range | -40 to 105°C |
| Package | 80-FQFP |
| Analog Modules | Two 16-bit SAR ADCs, 12-bit DAC, Two transimpedance amplifiers, Three analog comparators |
| Communication Interfaces | Two CAN modules, Two SPI modules, Two I2C modules, Four UART modules, SDHC, I2S module |
Key Features
- High-performance ARM Cortex-M4 core with DSP instructions, delivering 1.25 Dhrystone MIPS per MHz
- Flexible voltage operation: 1.71 to 3.6 V
- Low power consumption with multiple low-power modes
- High-density package: 80-FQFP
- Advanced analog integration: SAR ADCs, DACs, transimpedance amplifiers, and analog comparators
- Comprehensive communication interfaces: CAN, SPI, I2C, UART, SDHC, I2S
- Hardware CRC module and 128-bit unique identification (ID) number per chip
- Low-power hardware touch sensor interface (TSI)
Applications
- Embedded systems: industrial control systems, automotive electronics, medical devices
- Consumer electronics: smartphones, tablets, gaming controllers
- Aerospace and defense: military communication systems, navigation devices
- Industrial automation: manufacturing automation, process control
- Automotive: infotainment systems, advanced driver-assistance systems (ADAS)
Q & A
- What is the core architecture of the MK10DN512VLK10R?
The MK10DN512VLK10R features an ARM Cortex-M4 core. - What is the maximum CPU frequency of this microcontroller?
The maximum CPU frequency is 100 MHz. - How much program flash memory does it have?
It has 512 KB of program flash memory. - What is the operating voltage range of the MK10DN512VLK10R?
The operating voltage range is 1.71 to 3.6 V. - What are the key analog modules included in this microcontroller?
It includes two 16-bit SAR ADCs, a 12-bit DAC, two transimpedance amplifiers, and three analog comparators. - What communication interfaces are available on this microcontroller?
It features two CAN modules, two SPI modules, two I2C modules, four UART modules, an SDHC, and an I2S module. - What are the low-power features of the MK10DN512VLK10R?
It includes multiple low-power modes to provide power optimization based on application requirements. - What is the package type of the MK10DN512VLK10R?
The package type is 80-FQFP. - What are some typical applications for this microcontroller?
Typical applications include embedded systems, industrial automation, automotive electronics, and consumer electronics. - Does the MK10DN512VLK10R support any security features?
Yes, it includes a hardware CRC module and a 128-bit unique identification (ID) number per chip.
