Overview

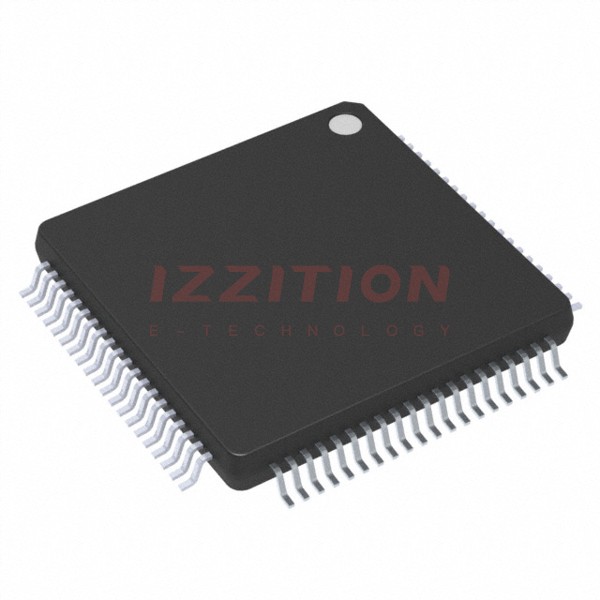

The MK10DN512VLK10 is a 32-bit microcontroller from NXP USA Inc., part of the Kinetis K10 series. These microcontrollers are known for their high-precision analog integration and advanced serial communication capabilities. They are designed to operate at a maximum frequency of 100 MHz, making them suitable for a variety of applications that require high performance and low power consumption.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | MK10DN512VLK10 |
| Core | Arm Cortex-M4 |
| Maximum Frequency | 100 MHz |
| Flash Memory | 512 KB |
| SRAM | 64 KB |
| Package Type | 80-FQFP |
| Operating Voltage | 1.71V to 3.6V |
| Temperature Range | -40°C to 105°C |
Key Features
- High-precision analog integration, including 16-bit SAR ADC and 12-bit DAC.
- Advanced serial communication interfaces such as USB, SPI, I2C, and UART.
- Low power consumption with multiple power-saving modes.
- Integrated timers, PWM modules, and watchdog timers.
- Support for various peripherals including GPIO, CAN, and Ethernet (depending on the specific variant).
Applications
- Electronic Point of Sale (EPOS) systems.
- Flow meters and other industrial measurement devices.
- Gaming controllers and other consumer electronics.
- Heating, Ventilation, and Air Conditioning (HVAC) systems.
- General-purpose industrial control and automation.
Q & A
- What is the maximum operating frequency of the MK10DN512VLK10?
The maximum operating frequency is 100 MHz.
- How much flash memory does the MK10DN512VLK10 have?
The MK10DN512VLK10 has 512 KB of flash memory.
- What is the package type of the MK10DN512VLK10?
The package type is 80-FQFP.
- What are the key analog features of the MK10DN512VLK10?
The key analog features include a 16-bit SAR ADC and a 12-bit DAC.
- What are some common applications for the MK10DN512VLK10?
Common applications include EPOS systems, flow meters, gaming controllers, and HVAC systems.
- Does the MK10DN512VLK10 support USB communication?
- What is the operating voltage range of the MK10DN512VLK10?
The operating voltage range is from 1.71V to 3.6V.
- What is the temperature range for the MK10DN512VLK10?
The temperature range is from -40°C to 105°C.
- Does the MK10DN512VLK10 have power-saving modes?
- What core does the MK10DN512VLK10 use?
The MK10DN512VLK10 uses the Arm Cortex-M4 core.
