Overview
The MC9S08PA60VLDR is an 8-bit microcontroller from NXP USA Inc., part of the S08 series. This microcontroller is designed to offer high performance and extensive on-chip integration, making it suitable for a wide range of embedded industrial control applications. It features a 40 MHz HCS08 Central Processing Unit (CPU) and supports various peripherals and interfaces, enhancing its versatility and reliability.
Key Specifications
| Parameter | Specification |
|---|---|
| Core Processor | 8-Bit HCS08 CPU |
| Core Speed | 20 MHz |
| Flash Memory | 60 KB |
| RAM | 4 KB |
| Supply Voltage | 2.7 V to 5.5 V |
| Operating Temperature | -40°C to 105°C |

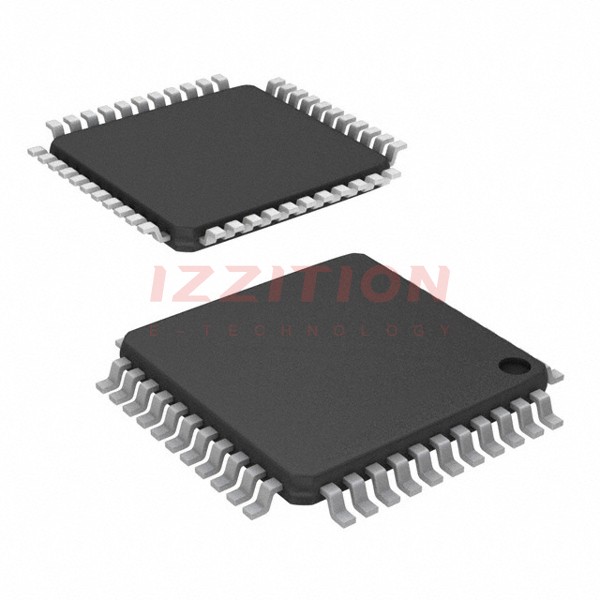

| Package Type | 44-LQFP (10x10) |
| Number of I/O Pins | 37 |
| ADC | 12-bit, 12-channel |
| Interfaces | I²C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
Key Features
- High-Performance CPU: 40 MHz HCS08 Central Processing Unit (CPU) with a 20 MHz internal bus frequency.
- Memory Options: Up to 60 KB of on-chip FLASH memory and up to 4 KB of on-chip RAM.
- Peripheral Set: Includes ADC, SCI, SPI, IIC, timers (TPM), keyboard interrupt module (KBI), and CRC module.
- Interfaces: Supports I²C, LINbus, SPI, and UART/USART interfaces.
- Power-Saving Modes: Wait and stop modes to reduce power consumption.
- System Protection: Features watchdog timer, low-voltage detection, and illegal opcode detection.
- Debugging Support: Background debugging system with breakpoint capability and on-chip in-circuit emulator (ICE) debug module.
Applications
The MC9S08PA60VLDR is particularly suited for various embedded industrial control applications, including:
- Industrial control systems
- Motor control applications
- Home automation
- Portable electronics
- Embedded systems
Q & A
- What is the core speed of the MC9S08PA60VLDR microcontroller?
The core speed is 20 MHz.
- How much flash memory does the MC9S08PA60VLDR have?
The microcontroller has 60 KB of flash memory.
- What is the operating voltage range of the MC9S08PA60VLDR?
The operating voltage range is 2.7 V to 5.5 V.
- What types of interfaces does the MC9S08PA60VLDR support?
The microcontroller supports I²C, LINbus, SPI, and UART/USART interfaces.
- What are the key peripherals included in the MC9S08PA60VLDR?
The key peripherals include ADC, SCI, SPI, IIC, timers (TPM), keyboard interrupt module (KBI), and CRC module.
- Does the MC9S08PA60VLDR have any power-saving modes?
Yes, it has wait and stop modes to reduce power consumption.
- What kind of system protection features does the MC9S08PA60VLDR offer?
The microcontroller features a watchdog timer, low-voltage detection, and illegal opcode detection.
- Is the MC9S08PA60VLDR suitable for industrial control applications?
Yes, it is particularly suited for various embedded industrial control applications.
- What is the package type of the MC9S08PA60VLDR?
The package type is 44-LQFP (10x10).
- How many I/O pins does the MC9S08PA60VLDR have?
The microcontroller has 37 I/O pins.
