MC9S08PA60VLD
  • Share:

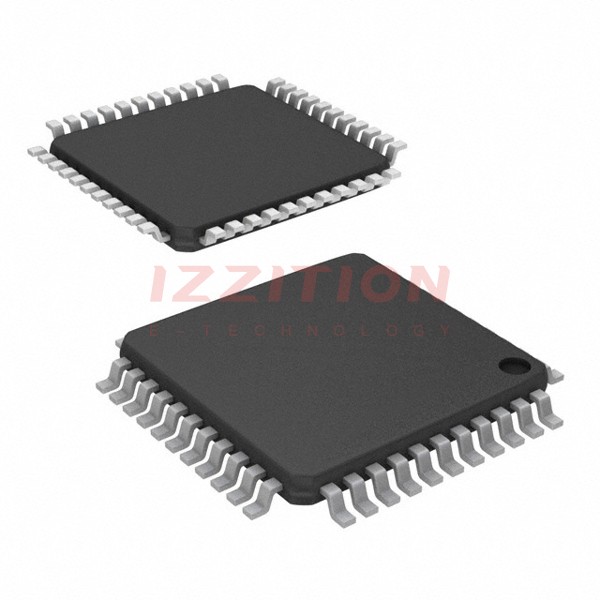

NXP USA Inc. MC9S08PA60VLD

Manufacturer No:
MC9S08PA60VLD
Manufacturer:
NXP USA Inc.
Package:
Tray
Description:
IC MCU 8BIT 60KB FLASH 44LQFP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MC9S08PA60VLD is a microcontroller from NXP USA Inc., part of the 8-bit S08 family. This device is designed for a wide range of applications requiring high performance, low power consumption, and advanced peripheral features. The MC9S08PA60VLD is particularly suited for automotive, industrial, and consumer electronics due to its robust set of features and operating conditions.

Key Specifications

ParameterDescriptionMinTypicalMaxUnit
Central Processor Unit (CPU)8-Bit S08 CPU----
Bus FrequencyUp to 20 MHz--20 MHz-
Operating Voltage2.7 V to 5.5 V2.7 V-5.5 VV
Operating Temperature-40 °C to 105 °C-40 °C-105 °C°C
Flash MemoryUp to 60 KB--60 KB-
EEPROMUp to 256 bytes--256 bytes-
RAMUp to 4096 bytes--4096 bytes-
Interrupt/Reset SourcesUp to 40 sources--40-
Power ModesLow-power stop mode, reduced power wait mode----
Clock ModulesOscillator (XOSC), flex timer modulators (FTM), modulo timers (MTIM), real-time counter (RTC)----
Communication InterfacesSCI (UART), SPI, IIC (I2C)----

Key Features

  • 8-Bit S08 CPU: Operates up to 20 MHz at 2.7 V to 5.5 V across a temperature range of -40 °C to 105 °C.
  • Memory: Up to 60 KB flash, 256 bytes EEPROM, and 4096 bytes RAM.
  • Interrupt System: Supports up to 40 interrupt/reset sources and four-level nested interrupts.
  • Power-Saving Modes: Includes low-power stop mode and reduced power wait mode.
  • Clock Modules: Features oscillator (XOSC), flex timer modulators (FTM), modulo timers (MTIM), and real-time counter (RTC).
  • Communication Interfaces: Includes SCI (UART), SPI, and IIC (I2C) modules.
  • Peripheral Clock Enable: Allows disabling clocks to unused modules to reduce current consumption.

Applications

The MC9S08PA60VLD is versatile and can be used in various applications, including:

  • Automotive Systems: Suitable for body electronics, safety systems, and other automotive applications.
  • Industrial Control: Used in industrial automation, motor control, and other industrial applications requiring robust performance.
  • Consumer Electronics: Applicable in consumer devices that require low power consumption and advanced peripheral features.
  • Medical Devices: Can be used in medical devices that need reliable and efficient microcontroller solutions.

Q & A

  1. What is the maximum operating frequency of the MC9S08PA60VLD?
    The maximum operating frequency is up to 20 MHz.
  2. What is the operating voltage range of the MC9S08PA60VLD?
    The operating voltage range is 2.7 V to 5.5 V.
  3. How much flash memory does the MC9S08PA60VLD have?
    The MC9S08PA60VLD has up to 60 KB of flash memory.
  4. What types of communication interfaces are available on the MC9S08PA60VLD?
    The device features SCI (UART), SPI, and IIC (I2C) modules.
  5. Does the MC9S08PA60VLD support power-saving modes?
    Yes, it includes low-power stop mode and reduced power wait mode.
  6. What is the maximum temperature range for the MC9S08PA60VLD?
    The device operates within a temperature range of -40 °C to 105 °C.
  7. How many interrupt/reset sources does the MC9S08PA60VLD support?
    The device supports up to 40 interrupt/reset sources.
  8. What types of clock modules are available on the MC9S08PA60VLD?
    The device features oscillator (XOSC), flex timer modulators (FTM), modulo timers (MTIM), and real-time counter (RTC).
  9. Can the MC9S08PA60VLD be used in automotive applications?
    Yes, it is suitable for various automotive applications.
  10. Is the MC9S08PA60VLD suitable for industrial control systems?
    Yes, it is used in industrial automation and other industrial applications.

Product Attributes

Core Processor:S08
Core Size:8-Bit
Speed:20MHz
Connectivity:I²C, LINbus, SPI, UART/USART
Peripherals:LVD, POR, PWM, WDT
Number of I/O:37
Program Memory Size:60KB (60K x 8)
Program Memory Type:Flash
EEPROM Size:256 x 8
RAM Size:4K x 8
Voltage - Supply (Vcc/Vdd):2.7V ~ 5.5V
Data Converters:A/D 12x12b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 105°C (TA)
Mounting Type:Surface Mount
Package / Case:44-LQFP
Supplier Device Package:44-LQFP (10x10)
0 Remaining View Similar

In Stock

$3.87
29

Please send RFQ , we will respond immediately.

Same Series
MC9S08PA32VLH
MC9S08PA32VLH
IC MCU 8BIT 32KB FLASH 64LQFP
MC9S08PA60VQH
MC9S08PA60VQH
IC MCU 8BIT 60KB FLASH 64QFP
MC9S08PA32VLD
MC9S08PA32VLD
IC MCU 8BIT 32KB FLASH 44LQFP
MC9S08PA60VLH
MC9S08PA60VLH
IC MCU 8BIT 60KB FLASH 64LQFP
MC9S08PA32VLF
MC9S08PA32VLF
IC MCU 8BIT 32KB FLASH 48LQFP
MC9S08PA60VLC
MC9S08PA60VLC
IC MCU 8BIT 60KB FLASH 32LQFP
MC9S08PA32VQH
MC9S08PA32VQH
IC MCU 8BIT 32KB FLASH 64QFP
MC9S08PA32VLDR
MC9S08PA32VLDR
IC MCU 8BIT 32KB FLASH 44LQFP
MC9S08PA60VLF
MC9S08PA60VLF
IC MCU 8BIT 60KB FLASH 48LQFP
MC9S08PA60VLFR
MC9S08PA60VLFR
IC MCU 8BIT 60KB FLASH 48LQFP
MC9S08PA60VLD
MC9S08PA60VLD
IC MCU 8BIT 60KB FLASH 44LQFP
MC9S08PA60AVQH
MC9S08PA60AVQH
IC MCU 8BIT 60KB FLASH 64QFP

Similar Products

Part Number MC9S08PA60VLD MC9S08PT60VLD MC9S08PA60VLH MC9S08PA60VLDR MC9S08PA60VLF MC9S08PA60AVLD MC9S08PA60VLC
Manufacturer NXP USA Inc. NXP USA Inc. NXP USA Inc. NXP USA Inc. NXP USA Inc. NXP USA Inc. NXP USA Inc.
Product Status Not For New Designs Not For New Designs Not For New Designs Not For New Designs Not For New Designs Active Active
Core Processor S08 S08 S08 S08 S08 S08 S08
Core Size 8-Bit 8-Bit 8-Bit 8-Bit 8-Bit 8-Bit 8-Bit
Speed 20MHz 20MHz 20MHz 20MHz 20MHz 20MHz 20MHz
Connectivity I²C, LINbus, SPI, UART/USART I²C, LINbus, SPI, UART/USART I²C, LINbus, SPI, UART/USART I²C, LINbus, SPI, UART/USART I²C, LINbus, SPI, UART/USART I²C, LINbus, SPI, UART/USART I²C, LINbus, SPI, UART/USART
Peripherals LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT
Number of I/O 37 37 57 37 41 37 28
Program Memory Size 60KB (60K x 8) 60KB (60K x 8) 60KB (60K x 8) 60KB (60K x 8) 60KB (60K x 8) 60KB (60K x 8) 60KB (60K x 8)
Program Memory Type Flash Flash Flash Flash Flash Flash Flash
EEPROM Size 256 x 8 256 x 8 256 x 8 256 x 8 256 x 8 256 x 8 256 x 8
RAM Size 4K x 8 4K x 8 4K x 8 4K x 8 4K x 8 4K x 8 4K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Data Converters A/D 12x12b A/D 16x12b A/D 16x12b A/D 12x12b A/D 12x12b A/D 12x12b A/D 12x12b
Oscillator Type Internal Internal Internal Internal Internal Internal Internal
Operating Temperature -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 44-LQFP 44-LQFP 64-LQFP 44-LQFP 48-LQFP 44-LQFP 32-LQFP
Supplier Device Package 44-LQFP (10x10) 44-LQFP (10x10) 64-LQFP (10x10) 44-LQFP (10x10) 48-LQFP (7x7) 44-LQFP (10x10) 32-LQFP (7x7)
