Overview

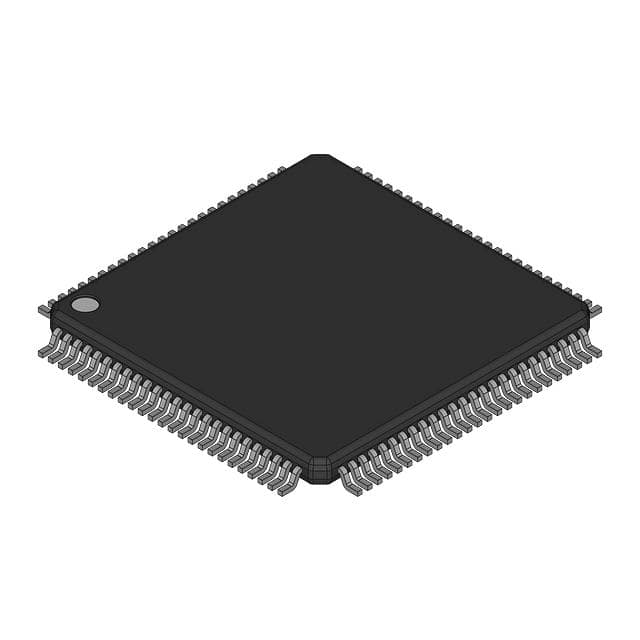

The LPC54606J256BD100551 is a microcontroller (MCU) from the LPC546xx family, manufactured by NXP USA Inc. This MCU combines high performance with power efficiency, making it an ideal choice for a variety of applications, particularly in the Internet of Things (IoT) and industrial automation sectors. The device is built around the 220 MHz Arm® Cortex®-M4 core, providing robust processing capabilities and multiple high-speed connectivity options.
Key Specifications
| Parameter | Value |
|---|---|
| Core | Arm® Cortex®-M4 |
| Frequency | Up to 220 MHz |
| Flash Memory | 256 KB |
| SRAM | 256 KB |
| Communication Interfaces | 21 interfaces including UART, SPI, I2C, I2S, USB, and more |
| Timers | Advanced timers including SCT, GPT, and WWDT |
| Power Management | Multiple power modes for low power consumption |
| Package | LQFP100 or TFBGA100 |
| Operating Temperature | -40°C to 105°C |
Key Features
- High-Performance Core: The Arm® Cortex®-M4 core at up to 220 MHz provides high processing power.
- Multiple Connectivity Options: 21 communication interfaces to centralize and aggregate data for IoT applications.
- Advanced Timers: Includes State Configurable Timer (SCT), General Purpose Timer (GPT), and Windowed Watchdog Timer (WWDT).
- Power Efficiency: Multiple power modes to minimize power consumption.
- Development Support: Supported by MCUXpresso, a comprehensive development environment.
Applications
The LPC54606J256BD100551 MCU is versatile and can be used in a variety of applications, including:
- Internet of Things (IoT): Centralizing and aggregating data in IoT devices.
- Industrial Automation: Control and monitoring systems in industrial environments.
- Consumer Electronics: Smart home devices, wearables, and other consumer electronics.
- Automotive Systems: In-vehicle infotainment, driver assistance systems, and more.
Q & A
- What is the core architecture of the LPC54606J256BD100551 MCU?
The core architecture is based on the Arm® Cortex®-M4. - What is the maximum operating frequency of the MCU?
The maximum operating frequency is up to 220 MHz. - How much flash memory does the LPC54606J256BD100551 have?
The MCU has 256 KB of flash memory. - What are the available package options for the LPC54606J256BD100551?
The MCU is available in LQFP100 or TFBGA100 packages. - What are the key communication interfaces supported by the MCU?
The MCU supports 21 communication interfaces including UART, SPI, I2C, I2S, USB, and more. - Is the MCU supported by any development environment?
Yes, it is supported by MCUXpresso. - What are the typical applications of the LPC54606J256BD100551 MCU?
Typical applications include IoT, industrial automation, consumer electronics, and automotive systems. - What is the operating temperature range of the MCU?
The operating temperature range is -40°C to 105°C. - Does the MCU have advanced timer capabilities?
Yes, it includes advanced timers such as SCT, GPT, and WWDT. - How does the MCU manage power consumption?
The MCU has multiple power modes to minimize power consumption.
