Overview
The LPC4337JET100551 is a 32-bit microcontroller from NXP USA Inc., featuring a dual-core architecture with Arm Cortex-M4 and Cortex-M0 cores. This microcontroller is designed to provide high performance and versatility, making it suitable for a wide range of applications. It includes up to 1 MB of flash memory and 136 kB of SRAM, ensuring ample storage and processing capabilities. The device also supports various peripherals such as Ethernet, two high-speed USB ports, LCD, and EMC, enhancing its connectivity and interface options.
Key Specifications
| Parameter | Specification |
|---|---|
| Core | Dual-core Arm Cortex-M4/M0 |
| Flash Memory | Up to 1 MB |
| SRAM | 136 kB |

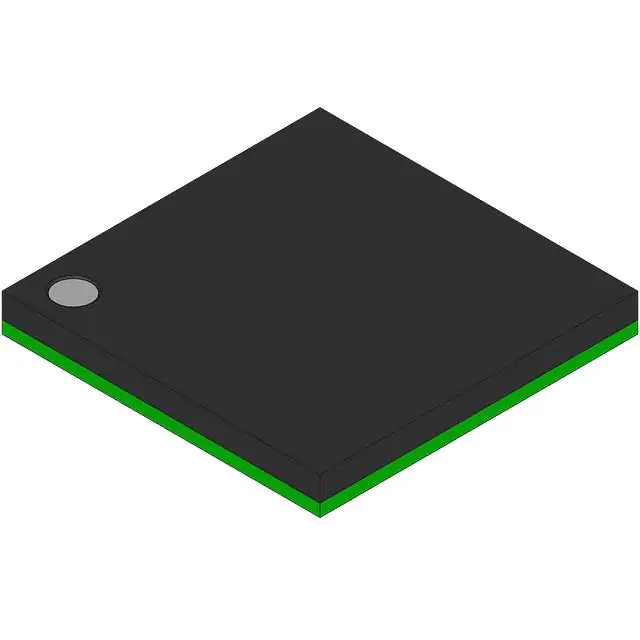

| Package | 100-TFBGA (9x9 mm) |
| Peripherals | Ethernet, two High-speed USB, LCD, EMC |
| Environmental Compliance | PbFree, EU RoHS compliant, Halogen Free |
Key Features
- Dual-core architecture with Arm Cortex-M4 and Cortex-M0 cores for high performance and low power consumption.
- Up to 1 MB of flash memory and 136 kB of SRAM for extensive storage and processing needs.
- Integrated Ethernet and two high-speed USB ports for enhanced connectivity.
- Support for LCD and EMC, making it suitable for display and electromagnetic compatibility applications.
- Compliance with PbFree, EU RoHS, and Halogen Free standards, ensuring environmental sustainability.
Applications
- Industrial automation and control systems.
- Medical devices requiring high precision and reliability.
- Automotive systems, including infotainment and safety features.
- Consumer electronics, such as smart home devices and appliances.
- IoT applications requiring robust connectivity and processing capabilities.
Q & A
- What is the core architecture of the LPC4337JET100551?
The LPC4337JET100551 features a dual-core architecture with Arm Cortex-M4 and Cortex-M0 cores.
- How much flash memory does the LPC4337JET100551 have?
The device has up to 1 MB of flash memory.
- What is the SRAM capacity of the LPC4337JET100551?
The SRAM capacity is 136 kB.
- What package type is used for the LPC4337JET100551?
The device is packaged in a 100-TFBGA (9x9 mm) package.
- Does the LPC4337JET100551 support Ethernet and USB?
Yes, it supports Ethernet and two high-speed USB ports.
-
Yes, it is PbFree, EU RoHS compliant, and Halogen Free.
- What are some typical applications for the LPC4337JET100551?
It is used in industrial automation, medical devices, automotive systems, consumer electronics, and IoT applications.
- How does the LPC4337JET100551 support display applications?
The device supports LCD, making it suitable for display applications.
- What is the significance of EMC support in the LPC4337JET100551?
The EMC support ensures electromagnetic compatibility, which is crucial for reliable operation in various environments.
- Where can I find detailed specifications and datasheets for the LPC4337JET100551?
Detailed specifications and datasheets can be found on the official NXP website and other authorized distributors like Digi-Key, Mouser, and Avnet.
