Overview
The LPC2460FET208,551 is a flashless 16-bit/32-bit microcontroller designed by NXP Semiconductors. It is based on the ARM7TDMI-S CPU core, which supports both 16-bit and 32-bit instruction sets, allowing for optimization of code size and performance. This microcontroller is particularly suited for multi-purpose communication applications due to its integrated peripherals and communication interfaces.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | ARM7TDMI-S |
| Instruction Set | 16-bit/32-bit ARM and Thumb |
| Operating Voltage | 3 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |

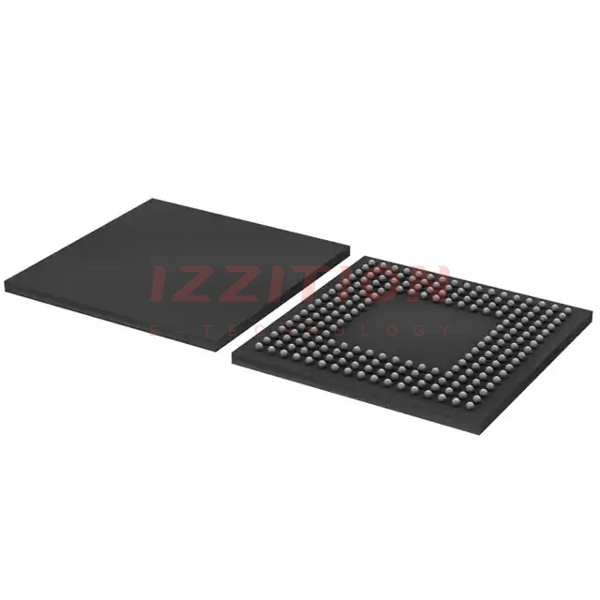

| Package Type | 208-TFBGA (15x15) |
| Speed | 72 MHz |
| RAM Size | 96K x 8 |
| Program Memory Type | ROMless |
| Number of I/O | 160 |
| Connectivity | CAN, EBI/EMI, Ethernet, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG |
| Data Converters | A/D 8x10b; D/A 1x10b |
Key Features
- Flashless design with support for external memory interfaces
- Integrated 10/100 Ethernet Media Access Controller (MAC)
- USB full-speed device/host/OTG controller with 4 kB of endpoint RAM
- Two Controller Area Network (CAN) channels
- Four UARTs and multiple SPI, I²C, and SSP interfaces
- Advanced Vectored Interrupt Controller (VIC) supporting up to 32 vectored interrupts
- General Purpose DMA controller (GPDMA) on AHB
- Real-time debug interfaces including JTAG and embedded trace
Applications
The LPC2460FET208,551 is ideal for various applications requiring advanced communication capabilities, such as:
- Industrial automation and control systems
- Automotive systems, especially those requiring CAN and Ethernet interfaces
- Medical devices with complex communication needs
- Consumer electronics requiring multiple interface support
- Embedded systems in general, where high performance and flexibility are necessary
Q & A
- What is the core processor of the LPC2460FET208,551?
The core processor is the ARM7TDMI-S. - What are the supported instruction sets?
The microcontroller supports both 16-bit and 32-bit ARM and Thumb instructions. - What is the operating voltage range of the LPC2460FET208,551?
The operating voltage range is 3 V ~ 3.6 V. - What is the package type of the LPC2460FET208,551?
The package type is 208-TFBGA (15x15). - What is the maximum operating speed of the LPC2460FET208,551?
The maximum operating speed is 72 MHz. - Does the LPC2460FET208,551 have integrated Ethernet and CAN interfaces?
Yes, it includes a 10/100 Ethernet MAC and two CAN channels. - What types of data converters are available on the LPC2460FET208,551?
The microcontroller includes A/D 8x10b and D/A 1x10b data converters. - What is the purpose of the General Purpose DMA controller (GPDMA) on the LPC2460FET208,551?
The GPDMA can be used with the SSP, I²S, and other peripherals on the AHB. - Does the LPC2460FET208,551 support real-time debugging?
Yes, it includes real-time debug interfaces such as JTAG and embedded trace. - What are some typical applications of the LPC2460FET208,551?
It is used in industrial automation, automotive systems, medical devices, consumer electronics, and other embedded systems requiring advanced communication capabilities.
