Overview

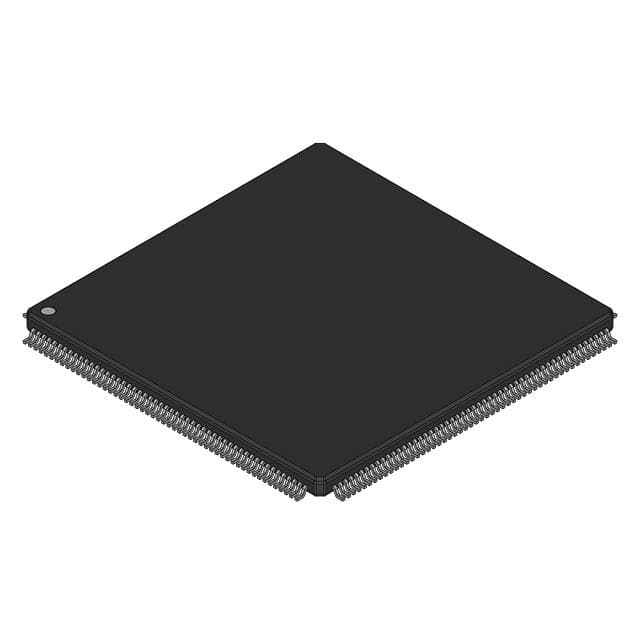

The LPC1785FBD208 is a 32-bit microcontroller from NXP Semiconductors, based on the ARM Cortex-M3 core. This microcontroller is designed for embedded applications that require a high level of integration and low power consumption. It operates at frequencies up to 120 MHz, making it suitable for a variety of applications where performance and power efficiency are critical.
Key Specifications
| Parameter | Value |
|---|---|
| Processor Core | ARM Cortex-M3 |
| Operating Frequency | Up to 120 MHz |
| Flash Memory | Up to 512 kB |
| SRAM | Up to 96 kB |
| Package Type | LQFP-208, TFBGA-208 |
| Power Consumption | Low power dissipation |
| Peripherals | USB, CAN, SPI, I2C, UART, ADC, DAC, etc. |
Key Features
- High-performance ARM Cortex-M3 processor core
- Low power consumption for extended battery life in portable applications
- High level of integration with various peripherals such as USB, CAN, SPI, I2C, UART, ADC, and DAC
- Support for multiple package types including LQFP-208 and TFBGA-208
- Advanced security features for secure data processing and communication
Applications
- Industrial automation and control systems
- Automotive systems, including infotainment and driver assistance
- Medical devices requiring high precision and low power consumption
- Consumer electronics such as smart home devices and wearables
- IoT devices and smart sensors
Q & A
- What is the processor core of the LPC1785FBD208?
The processor core is the ARM Cortex-M3. - What is the maximum operating frequency of the LPC1785FBD208?
The maximum operating frequency is up to 120 MHz. - How much flash memory does the LPC1785FBD208 have?
The LPC1785FBD208 has up to 512 kB of flash memory. - What are the available package types for the LPC1785FBD208?
The available package types are LQFP-208 and TFBGA-208. - What are some of the key peripherals supported by the LPC1785FBD208?
The key peripherals include USB, CAN, SPI, I2C, UART, ADC, and DAC. - What are some typical applications of the LPC1785FBD208?
Typical applications include industrial automation, automotive systems, medical devices, consumer electronics, and IoT devices. - Is the LPC1785FBD208 suitable for low-power applications?
Yes, the LPC1785FBD208 is designed for low power consumption, making it suitable for battery-powered devices. - Does the LPC1785FBD208 support advanced security features?
Yes, the LPC1785FBD208 includes advanced security features for secure data processing and communication. - Where can I find detailed design files and documentation for the LPC1785FBD208?
Detailed design files and documentation can be found on the NXP Semiconductors website. - What is the significance of the ARM Cortex-M3 core in the LPC1785FBD208?
The ARM Cortex-M3 core provides high performance and efficiency, making it ideal for demanding embedded applications.
