Overview

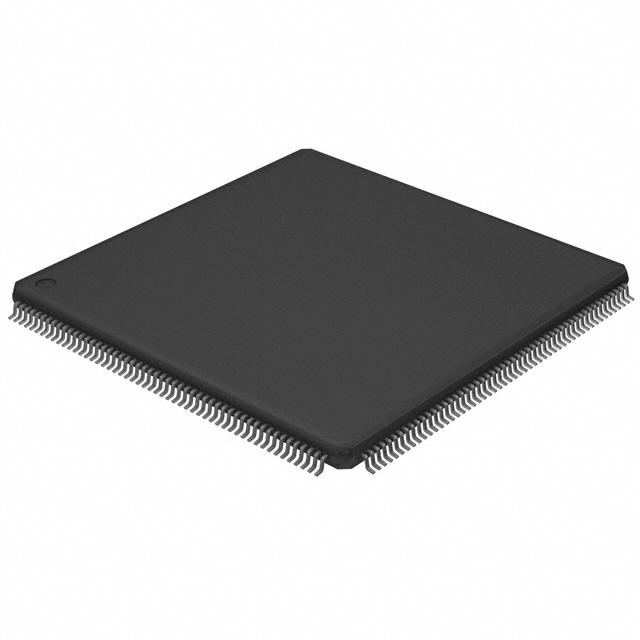

The LPC1778FBD208K is a high-performance 32-bit microcontroller from NXP Semiconductors, based on the Arm Cortex-M3 core. This microcontroller is part of the LPC1700 series and is designed for embedded applications requiring a high level of integration and low power consumption. It operates at a frequency of up to 120 MHz and is packaged in a LQFP208 package, making it suitable for a wide range of applications.
Key Specifications
| Specification | Value |
|---|---|
| Processor Core | Arm Cortex-M3 |
| Operating Frequency | Up to 120 MHz |
| Flash Memory | 512 kB |
| SRAM | 96 kB |
| Package Type | LQFP208 |
| Peripheral Interfaces | Ethernet, USB |
| Environmental Compliance | PbFree, EU RoHS, Halogen Free, REACH SVHC compliant |
Key Features
- High-performance Arm Cortex-M3 core with up to 120 MHz operating frequency.
- 512 kB of flash memory and 96 kB of SRAM.
- Integrated Ethernet and USB interfaces for robust communication capabilities.
- Low power consumption, making it suitable for battery-powered devices.
- Compliance with PbFree, EU RoHS, Halogen Free, and REACH SVHC standards.
Applications
The LPC1778FBD208K is versatile and can be used in various applications, including:
- Industrial control systems: Due to its integrated Ethernet and USB, it is ideal for networked control systems.
- Medical devices: Its low power consumption and high performance make it suitable for medical devices.
- Automotive systems: It can be used in automotive applications requiring high reliability and performance.
- Consumer electronics: Suitable for smart home devices, wearables, and other consumer electronics requiring advanced processing capabilities.
Q & A
- What is the processor core of the LPC1778FBD208K?
The processor core is the Arm Cortex-M3. - What is the maximum operating frequency of the LPC1778FBD208K?
The maximum operating frequency is up to 120 MHz. - How much flash memory and SRAM does the LPC1778FBD208K have?
The LPC1778FBD208K has 512 kB of flash memory and 96 kB of SRAM. - What package type is the LPC1778FBD208K available in?
The LPC1778FBD208K is available in the LQFP208 package. - Does the LPC1778FBD208K have integrated Ethernet and USB?
Yes, it has integrated Ethernet and USB interfaces.
Yes, it is PbFree, EU RoHS, Halogen Free, and REACH SVHC compliant.- What are some typical applications of the LPC1778FBD208K?
Typical applications include industrial control systems, medical devices, automotive systems, and consumer electronics. - Where can I find design files and models for the LPC1778FBD208K?
Design files and models can be found on the NXP Semiconductors website under the product page for LPC1778FBD208K. - Is the LPC1778FBD208K suitable for battery-powered devices?
Yes, it is suitable due to its low power consumption. - Can the LPC1778FBD208K be used in networked control systems?
Yes, it is ideal for networked control systems due to its integrated Ethernet and USB interfaces.
