Overview
The LPC1788FBD208K is a high-performance 32-bit microcontroller from NXP USA Inc., based on the ARM Cortex-M3 core. This microcontroller is designed for embedded applications and features a high level of integration along with low power consumption. It operates at frequencies up to 120 MHz, making it suitable for a wide range of applications that require robust processing capabilities and efficient power management.
Key Specifications
| Parameter | Specification |
|---|---|
| Core | ARM Cortex-M3 |
| Flash Memory | 512 kB |
| SRAM | 96 kB |

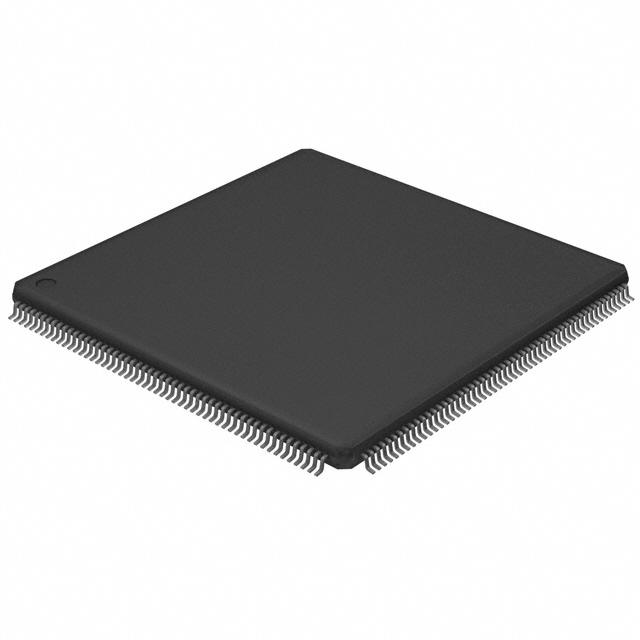

| Package | LQFP208 (plastic low profile quad flat package, 208 leads, body 28 x 28 x 1.4 mm) |
| Operating Frequency | Up to 120 MHz |
| Peripherals | Ethernet, USB, and various other interfaces |
| Environmental Compliance | EU RoHS Compliant, Lead Free (Pb), Halogen Free |
| Moisture Sensitivity Level | Level 3 |
| Peak Package Temperature | 260°C for Pb-free soldering, 225°C for SnPb soldering |
Key Features
- High-Performance Core: Based on the ARM Cortex-M3 core, offering high processing capabilities.
- Memory and Storage: 512 kB of flash memory and 96 kB of SRAM.
- Low Power Consumption: Designed to operate efficiently at frequencies up to 120 MHz.
- Peripheral Interfaces: Includes Ethernet, USB, and various other interfaces for comprehensive connectivity.
- Environmental Compliance: Compliant with EU RoHS, Lead Free (Pb), and Halogen Free standards.
Applications
- Automobiles: Used in auto-safety systems, engine and vehicle-performance monitoring systems, and engine control modules.
- Robotics: Serves as the main brain of robots, controlling actuators and sensors.
- Medical Equipment: Utilized in X-ray machines, ECG machines, ultrasound systems, imaging systems, cardiac pacemakers, and drug-delivery systems.
- Home Automation: Used in automated lighting systems, thermostats, HVAC systems, and energy-management systems.
- Smart Electronics: Found in consumer electronic devices such as smartphones, TVs, gaming consoles, dishwashers, refrigerators, and microwave ovens.
Q & A
- What is the core architecture of the LPC1788FBD208K?
The LPC1788FBD208K is based on the ARM Cortex-M3 core.
- How much flash and SRAM memory does the LPC1788FBD208K have?
The LPC1788FBD208K has 512 kB of flash memory and 96 kB of SRAM.
- What is the maximum operating frequency of the LPC1788FBD208K?
The maximum operating frequency is up to 120 MHz.
- What package type is the LPC1788FBD208K available in?
The LPC1788FBD208K is available in an LQFP208 package.
- Is the LPC1788FBD208K compliant with environmental regulations?
Yes, it is compliant with EU RoHS, Lead Free (Pb), and Halogen Free standards.
- What are some common applications of the LPC1788FBD208K?
Common applications include automobiles, robotics, medical equipment, home automation, and smart electronics.
- What peripherals does the LPC1788FBD208K support?
The LPC1788FBD208K supports Ethernet, USB, and various other interfaces.
- What is the moisture sensitivity level of the LPC1788FBD208K?
The moisture sensitivity level is Level 3.
- What is the peak package temperature for Pb-free soldering?
The peak package temperature for Pb-free soldering is 260°C.
- Is the LPC1788FBD208K suitable for high-performance embedded applications?
Yes, it is designed for high-performance embedded applications due to its robust processing capabilities and efficient power management.
