Overview
The LPC1517JBD64 is a 32-bit microcontroller from NXP Semiconductors, based on the ARM Cortex-M3 core. This microcontroller is designed for motion control and general-purpose applications, offering a free programmable CPU. It features up to 256 kB of flash memory and 36 kB of SRAM, making it suitable for a wide range of embedded systems.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Core | ARM Cortex-M3 |
| Flash Memory | Up to 256 kB |
| SRAM | 36 kB |
| Supply Voltage | 2.4 V to 3.6 V |
| ADC | 2 |

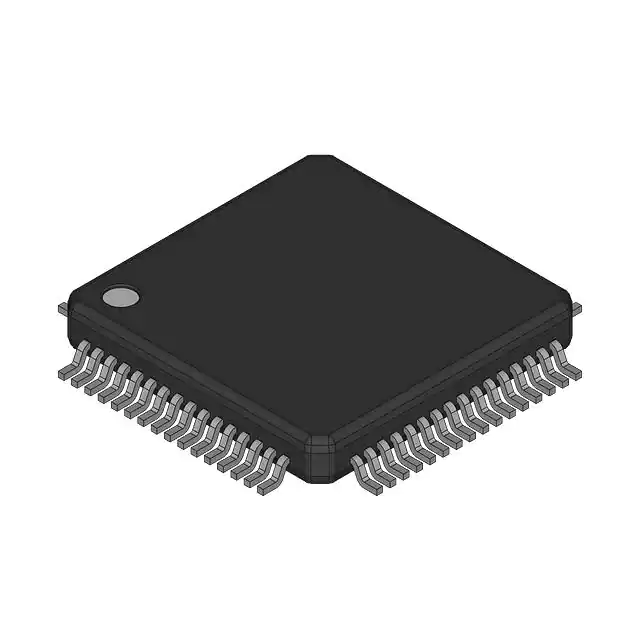

| Package Type | LQFP64 (SOT314-2) |
| Weight | 365.989190 mg |
| Compliance | EU RoHS Compliant, Lead Free, Halogen Free |
Key Features
- ARM Cortex-M3 processor core with up to 100 MHz CPU clock frequency
- Up to 256 kB of flash memory and 36 kB of SRAM
- Dual 10-bit ADCs with multiple analog inputs
- Multiple communication interfaces including UART, SPI, and I2C
- Support for various power modes to optimize power consumption
- Compliant with EU RoHS, ELV, and China RoHS directives
Applications
- Motion control systems, including motor control and robotics
- Industrial automation and control systems
- Consumer electronics requiring advanced microcontroller capabilities
- Automotive systems, particularly for infotainment and body control modules
- Medical devices and healthcare equipment
Q & A
- What is the core architecture of the LPC1517JBD64 microcontroller?
The LPC1517JBD64 is based on the ARM Cortex-M3 core.
- How much flash memory does the LPC1517JBD64 have?
The LPC1517JBD64 has up to 256 kB of flash memory.
- What is the operating voltage range of the LPC1517JBD64?
The operating voltage range is from 2.4 V to 3.6 V.
- Is the LPC1517JBD64 compliant with RoHS directives?
- What package type is the LPC1517JBD64 available in?
The LPC1517JBD64 is available in an LQFP64 (SOT314-2) package.
- What are some typical applications of the LPC1517JBD64?
Typical applications include motion control, industrial automation, consumer electronics, automotive systems, and medical devices.
- How much SRAM does the LPC1517JBD64 have?
The LPC1517JBD64 has 36 kB of SRAM.
- Does the LPC1517JBD64 support multiple communication interfaces?
- Is the LPC1517JBD64 suitable for high-performance applications?
- Where can I find detailed specifications and datasheets for the LPC1517JBD64?
Detailed specifications and datasheets can be found on the NXP Semiconductors website and other electronic component databases like Digi-Key and AllDataSheet.
