Overview
The FS32K116LIT0VFMR is a 32-bit single-core microcontroller from NXP USA Inc., part of the S32K family. This microcontroller is based on the ARM® Cortex®-M0+ core and is designed for a variety of embedded applications. It features a robust set of peripherals and connectivity options, making it suitable for automotive, industrial, and other demanding environments.
Key Specifications
| Attribute Name | Attribute Value |
|---|---|
| Core Processor | ARM® Cortex®-M0+ 32-Bit Single-Core |
| Speed | 48MHz |
| Program Memory Size | 128KB (128K x 8) FLASH |
| EEPROM Size | Not specified |
| RAM Size | Not specified, but typically around 16KB for similar models |
| Connectivity | CANbus, FlexIO, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | Not specified, but typically around 32 for similar models |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x12b SAR; D/A 1x8b (for similar models) |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |

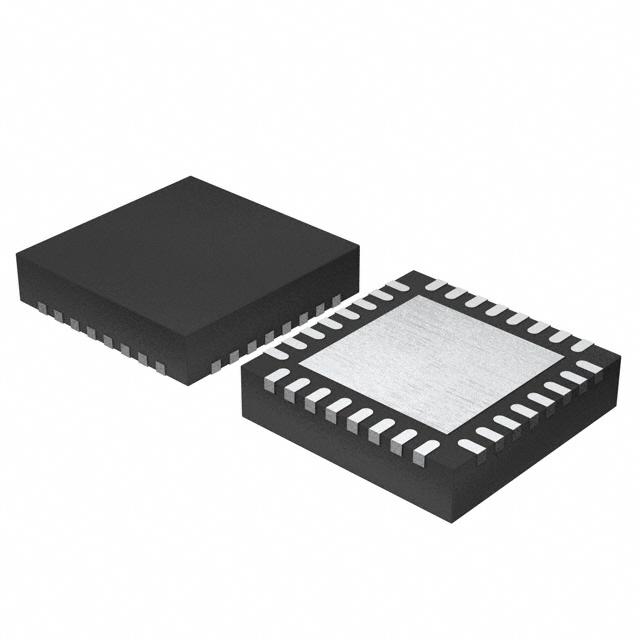

| Package / Case | 32-HVQFN (5x5) |
Key Features
- Low Power Consumption: Designed to operate efficiently with low power requirements.
- Enhanced Connectivity: Features CANbus, FlexIO, I2C, LINbus, SPI, and UART/USART for robust communication capabilities.
- Robust Peripherals: Includes DMA, PWM, and WDT for complex functionalities.
- High Temperature Tolerance: Operates reliably in extreme temperature conditions from -40°C to 105°C.
- Flexible Power Requirements: Supports a wide voltage range of 2.7V to 5.5V.
- High Integration Capability: Offers multiple I/O ports and communication interfaces, facilitating integration in various applications.
Applications
- Automotive: Suitable for various automotive applications due to its robust features and temperature tolerance.
- Industrial Control: Ideal for industrial control systems requiring reliable and efficient microcontrollers.
- Home Automation: Can be used in home automation systems for smart home devices.
- Internet of Things (IoT): Applicable in IoT devices that require low power consumption and robust connectivity.
Q & A
- What is the core processor of the FS32K116LIT0VFMR?
The core processor is the ARM® Cortex®-M0+ 32-Bit Single-Core.
- What is the maximum operating speed of the FS32K116LIT0VFMR?
The maximum operating speed is 48MHz.
- How much program memory does the FS32K116LIT0VFMR have?
The FS32K116LIT0VFMR has 128KB (128K x 8) of FLASH program memory.
- What are the primary connectivity options available on the FS32K116LIT0VFMR?
The primary connectivity options include CANbus, FlexIO, I2C, LINbus, SPI, and UART/USART.
- What is the operating temperature range of the FS32K116LIT0VFMR?
The operating temperature range is from -40°C to 105°C.
- What type of package does the FS32K116LIT0VFMR come in?
The FS32K116LIT0VFMR comes in a 32-HVQFN (5x5) package.
- Is the FS32K116LIT0VFMR suitable for automotive applications?
Yes, it is suitable for automotive applications due to its robust features and temperature tolerance.
- What are the power supply requirements for the FS32K116LIT0VFMR?
The power supply requirements are 2.7V to 5.5V.
- Does the FS32K116LIT0VFMR have any integrated safety mechanisms?
Yes, it includes integrated safety mechanisms such as a Watchdog Timer (WDT).
- Is the FS32K116LIT0VFMR available in tape and reel packaging?
Yes, it is available in tape and reel packaging, facilitating mass assembly processes.
