Overview

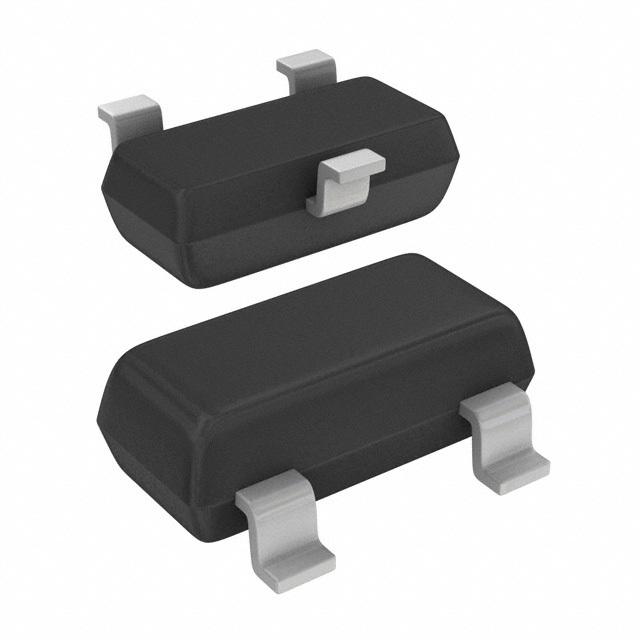

The BZX84-B15/LF1VL is a low-power voltage regulator diode produced by NXP USA Inc. This component is part of the BZX84 series, which is known for its high precision and reliability in voltage regulation. The diode is packaged in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package, making it suitable for a wide range of electronic applications where space is limited.
The BZX84-B15/LF1VL is designed to provide stable voltage regulation with a nominal Zener voltage of 15V and a tolerance of ±2%. This makes it an ideal choice for general regulation functions in various electronic devices.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Type Number | BZX84-B15 | - |
| Package | SOT23 (TO-236AB) | - |
| Voltage - Zener (Nominal) | 15 | V |
| Tolerance | ±2% | - |
| Total Power Dissipation | ≤250 | mW |
| Non-repetitive Peak Reverse Power Dissipation | ≤40 | W |
| Operating Temperature Range | -65 to +150 | °C |
| Maximum Junction Temperature | 150 | °C |
| Moisture Sensitivity Level | 1 (Unlimited) | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | - |
Key Features
- High Precision Voltage Regulation: The BZX84-B15/LF1VL offers a nominal Zener voltage of 15V with a tight tolerance of ±2%, ensuring stable voltage regulation.
- Low Power Dissipation: With a total power dissipation of ≤250 mW, this diode is suitable for low-power applications.
- Compact Packaging: The SOT23 (TO-236AB) package is small and surface-mountable, making it ideal for space-constrained designs.
- Wide Operating Temperature Range: The diode operates over a temperature range of -65 to +150 °C, making it versatile for various environments.
- ESD Capability: The diode has ESD capability according to AEC-Q101 standards, enhancing its robustness against electrostatic discharge.
- RoHS Compliant: The component is lead-free and RoHS compliant, aligning with environmental regulations.
Applications
The BZX84-B15/LF1VL is used in a wide range of electronic devices due to its reliability and precision. Some common applications include:
- Automotive Systems: Used in various automotive electronics for voltage regulation and protection.
- Industrial Equipment: Employed in industrial control systems, power supplies, and other equipment requiring stable voltage regulation.
- Consumer Electronics: Found in consumer devices such as smartphones, televisions, and computers for voltage regulation and protection.
- Medical Devices: Used in medical equipment where precise voltage regulation is critical.
- Power Supplies: Utilized in power supply units to regulate output voltages.
Q & A
- What is the nominal Zener voltage of the BZX84-B15/LF1VL?
The nominal Zener voltage is 15V.
- What is the tolerance of the BZX84-B15/LF1VL?
The tolerance is ±2%.
- What is the maximum total power dissipation of the BZX84-B15/LF1VL?
The maximum total power dissipation is ≤250 mW.
- What is the package type of the BZX84-B15/LF1VL?
The package type is SOT23 (TO-236AB).
- What is the operating temperature range of the BZX84-B15/LF1VL?
The operating temperature range is -65 to +150 °C.
- Is the BZX84-B15/LF1VL RoHS compliant?
Yes, the component is lead-free and RoHS compliant.
- What is the moisture sensitivity level of the BZX84-B15/LF1VL?
The moisture sensitivity level is 1 (Unlimited).
- What are some common applications of the BZX84-B15/LF1VL?
Common applications include automotive systems, industrial equipment, consumer electronics, medical devices, and power supplies.
- Does the BZX84-B15/LF1VL have ESD protection?
Yes, it has ESD capability according to AEC-Q101 standards.
- Where can I find detailed technical information and datasheets for the BZX84-B15/LF1VL?
Detailed technical information and datasheets can be found on the official NXP website, as well as through distributors like Digi-Key and Ariat-Tech.
