Overview

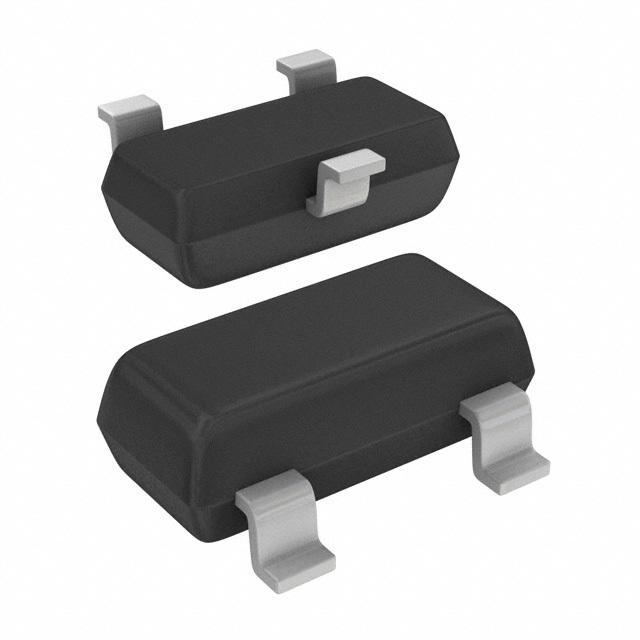

The BZX84-B10/LF1VL is a silicon planar Zener diode produced by NXP USA Inc. This component is part of the BZX84 series, known for its high reliability and precision in voltage regulation. The BZX84-B10/LF1VL is specifically designed to provide a stable voltage reference in a variety of electronic circuits.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Zener Voltage (VZ) | 10 V | V |
| Test Current (IZT) | 5 mA | mA |
| Reverse Leakage Current (IR) | 0.5 μA | μA |
| Dynamic Resistance (ZZ) | 39.2 Ω (at IZT1) | Ω |
| Temperature Coefficient (αVZ) | -9 to -4 × 10^-4/°C | 10^-4/°C |
| Operating Temperature Range | -55 to +150 °C | °C |
| Storage Temperature Range | -65 to +150 °C | °C |
| Package Type | SOT-23 | |
| Power Dissipation | 250 mW | mW |
| ESD Capability | Human Body Model: > 8 kV, Machine Model: > 800 V |
Key Features
- Silicon planar Zener diodes with high stability and reliability.
- Zener voltages graded according to the international E24 standard.
- AEC-Q101 qualified for automotive applications.
- ESD capability according to AEC-Q101: human body model > 8 kV, machine model > 800 V.
- RoHS-compliant and available in commercial and automotive grades.
- Low dynamic resistance and tight voltage tolerance (±2% or ±5%).
Applications
The BZX84-B10/LF1VL is suitable for a wide range of applications, including voltage regulation, voltage reference, and overvoltage protection in various electronic circuits. It is particularly useful in automotive systems due to its AEC-Q101 qualification. Other applications include industrial control systems, consumer electronics, and medical devices where stable voltage references are critical.
Q & A
- What is the Zener voltage of the BZX84-B10/LF1VL? The Zener voltage (VZ) of the BZX84-B10/LF1VL is 10 V.
- What is the test current for the BZX84-B10/LF1VL? The test current (IZT) is 5 mA.
- Is the BZX84-B10/LF1VL AEC-Q101 qualified? Yes, the BZX84-B10/LF1VL is AEC-Q101 qualified, making it suitable for automotive applications.
- What is the operating temperature range of the BZX84-B10/LF1VL? The operating temperature range is -55 to +150 °C.
- What is the package type of the BZX84-B10/LF1VL? The package type is SOT-23.
- What is the power dissipation of the BZX84-B10/LF1VL? The power dissipation is 250 mW.
- Is the BZX84-B10/LF1VL RoHS-compliant? Yes, the BZX84-B10/LF1VL is RoHS-compliant.
- What are the ESD capabilities of the BZX84-B10/LF1VL? The ESD capabilities are > 8 kV for the human body model and > 800 V for the machine model.
- What are some common applications of the BZX84-B10/LF1VL? Common applications include voltage regulation, voltage reference, and overvoltage protection in automotive, industrial, consumer electronics, and medical devices.
- What is the storage temperature range for the BZX84-B10/LF1VL? The storage temperature range is -65 to +150 °C.
