Overview
The BZX84-B13/LF1VL is a single Zener diode produced by NXP USA Inc. This component is designed for various voltage regulation and protection applications. It is part of the BZX84 series, known for its reliability and wide range of voltage options. The BZX84-B13/LF1VL is specifically rated for a Zener voltage of 13 volts, making it suitable for a variety of electronic circuits requiring stable voltage references or overvoltage protection.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Zener Voltage | 13 | V |
| Tolerance | ±2% | |
| Power Dissipation | 250 | mW |

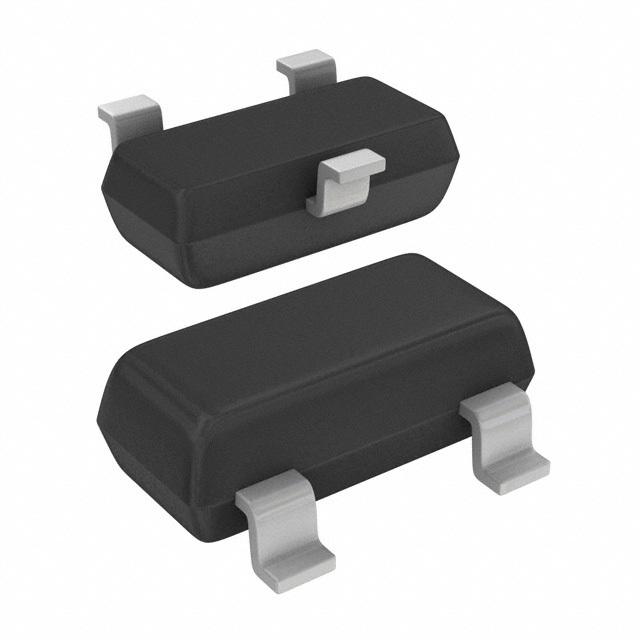

| Package Type | SOT-23 (TO-236AB) | |
| Operating Temperature Range | -65°C to 150°C | |
| Leakage Current at Reverse Voltage | 100 nA @ 8 V | |
| Dynamic Resistance | 20 Ohm |
Key Features
- Surface mount package (SOT-23/TO-236AB) for compact design and ease of mounting.
- High accuracy with ±2% tolerance, ensuring reliable voltage regulation.
- Low power dissipation of 250 mW, suitable for a wide range of applications.
- Wide operating temperature range from -65°C to 150°C, making it versatile for various environments.
- Low leakage current, minimizing unnecessary power consumption.
Applications
- Overvoltage protection in electronic circuits.
- General voltage regulation and stabilization.
- Voltage reference functions in analog circuits.
- Clamping and clipping circuits to limit voltage levels.
Q & A
- What is the Zener voltage of the BZX84-B13/LF1VL?
The Zener voltage of the BZX84-B13/LF1VL is 13 volts.
- What is the tolerance of the BZX84-B13/LF1VL?
The tolerance of the BZX84-B13/LF1VL is ±2%.
- What is the power dissipation of the BZX84-B13/LF1VL?
The power dissipation of the BZX84-B13/LF1VL is 250 mW.
- What package type does the BZX84-B13/LF1VL use?
The BZX84-B13/LF1VL uses the SOT-23 (TO-236AB) package type.
- What is the operating temperature range of the BZX84-B13/LF1VL?
The operating temperature range of the BZX84-B13/LF1VL is from -65°C to 150°C.
- What is the leakage current at reverse voltage for the BZX84-B13/LF1VL?
The leakage current at reverse voltage for the BZX84-B13/LF1VL is 100 nA @ 8 V.
- What is the dynamic resistance of the BZX84-B13/LF1VL?
The dynamic resistance of the BZX84-B13/LF1VL is 20 Ohm.
- What are common applications for the BZX84-B13/LF1VL?
Common applications include overvoltage protection, general voltage regulation, voltage reference functions, and clamping and clipping circuits.
- Why is the BZX84-B13/LF1VL suitable for surface mount applications?
The BZX84-B13/LF1VL is suitable for surface mount applications due to its compact SOT-23 package and ease of mounting.
- How does the BZX84-B13/LF1VL ensure reliable voltage regulation?
The BZX84-B13/LF1VL ensures reliable voltage regulation through its high accuracy with ±2% tolerance.
